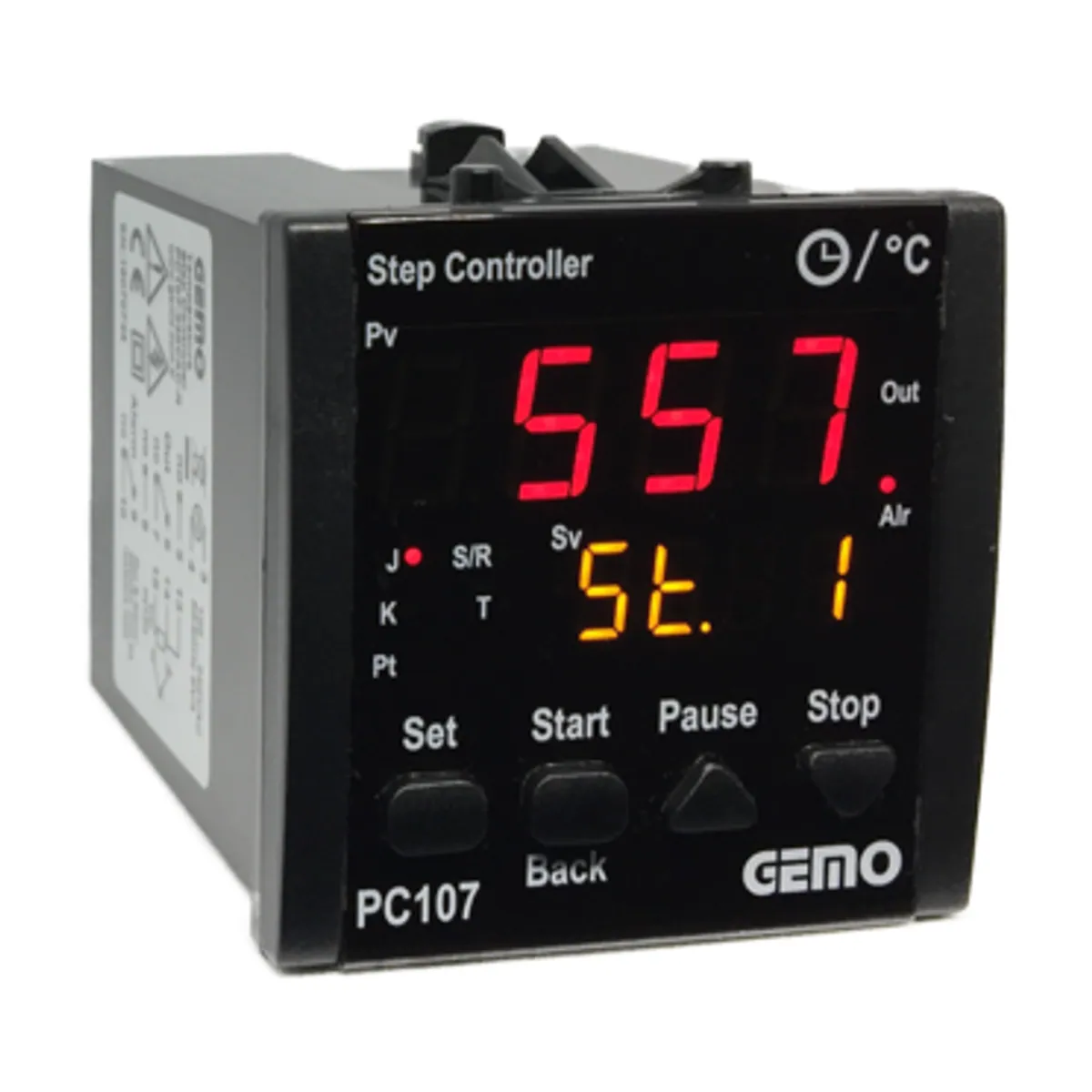

GEMO PC107-230VAC-S Auto-Tune PID Temperature Step Controller
- Brand: GEMO
- SKU: PC107-230VAC-S
- MPN: PC107-230VAC-S
- Price: 2145.05 TRY + VAT · incl. VAT 2574.06 TRY
- Availability: In stock
- PID Thermostats
- GEMO PID Thermostats
- Selection guide: PID Thermostats Selection Guide: Technical Criteria and Engineering Practice
GEMO PC107-230VAC-S is an Auto-Tune PID / On-Off temperature step controller with 72x72 mm panel size. Operates on 100..240Vac supply, has an SSR control output and supports J, K, S and Pt100 sensor inputs.
| Supply Type | 100..240 VAC |
|---|---|
| Size Type | 72x72 |
| Sensor Input Type | J, K, S, Pt100 |
| Display | 2x4 Dijit, PV ve SV |
| Control Type | Auto Tune PID / On-Off |
| Panel Cut-out | 68x68 mm |
| Control Output | SSR |
| Alarm Output | Röle (NA + NK), 250VAC, 2A, Rezistif load |
| Resolution | ± 1 °C veya ± 0.1 °C |
| Accuracy | ± % 0.3 (Tam Skalanın) |
| Timing Accuracy | ± % 1.5 (ayarlanan zaman değerinin) |
| Number of Program Steps | Maksimum 20 adım (seçilebilir), maksimum 18 saat/adım zaman ayarı |
| Control Period | 4 .. 200 sn |
| Power Consumption | < 6VA |
| Operating Temperature | 0 .. 50 °C |
| Storage Temperature | -10 °C .. 60 °C (buzlanma olmadan) |
| Relative Humidity | 30 °C'ye kadar %80, sonra doğrusal azalarak 50 °C'de %50 (yoğunlaşmasız) |
| Operating Altitude | < 2000 m |
| Standards | EMC: EN 61000-6-1, EN 61000-6-3; Güvenlik: EN 61010-1 |
| Pollution Degree | 1 |
| IP Rating | IP20 |
| Tightening Torque | en fazla 0.5 N.m (klemens) |
| Mounting Type | Panel tipi sabit montaj |
