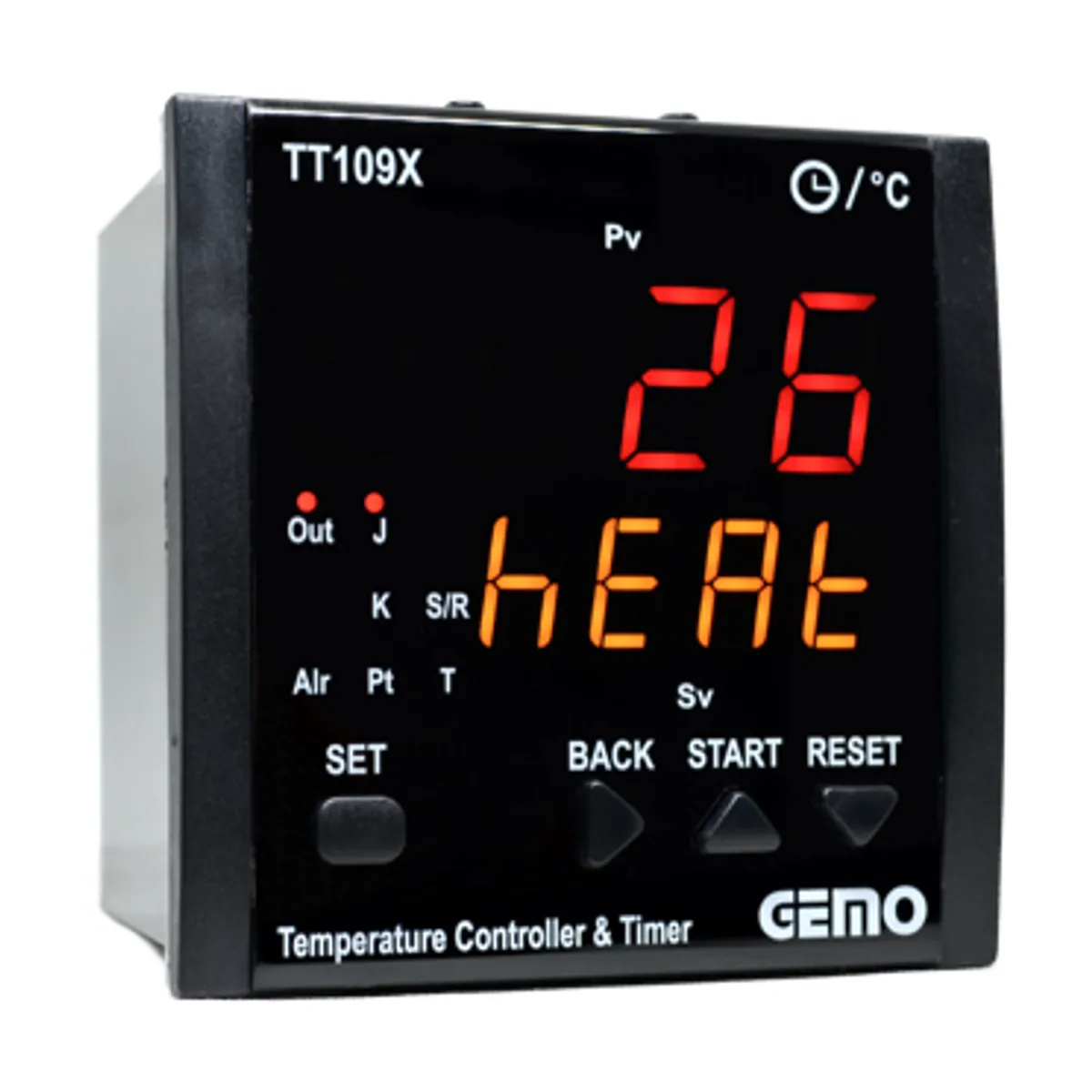

GEMO TT109X-230VAC-R Auto-Tune PID Temperature Controller with Built-In Timer Relay
- Brand: GEMO
- SKU: TT109X-230VAC-R
- MPN: TT109X-230VAC-R
- Price: 1796.48 TRY + VAT · incl. VAT 2155.78 TRY
- Availability: In stock
- PID Thermostats
- GEMO PID Thermostats
- Selection guide: PID Thermostats Selection Guide: Technical Criteria and Engineering Practice
GEMO TT109X-230VAC-R is a PID temperature controller with built-in timer relay, 96 x 96 mm panel size and 100..240 Vac supply.
| Supply Type | 100..240 VAC |
|---|---|
| Size Type | 96x96 mm |
| Sensor Input Type | T/C (J, K, T, S, R), Pt100 |
| Display | 2x4 Dijit, PV ve SV |
| Control Type | Auto Tune PID / On-Off |
| Panel Cut-out | 91x91 mm |
| Control Output | Röle (NA + NK), 250VAC, 2A, Rezistif load |
| Alarm Output | Röle (NA + NK), 250VAC, 2A, Rezistif load |
| Measuring Range | J: -100 .. 600 °C; K: -100 .. 1300 °C; T: -100 .. 400 °C; S: 0 .. 1750 °C; R: 0 .. 1750 °C; Pt100: -100 .. 600 °C |
| Resolution | ± 1 °C veya ± 0.1 °C |
| Accuracy | ± % 1 (Tam Skalanın) |
| Time setting range | 00:00 .. 99:59 saat |
| Timing Accuracy | ± % 1.5 (t.SET veya A.Off değerlerinin) |
| Control Period | 1 .. 200 sn |
| Power Consumption | < 8 VA |
| Operating Temperature | 0 .. 50 °C |
| Storage Temperature | -10 °C .. 60 °C (buzlanma olmadan) |
| Relative Humidity | < %70 (yoğunlaşmasız) |
| Operating Altitude | < 2000 m |
| Standards | EMC: EN 61000-6-1, EN 61000-6-3; Güvenlik: EN 61010-1 |
| Pollution Degree | 1 |
| IP Rating | IP20 |
| Tightening Torque | en fazla 0.5 N.m (klemens) |
| Mounting Type | Panel tipi sabit montaj |
