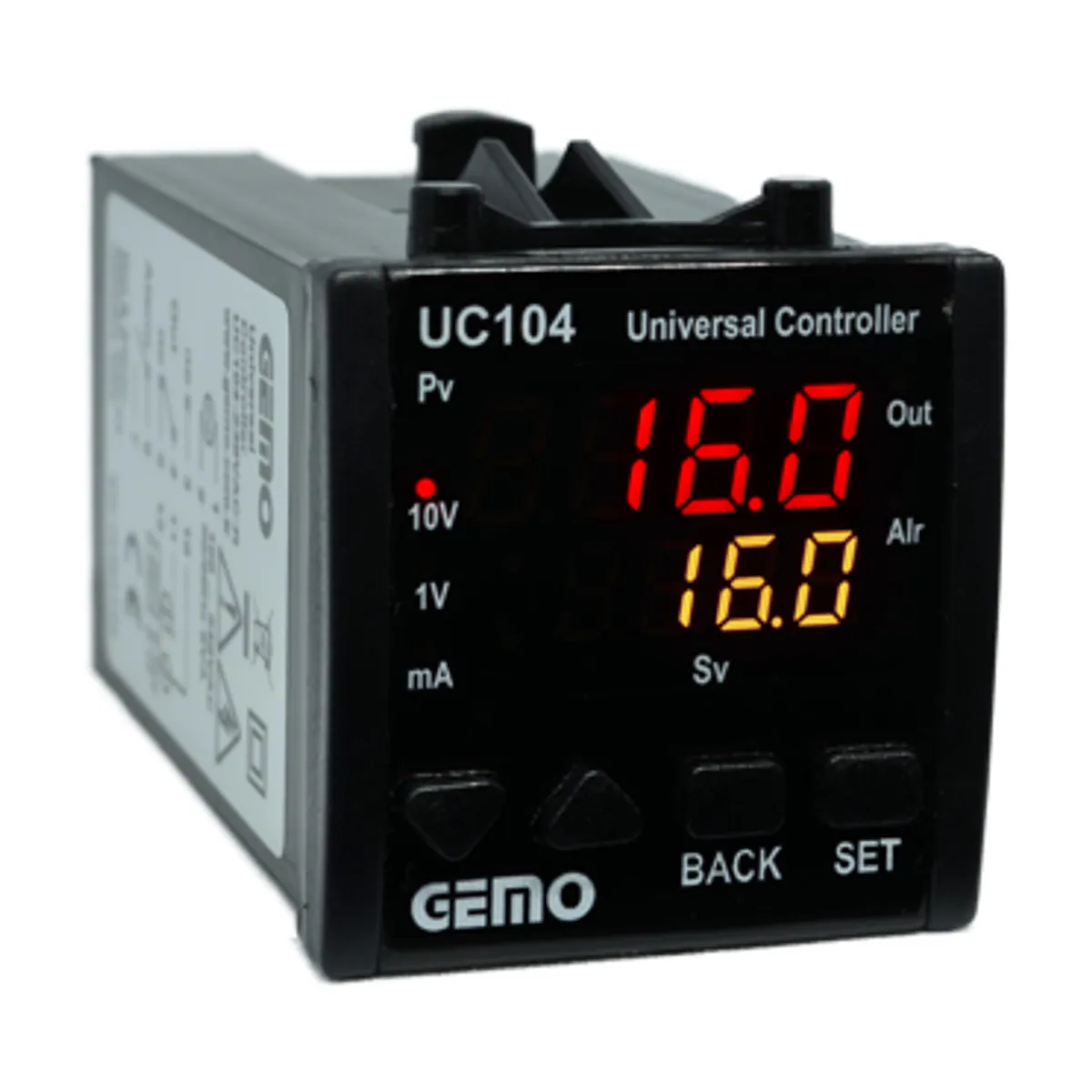

GEMO UC104-24V-R Universal Controller
- Brand: GEMO
- SKU: UC104-24V-R
- MPN: UC104-24V-R
- Price: 1313.85 TRY + VAT · incl. VAT 1576.62 TRY
- Availability: In stock
- Universal Controllers
- Selection guide: Universal Controllers Selection Guide: Technical Criteria & Application Standards
GEMO UC104-24V-R is a universal controller with 48 mm x 48 mm front panel size. Operates on 18..32 Vdc / 14..28 Vac supply; has relay control and alarm outputs. Selectable analog inputs are 0-20 mA, 4-20 mA, 0-10 V and 0-1 V.
| Supply Type | 18..32Vdc / 14..28Vac |
|---|---|
| Size Type | 48mm x 48mm |
| Display | 2x4 Dijit, PV ve SV |
| Control Type | On-Off |
| Panel Cut-out | 45,5x45,5 mm |
| Control Output | Röle (NA + NK), 250VAC, 2A, Rezistif load |
| Alarm Output | Röle (NA), 250VAC, 2A, Rezistif load |
| Input Type | 0-20mA, 4-20mA, 0-10V, 0-1V |
| Input Impedance | Voltaj girişi: >22KOhm (en fazla 20Vdc); Akım girişi: şönt 27 Ohm (en fazla 50mA dc) |
| Calibration Scale | -1999 .. 4000 |
| Resolution | ± 1 Hane |
| Accuracy | ± % 0.5 (Tam Skalanın) |
| Power Consumption | < 6VA |
| Operating Temperature | 0 .. 50 °C |
| Storage Temperature | -10 °C .. 60 °C (buzlanma olmadan) |
| Relative Humidity | 30 °C'ye kadar %80, sonra doğrusal azalarak 50 °C'de %50 (yoğunlaşmasız) |
| Operating Altitude | < 2000 m |
| Standards | EMC: EN 61000-6-1, EN 61000-6-3; Güvenlik: EN 61010-1 |
| Pollution Degree | 1 |
| IP Rating | IP20 |
| Tightening Torque | en fazla 0.5 N.m (klemens) |
| Mounting Type | Panel tipi sabit montaj |
