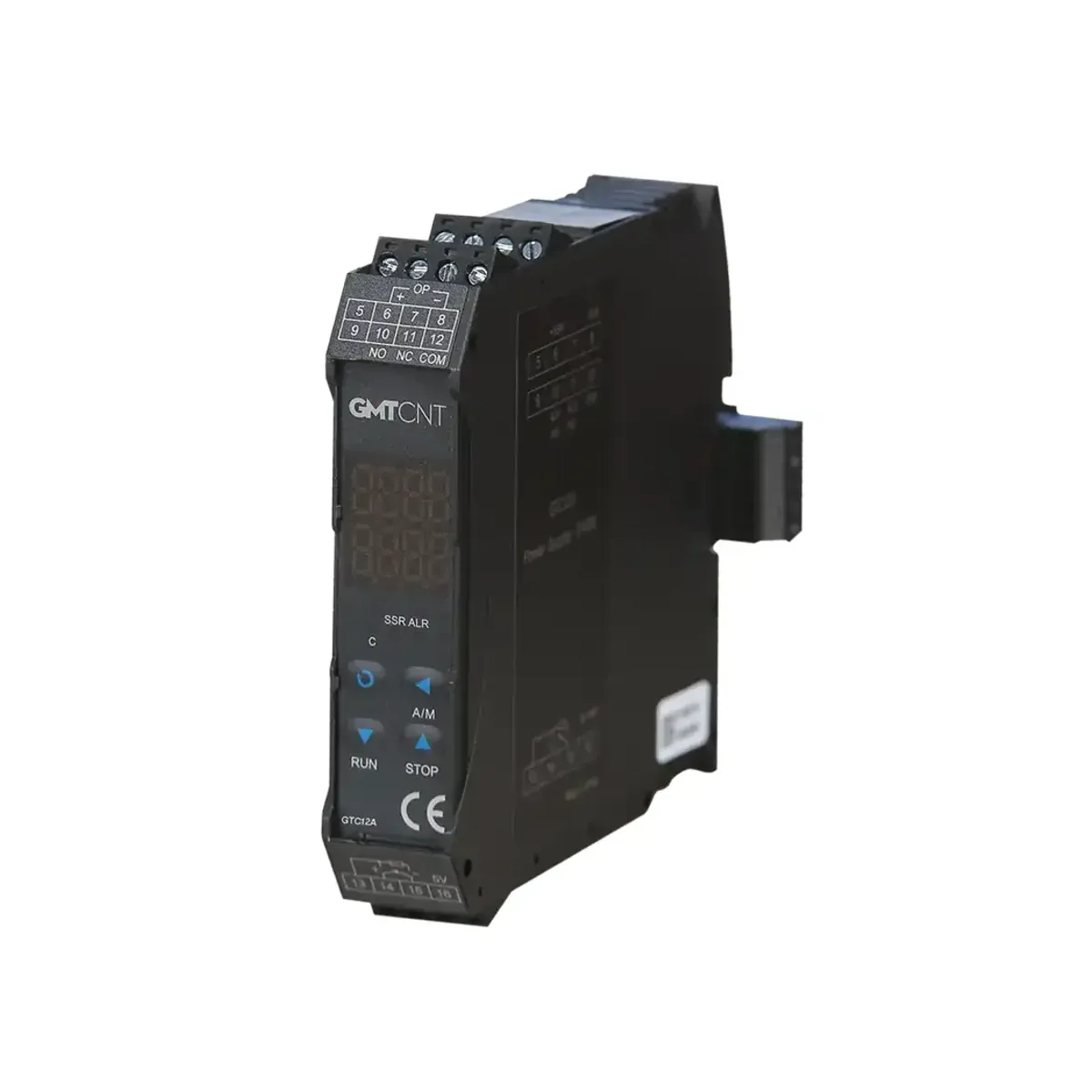

GMT GTC12A PID Controller
- Brand: GMT
- SKU: GTC12A
- MPN: GTC12A
- Model: Analog
- Price: 3386.40 TRY + VAT · incl. VAT 4063.68 TRY
- Availability: In stock
- PID Thermostats
- Selection guide: PID Thermostats Selection Guide: Technical Criteria and Engineering Practice
GMT GTC12A PID controller: universal input, analog output, PID controller.
| Sensor Input Type | Üniversal |
|---|---|
| Supply Voltage | 24 VDC (-15%, +10%) |
| EMC Immunity | IEC 61000-4-4 ±4 kV/5 kHz; IEC 61000-4-5 4 kV |
| Power Consumption | ≤5 W |
| Communication Protocols | Modbus RTU (RS485, 9600 8N1) |
| Control Modes | On/Off, bulanık mantık PID, AI-PID otomatik ayar |
| Control Period | 0,24–300,0 s |
| Control Output | Analog |
| Mounting Type | DIN rail |
| Sensor Input Ranges | Termokupl J/K/S/R/E/T/B/N/WRe; Cu50/PT100; DC 0–5 V, 1–5 V, 0–1 V, 0–100/20/500 mV; 4–20 mA (250 Ω şönt ile) |
| Operating Humidity | ≤90% RH |
| Operating Temperature | -10–60 °C |
| Measurement Accuracy | 0,25% FS ±1 |
| Sampling Rate | 8 örnek/s |
| Insulation Withstand Voltage | ≥600 V |
| Alarm Functions | Üst limit, alt limit, sapma üst limiti, sapma alt limiti |
| Digital Filter Response Time | 0,5 s (FILt=0) |
| Temperature Reading Ranges | J 0–1000 °C; K -50–1300 °C; S/R -50–1700 °C; T -200–350 °C; E 0–800 °C; B 200–1800 °C; N 0–1300 °C; Cu50 -50–150 °C; PT100 -200–600 °C |
