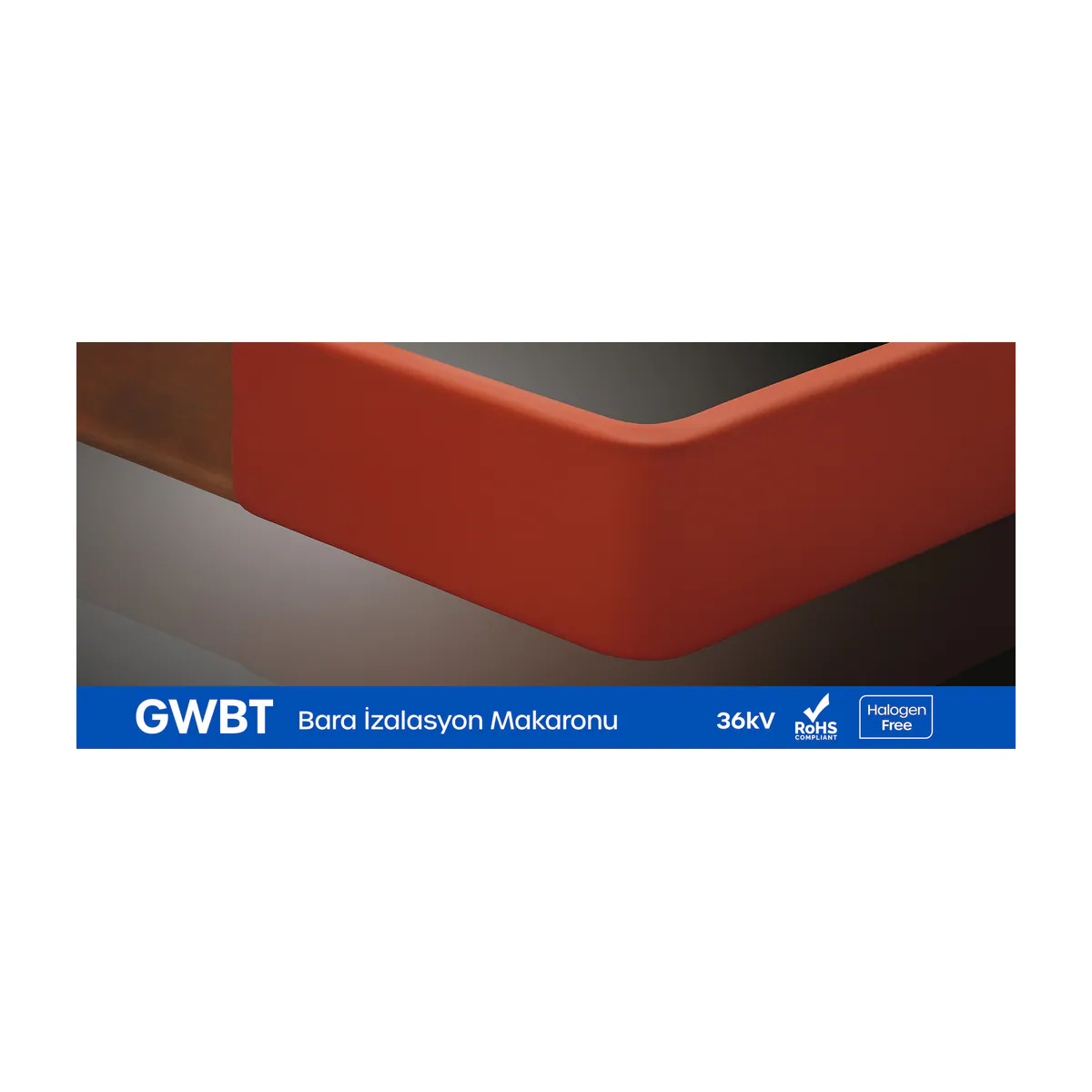

Gwest 4457 GWBT Busbar Insulation Heat-Shrink Sleeve — Brick Red, 75/30 mm
- Brand: Gwest
- SKU: 4457
- Price: 6256.41 TRY + VAT · incl. VAT 7507.69 TRY
- Availability: In stock
- Standard Heat-Shrink Sleeves
- Gwest Standard Heat-Shrink Sleeves
- Selection guide: Standard Heat-Shrink Sleeves Selection Guide
Gwest 4457 GWBT Busbar Insulation Sleeve. Key technical features - Color: Brick Red - Material: Polyolefin - Nominal Size: 75/30 mm - Shrink Ratio: 2.5/1 - Inner Diameter Before Shrinking: 75 mm - Inner Diameter After Shrinking: 30 mm - Voltage: 36kV - Flame Retardancy: Self-extinguishing - Minimum Shrink Temperature: 105°C - Wall Thickness After Shrinking (mm): 2.9 mm
| Shrink Ratio | 2.5/1 |
|---|---|
| Wall Thickness After Shrinking (mm) | 2.9 mm |
| Inner Diameter After Shrinking | 30 mm |
| Inner Diameter Before Shrinking | 75 mm |
| Voltage | 36 kV |
| Material | Polyolefin |
| Minimum Shrink Temperature | 105°C |
| Nominal Size | 75/30 mm |
| Color | Kiremit Kırmızı |
| Flame Retardancy | Self-extinguishing |
| Manufacturer Order Code | 4457 |
| Product Type | GWBT Bara İzolasyon Makaronu |
