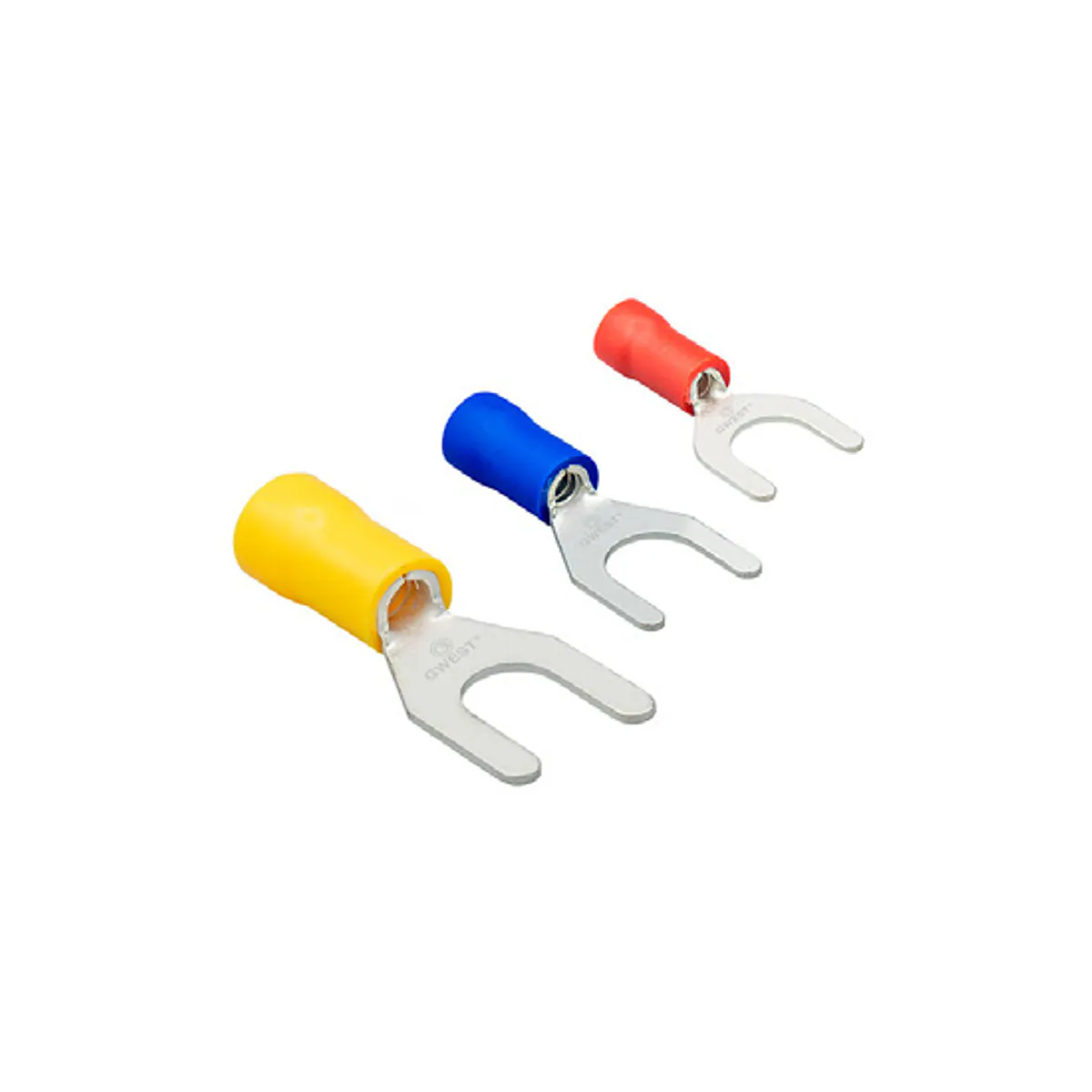

Gwest GÇU - 6001 Fork Type Insulated Cable Terminals — Red
- Brand: Gwest
- SKU: 3104
- MPN: GÇU - 6001
- Price: 287.20 TRY + VAT · incl. VAT 344.64 TRY
- Availability: In stock
- Fork Type Insulated Cable Terminals
- Gwest Fork Type Insulated Cable Terminals
- Selection guide: Fork Type Insulated Cable Terminals Selection Guide: Technical Criteria and Engineering Practice
Gwest GÇU - 6001 Fork Type Insulated Cable Terminals. Key technical features - Cable Cross-Section: 0.50 - 1.50 mm² - Color: Red - Material: Copper, Tin-Plated - Insulation: PVC - Operating Temperature: Maximum 105 °C - Voltage: 600 V - Standard: DIN 46237 - Terminal Dimension d2: 6.5 mm - Bolt Size: M6 - Terminal Dimension d1: 1.6 mm - Terminal Dimension d3: 11.0 mm - Terminal Dimension a: 10.0 mm - Terminal Dimension d4: 4.0 mm - Terminal Dimension I: 20.0 mm
| Bolt Size | M6 |
|---|---|
| Voltage | 600 V |
| Cable Cross-Section | 0.5–1.5 mm² |
| Material | Bakır, Kalay Kaplı |
| Color | Red |
| Standard | DIN 46237 |
| Terminal Dimension I | 20 mm |
| Terminal Dimension a | 10 mm |
| Terminal Dimension d1 | 1.6 mm |
| Terminal Dimension d2 | 6.5 mm |
| Terminal Dimension d3 | 11 mm |
| Terminal Dimension d4 | 4 mm |
| Operating Temperature | Maksimum 105 °C |
| Manufacturer Order Code | 3104 |
| Manufacturer Product Code | GÇU - 6001 |
| Product Type | Çatal Tip İzoleli Kablo Uçları |
| Isolation | PVC |
