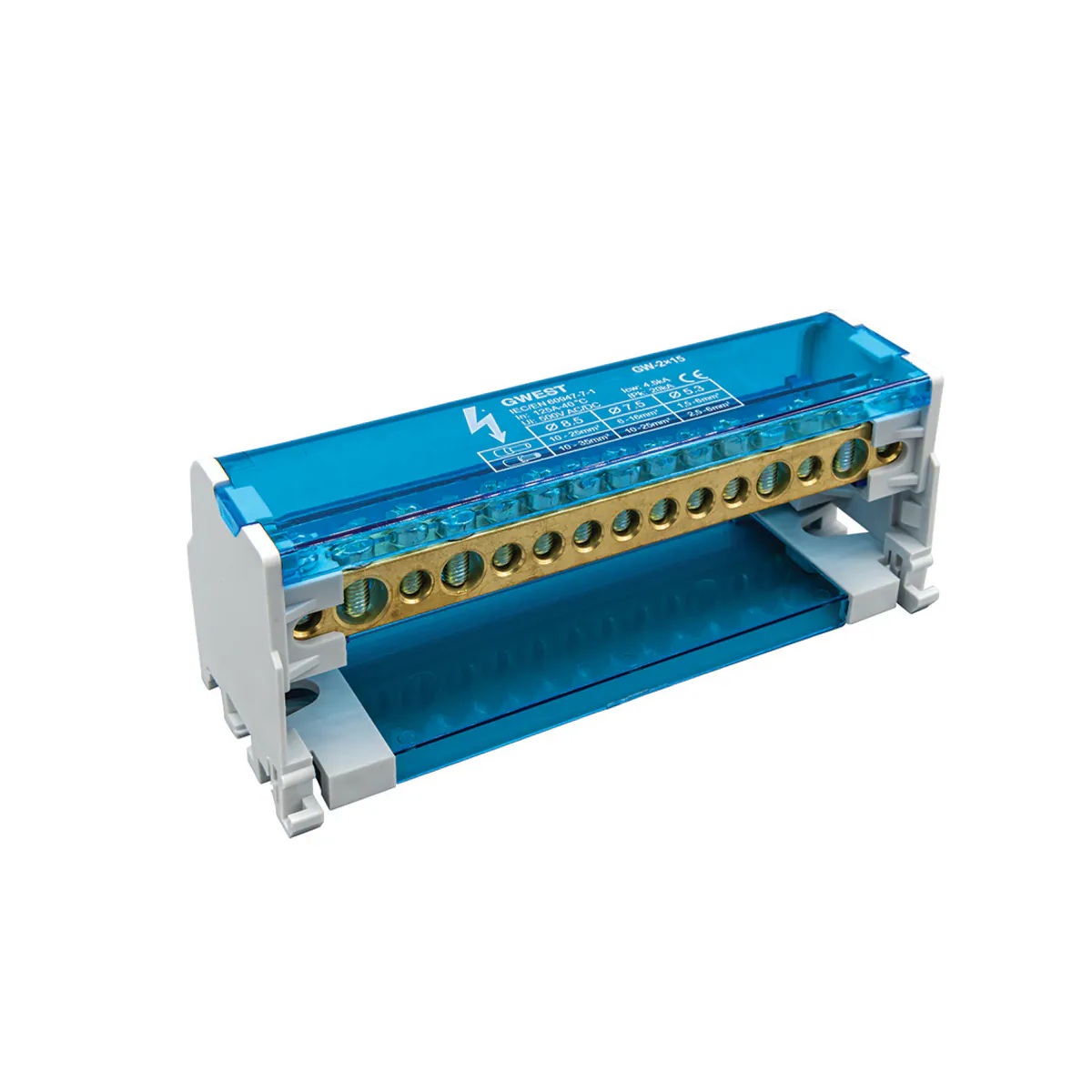

Gwest GW - 2x15 2-Pole Distribution Unit
- Brand: Gwest
- SKU: 3703
- MPN: GW - 2x15
- Price: 285.60 TRY + VAT · incl. VAT 342.72 TRY
- Availability: In stock
- Busbars and Distribution Blocks
- Gwest Busbars and Distribution Blocks
- Selection guide: Busbars and Distribution Blocks Selection Guide: Technical Criteria and Engineering Practice
- Calculate busbar current-carrying capacity
Gwest GW - 2x15 2-Pole Distribution Unit. Key technical features - Current: 125 Amps - Cable Cross Section (mm²) / Output / 1. Row: 2x10-25 mm ² 11x2.5-6 mm ² - Cable type: Single-Core | Multi-Strand - Cable Cross Section (mm²) / Input / 2. Row: 2x10-16 mm ² - Cable Cross Section (mm²) / Output / 2. Row: 2x6-16 mm ² 11x1.5-6 mm ² - Cable Cross Section (mm²) / Input / 1. Row: 2x10-35 mm ² - Number of Poles: 2
| Current | 125 Amper |
|---|---|
| Cable type | Tek Damar | Çok Telli |
| Cable Cross Section (mm²) / Input / 1. Row | 2x10-35 mm ² |
| Cable Cross Section (mm²) / Input / 2. Row | 2x10-16 mm ² |
| Cable Cross Section (mm²) / Output / 1. Row | 2x10-25 mm ² 11x2,5-6 mm ² |
| Cable Cross Section (mm²) / Output / 2. Row | 2x6-16 mm ² 11x1,5-6 mm ² |
| Number of Poles | 2P |
| Manufacturer Order Code | 3703 |
| Manufacturer Product Code | GW - 2x15 |
| Product Type | 2 Kutuplu Dağıtıcı Üniteler |
