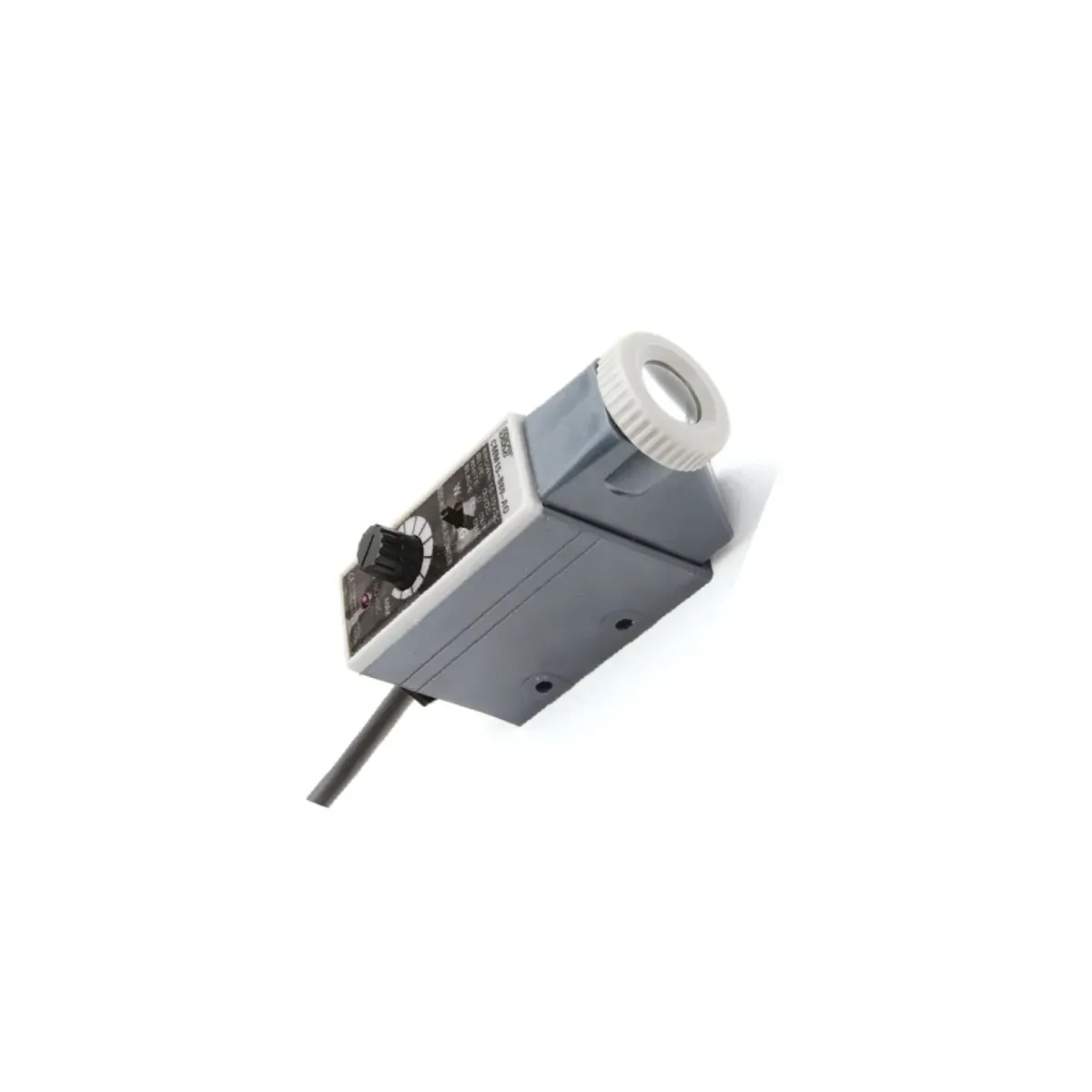

Isıso CMM15-B80-A2 Color Sensor, B80, PNP NO+NC, 15 mm
- Brand: Isıso
- SKU: CMM15-B80-A2
- MPN: CMM15-B80-A2
- Price: 2413.18 TRY + VAT · incl. VAT 2895.82 TRY
- Availability: In stock
- Special-Purpose Sensors
- Selection guide: What Is a Sensor? Industrial Sensor Types and Selection
Isıso CMM15-B80-A2, color sensor (B80, PNP NO+NC, 15 mm). Technical specifications: Housing Type: B80; Output Type: PNP NO+NC; Sensing Distance: 15 mm; Connection Type: Cabled; Number of Wires: 4; Supply Voltage: 10-30 V DC; Protection Rating: IP67; Operating Temperature: -25...+70 °C; Protection Features: Short-circuit, overload and reverse polarity protection; Load Current: 200 mA; Sensing Type: Color mark, coaxial; Response Time: 0.1-1 ms; Light Source: Red / Green / Blue / White (selectable); Current Consumption: < 45 mA. Stock code: CMM15-B80-A2.
| Supply Voltage | 10-30 V DC |
|---|---|
| Body Type | B80 |
| Output Type | PNP NO+NC |
| Sensing Distance | 15 mm |
| Connection Type | Wired |
| Load Current | 200 mA |
| Current Consumption | < 45 mA |
| Sensing Type | Renk işareti (color mark), koaksiyel |
| Light Source | Kırmızı / Yeşil / Mavi / White (seçilebilir) |
| Number of Wires | 4 |
| Protection Rating | IP67 |
| Protection Features | Kısa devre, aşırı load ve ters polarite koruması |
| Response Time | 0,1-1 ms |
| Operating Temperature | -25...+70 °C |
