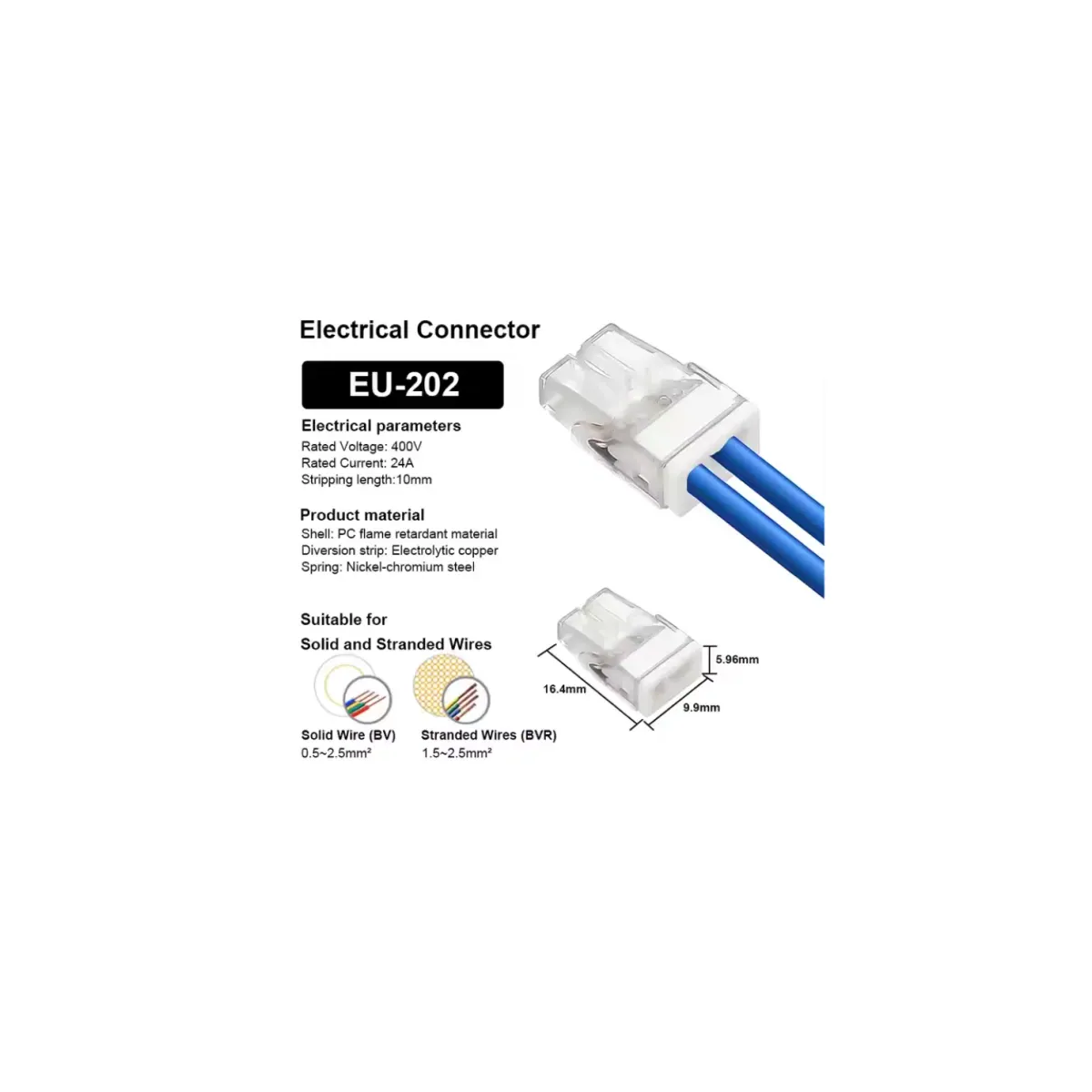

Isıso EU-202 Junction Box Terminal Block, 2-Pole, White
- Brand: Isıso
- SKU: EU-202
- MPN: EU-202
- Price: 397.20 TRY + VAT · incl. VAT 476.64 TRY
- Availability: In stock
- Plug-In Junction Box Terminal Blocks
- Selection guide: Plug-In Junction Box Terminal Blocks Selection Guide: Technical Criteria & Application Standards
Isıso EU-202, junction box terminal block (2-Pole, White). Technical specifications: Number of Poles: 2; Color: White; Rated Voltage: 400 V; Rated Current: 24 A; Cable Cross-Section: 0.50-2.5 mm2; Stripping Length: 10 mm; Operating Temperature: -30...+105 °C; Housing Material: Polycarbonate (PC); Spring Material: Ni-Cr Steel; Solid Conductor Cable Cross-Section: 0.5-2.5 mm2; Stranded Conductor Cable Cross-Section: 1.5-2.5 mm2; Product Dimensions: 9.8 x 16.4 x 5.8 mm (Width x Length x Height). The product is sold in boxes of 200. Stock code: EU-202.
| Color | White |
|---|---|
| Cable Cross-Section | 0.5–2.5 mm² |
| Rated Current | 24 A |
| Rated Voltage | 400 V |
| Housing Material | Polikarbonat (PC) |
| Number of Poles | 2P |
| Product Dimensions | 9,8 x 16,4 x 5,8 mm (En x Boy x Yükseklik) |
| Stripping Length | 10 mm |
| Solid Conductor Cable Cross-Section | 0.5–2.5 mm² |
| Spring Material | Ni-Cr Çelik |
| Operating Temperature | -30...+105 °C |
| Stranded Conductor Cable Cross-Section | 1.5–2.5 mm² |
