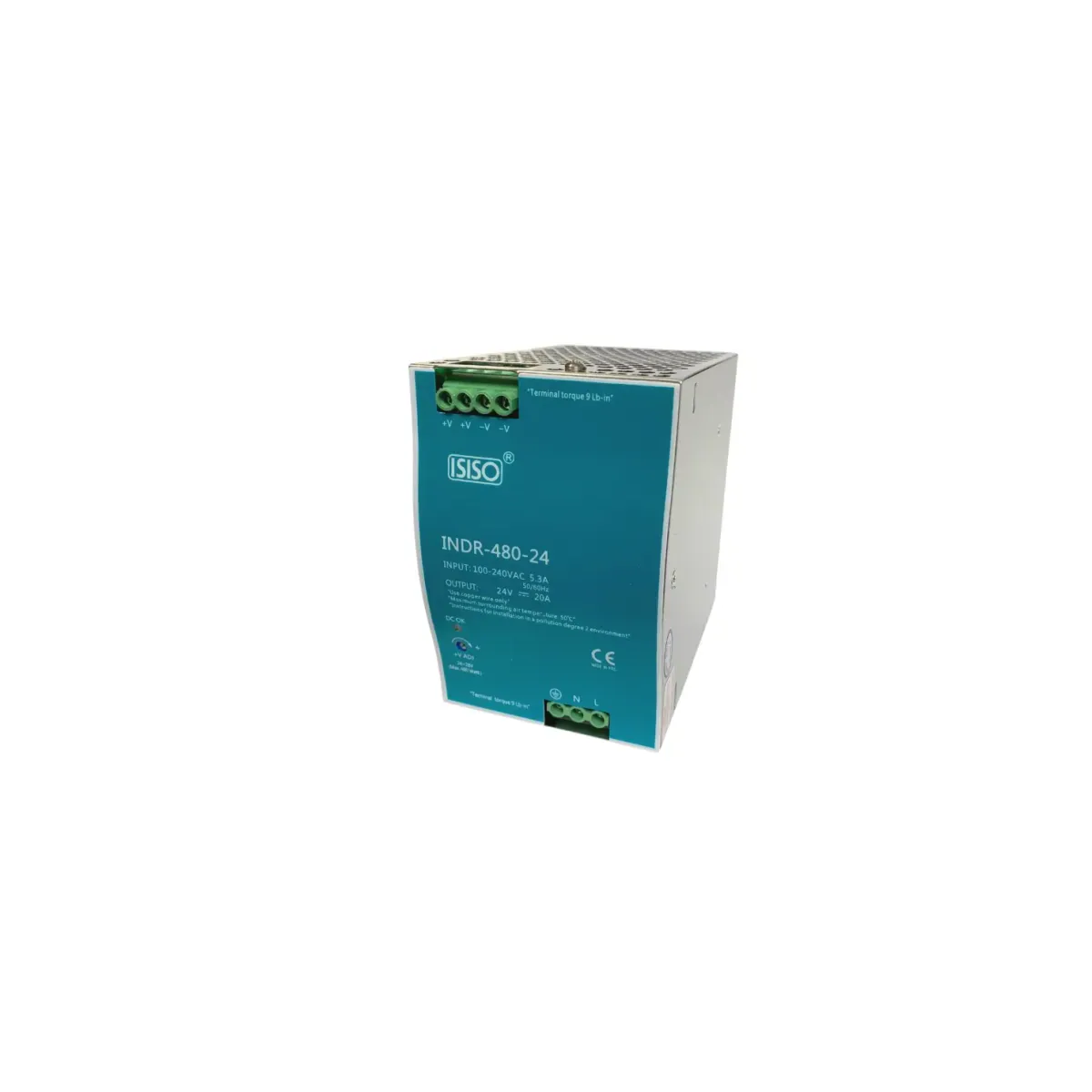

Isıso INDR-480-24 Power Supply, 480 W, 24 V DC, 20 A
- Brand: Isıso
- SKU: INDR-480-24
- MPN: INDR-480-24
- Price: 4021.97 TRY + VAT · incl. VAT 4826.36 TRY
- Availability: In stock
- DIN Rail Power Supplies
- Isıso DIN Rail Power Supplies
- Selection guide: DIN Rail Power Supplies Selection Guide: Technical Criteria and Engineering Practice
Isıso INDR-480-24, power supply (480 W, 24 V DC, 20 A). Technical specifications: Power: 480 W; Output Voltage: 24 V DC; Output Current: 20 A; Product Dimensions: 85.8 x 125.2 x 128.5 mm; Input Voltage: 220 V AC; Mounting Type: DIN rail mounted; Output Ripple: 150 mVp-p; Output Voltage Adjustment Range: 24-28 V; Voltage Tolerance: ±1%; Line Regulation: ±0.5%; Load Regulation: ±1%; Efficiency: 88.5%; Power Factor: PF > 0.95 (115/230VAC at full load); Overload Protection: 105%-130%; Overvoltage Protection: 29-33V; Operating Temperature: -20...+70 °C; Certifications: TÜV EN60950-1; Weight: 1.5 kg. Stock code: INDR-480-24.
| Power | 480 W |
|---|---|
| Output Voltage | 24 V DC |
| Output Current | 20 A |
| Input Voltage | 220 V AC |
| Mounting Type | DIN ray montajlı |
| Output Ripple | 150 mVp-p |
| Output Voltage Adjustment Range | 24–28 V |
| Voltage Tolerance | ±1% |
| Product Dimensions | 85,8 x 125,2 x 128,5 mm |
| Line Regulation | ±0,5% |
| Load Regulation | ±1% |
| Efficiency | %88,5 |
| Overvoltage Protection | 29–33 V |
| Certifications | TÜV EN60950-1 |
| Operating Temperature | -20...+70 °C |
| Gram | 1.5 kg |
| Overload Protection | 105%-130% |
| Power Factor | PF > 0.95 (115/230VAC tam yükte) |
