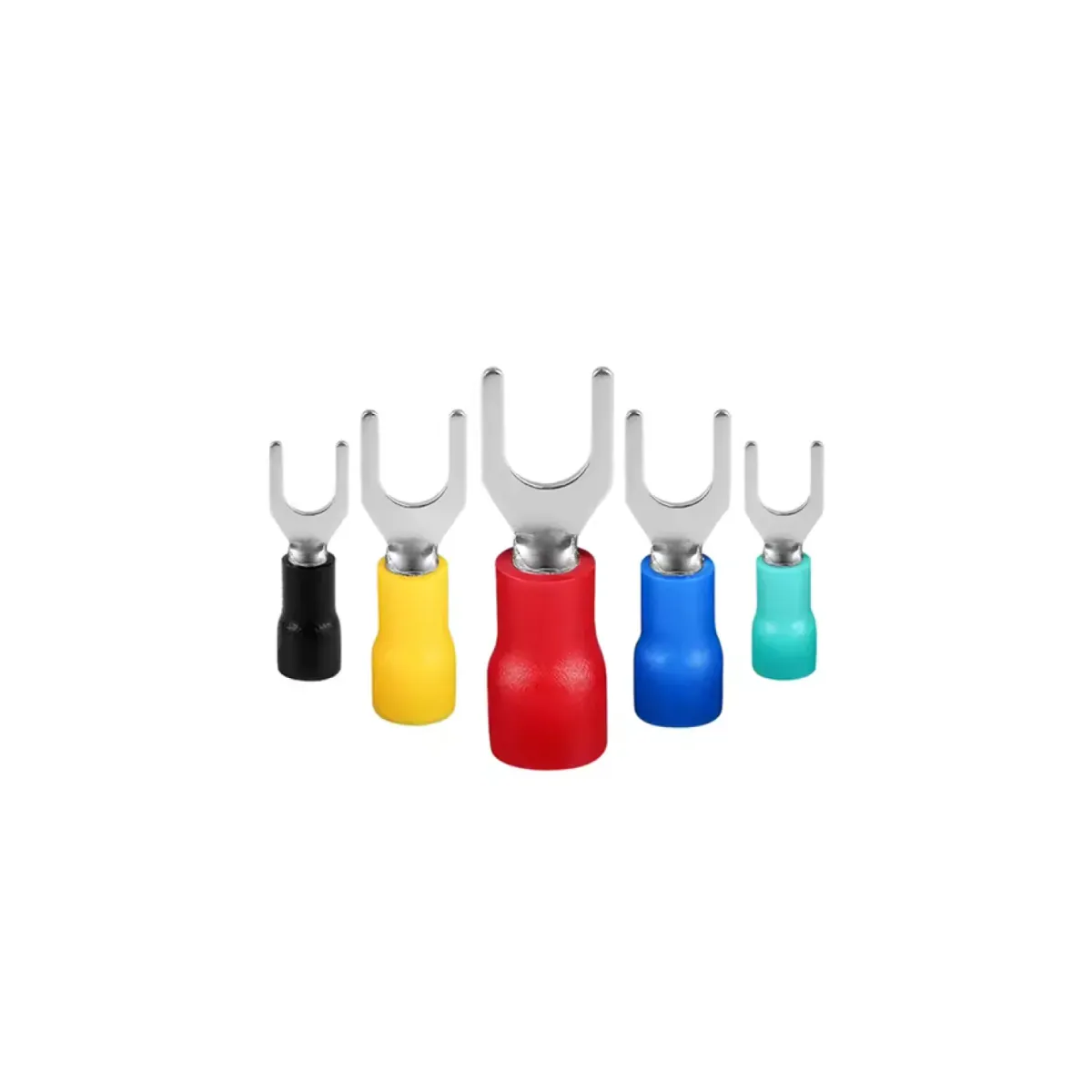

Isıso SV 1.25-4 Fork Type Insulated Cable Terminal, 0.50-1.50 mm2, M4
- Brand: Isıso
- SKU: SV 1,25-4
- MPN: SV 1,25-4
- Price: 188.60 TRY + VAT · incl. VAT 226.32 TRY
- Availability: In stock
- Fork Type Insulated Cable Terminals
- Isıso Fork Type Insulated Cable Terminals
- Selection guide: Fork Type Insulated Cable Terminals Selection Guide: Technical Criteria and Engineering Practice
Isıso SV 1.25-4, fork-type insulated cable terminal (0.50-1.50 mm2, M4). Technical specifications: Cable Cross-Section: 0.50-1.50 mm2; Bolt Size: M4; Color: Red; Terminal Dimension d2: 4.3 mm; Terminal Dimension d3: 8.0 mm; Terminal Dimension I: 17.0 mm; Terminal Dimension d1: 1.6 mm; Terminal Dimension d4: 4.0 mm; Terminal Dimension a: 10.0 mm. The product is sold in boxes of 200. Stock code: SV 1,25-4.
| Color | Red |
|---|---|
| Cable Cross-Section | 0.5–1.5 mm² |
| Bolt Size | M4 |
| Terminal Dimension d1 | 1.6 mm |
| Terminal Dimension d2 | 4.3 mm |
| Terminal Dimension a | 10 mm |
| Terminal Dimension d4 | 4 mm |
| Terminal Dimension I | 17 mm |
| Terminal Dimension d3 | 8 mm |
