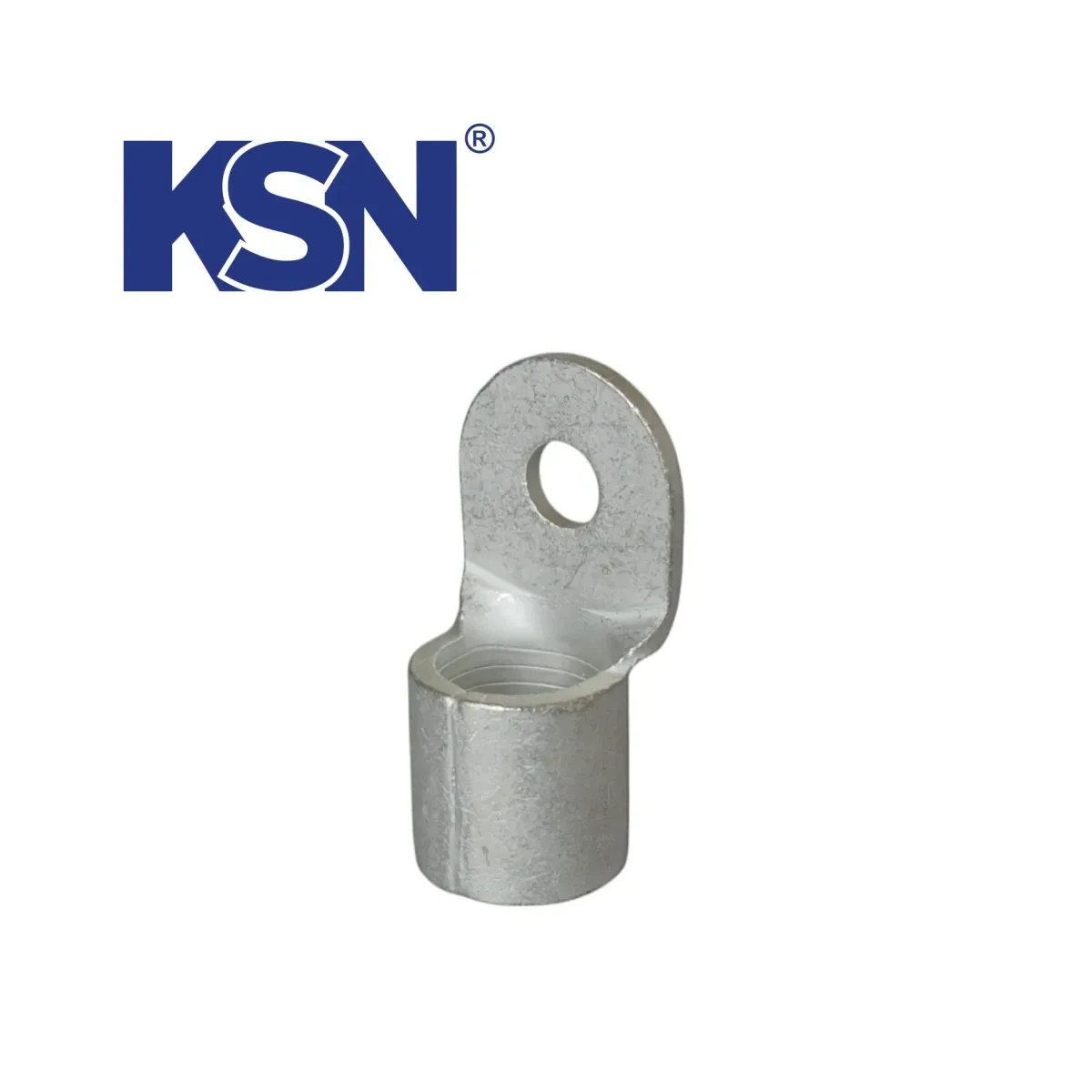

KSN-DR-16-95NB DIN 46234 Round Welded Cable Lug 95 mm2 M16
- Brand: KSN
- SKU: KSN3545
- MPN: KSN-DR-16-95NB
- Price: 4116.30 TRY + VAT · incl. VAT 4939.56 TRY
- Availability: In stock
- Welded Type Cable Lugs
- KSN Welded Type Cable Lugs
- Selection guide: Welded Type Cable Lugs Selection Guide: Technical Criteria and Engineering Practice
KSN-DR-16-95NB is a round (welded) cable lug manufactured to DIN 46234, used to connect conductors with a 95 mm² cross-section to M16 bolted connection points. Housing material is Cu-ETP and its surface is tin-plated. The catalog states that the crimping area is brazed and that it has a grooved profile for improved crimping. Dimensions according to the catalog dimension drawing: d3 24 mm, length from hole center to tip (L) 42 mm, a 20 mm, c 23 mm, inner diameter (d1) 15 mm, thickness (S) 2.5 mm. The product is listed in the catalog as a box of 50; sales are made in quantities of 50 and multiples. Used as a bolt-fastened cable lug in panel, motor and busbar connections.
| Cable Lug Size | 95 mm² |
|---|---|
| Cable Lug Hole Size | M16 |
| Cable Lug Type | Kaynaklı Tip |
| Standard | DIN 46234 |
| Material | Cu-ETP |
| Surface coating | Kalay kaplı |
| Features | DIN 46234 e göre üretilmiştir; Sıkma alanında sert lehimli; Gelişmiş sıkma özellikleri için oluklu profil |
| Lug Head Diameter (d3) | 24 mm |
| Length | 42 mm |
| Crimping Zone Length (a) | 20 mm |
| Crimping Zone Outer Diameter (c) | 23 mm |
| Inner Diameter | 15 mm |
| Thickness | 2.5 mm |
