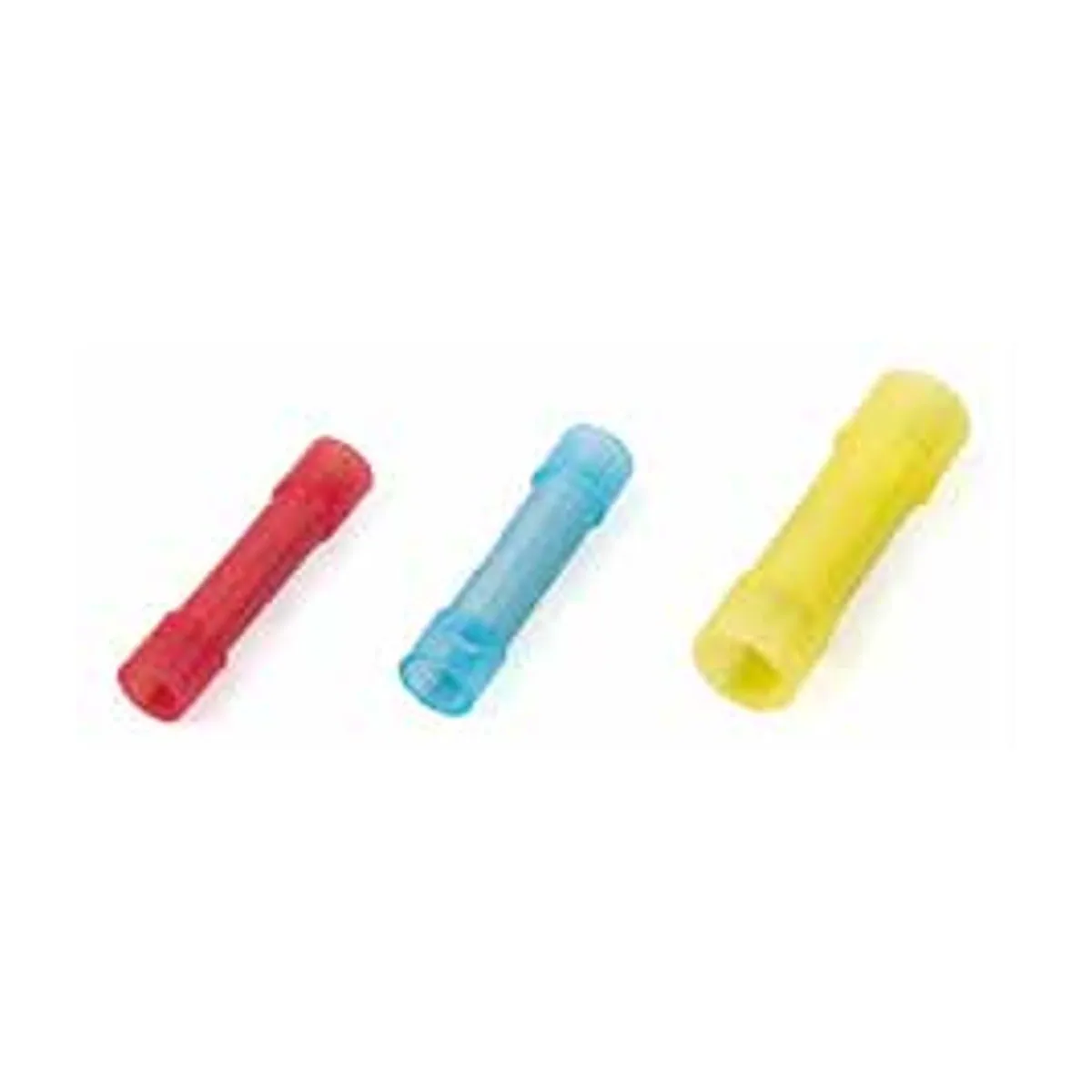

KSN KBHT-1 Heat-Shrink Splice Sleeve 0.5-1.5 mm2 Red
- Brand: KSN
- SKU: KSN3280
- MPN: KBHT-1
- Price: 630.00 TRY + VAT · incl. VAT 756.00 TRY
- Availability: In stock
- Splice Joints
- KSN Splice Joints
- Selection guide: Splice Joints Selection Guide: Technical Criteria and Engineering Practice
The KSN KBHT-1 is a red splice sleeve with heat-shrink sleeve insulation, used to join conductors with a 0.5-1.5 mm² (22-16 AWG) cross-section. The splice body is tin-plated copper; the insulation is a heat-shrink sleeve. The catalog gives a maximum operating temperature of 105 °C and a voltage of 600 V. Dimensions in the catalog: length (L) 26.0 mm, inner diameter (d) 1.8 mm, outer diameter (D) 4.2 mm. The product is listed in the catalog as a bag of 100; sales are made in quantities of 100 and multiples. Used to join conductors at cable splice points.
| Cable Terminal Type | Ek Muf Tip |
|---|---|
| Splice Type | Isı Büzüşmeli |
| Ferrule Size | 0.5–1.5 mm |
| Ferrule/Lug Insulation | İzoleli |
| Color | Red |
| Cable Cross-Section | 0,5 ~ 1,5 mm² / 22 ~ 16 AWG |
| Material | Bakır, Kalay Kaplı |
| Isolation | Isı ile daralan makaron |
| Operating Temperature | Maksimum 105 °C |
| Voltage | 600 V |
| Length | 26 mm |
| Inner Diameter | 1.8 mm |
| Outer Diameter | 4.2 mm |
