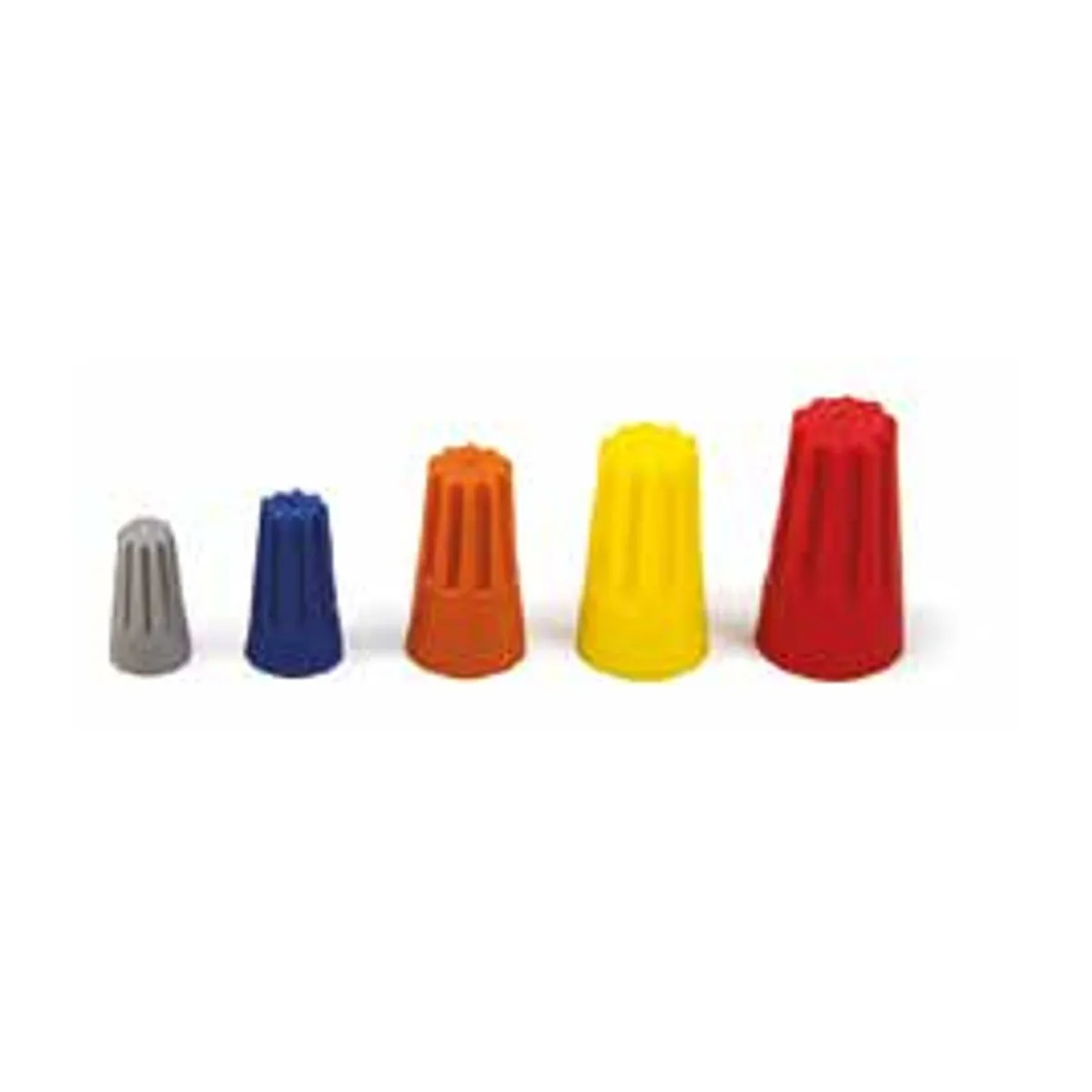

KSN KP-1 Screw-Type Junction Box Terminal Gray
- Brand: KSN
- SKU: KSN3300
- MPN: KP-1
- Model: KP-1
- Price: 55.90 TRY + VAT · incl. VAT 67.08 TRY
- Availability: In stock
- Screw-Type Junction Box Terminal Blocks
- Selection guide: Junction Box Terminal Blocks Selection Guide: Technical Criteria and Engineering Practice
The KSN KP-1 is a gray, PVC-insulated screw-type junction terminal used to join conductor ends by screwing them together. Inner structure is tin-plated brass; insulation is PVC. The catalog gives a maximum operating temperature of 105 °C and a voltage of 600 V. Dimensions according to the catalog dimension drawing: B 8.5 mm, C 6.7 mm, length (L) 15.0 mm. The catalog gives no cable cross-section for this series. The product is listed in the catalog as a bag of 100; sales are made in quantities of 100 and multiples. Used to join conductors in junction boxes and connection boxes.
| Connection Type | Screw |
|---|---|
| Color | Grey |
| Material | Pirinç, Kalay Kaplı |
| Isolation | PVC |
| Operating Temperature | Maksimum 105 °C |
| Voltage | 600 V |
| Dimension B | 8.5 mm |
| Dimension C | 6.7 mm |
| Length | 15 mm |
