KSN KSN-DU-4x13/160A 4-Pole Distribution Unit 4x13 160 A
- Brand: KSN
- SKU: KSN6006
- MPN: KSN-DU-4x13/160A
- Price: 1333.00 TRY + VAT · incl. VAT 1599.60 TRY
- Availability: In stock
- Busbars and Distribution Blocks
- KSN Busbars and Distribution Blocks
- Selection guide: Busbars and Distribution Blocks Selection Guide: Technical Criteria and Engineering Practice
- Calculate busbar current-carrying capacity

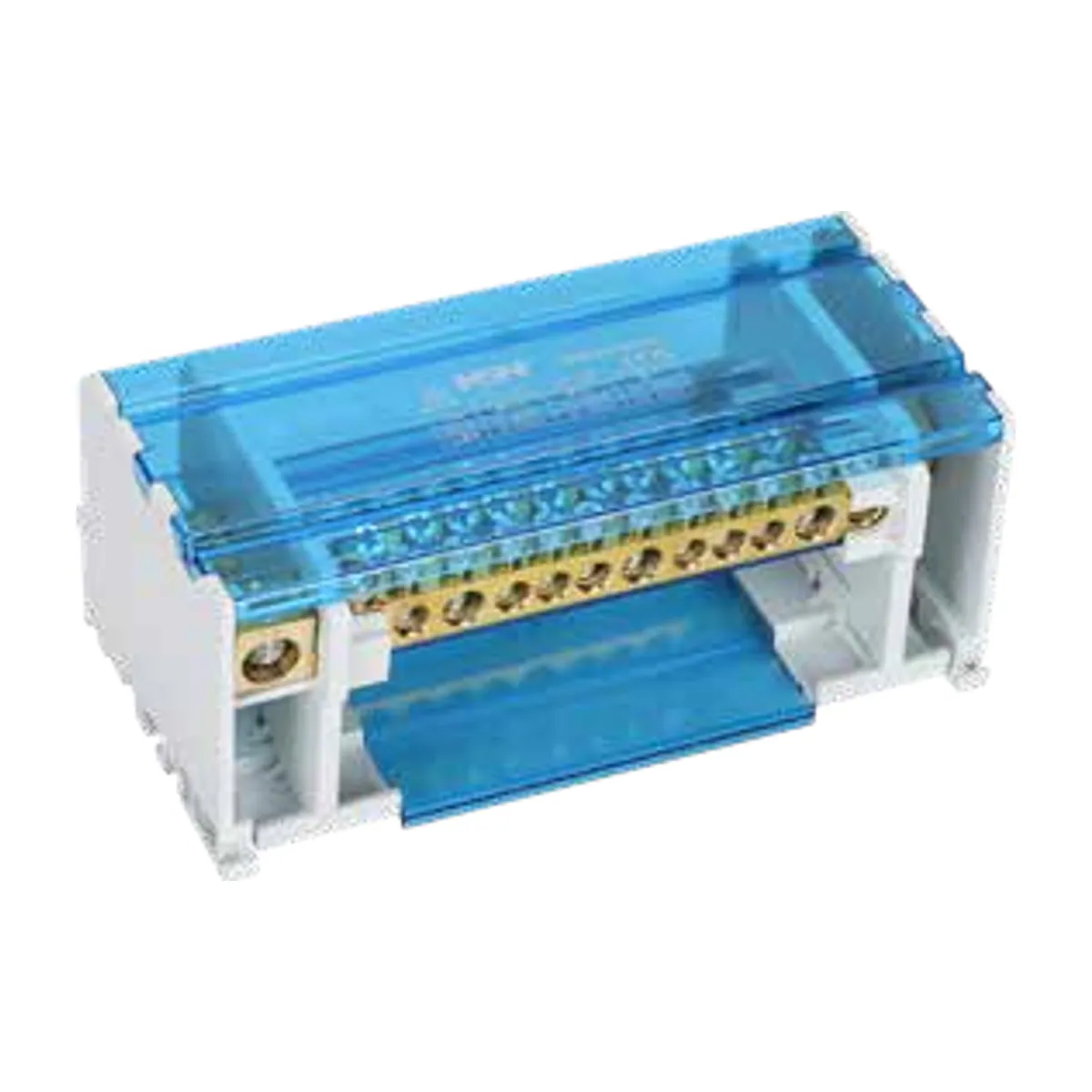

KSN-DU-4x13/160A is a 160 A, 4-pole distribution unit used to distribute supply lines to multiple outputs inside a panel. The catalog gives the housing dimensions as L: 170 mm, W: 90 mm, H: 70 mm. The cable cross-section table has two rows for solid and stranded cable types: in the first row, input 1x10-50 mm², output 3x10-35 mm² and 8x2.5-16 mm²; in the second row, input 1x10-50 mm², output 3x6-25 mm² and 8x1.5-16 mm². Catalog packaging is 1 piece per pack and 20 pieces per carton; the product is sold per piece. 4-pole distribution units are used for distributing the phase and neutral lines in meter, circuit breaker and distribution panels.
| Current | 160 A |
|---|---|
| Number of Poles | 4P |
| Length | 170 mm |
| Input Cable Cross-Section | 1x10-50 mm² / 1x10-50 mm² |
| Output Cable Cross-Section | 3x10-35 mm², 8x2,5-16 mm² / 3x6-25 mm², 8x1,5-16 mm² |
| Width | 90 mm |
| Height | 70 mm |
