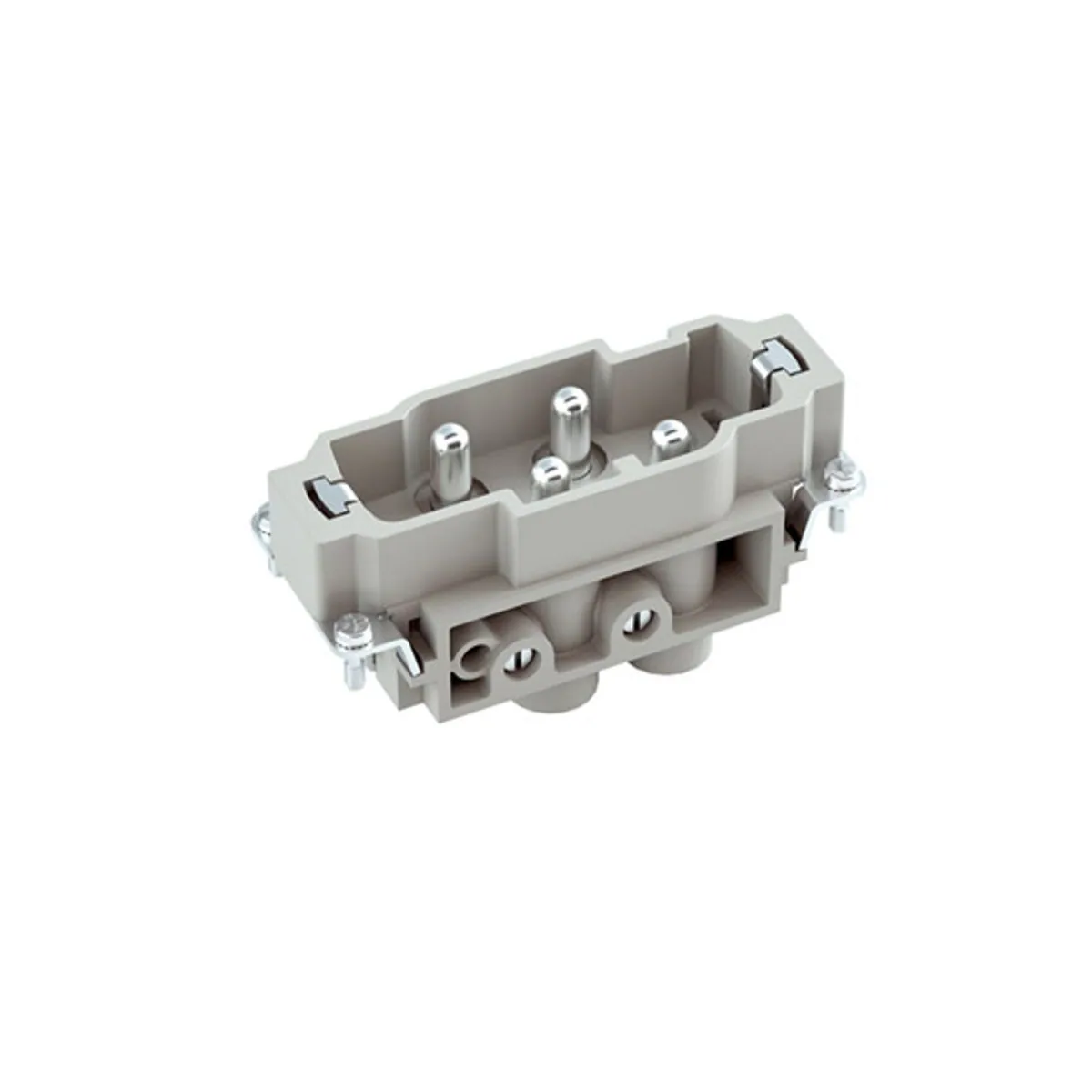

Mete Enerji 29115 4/0x80A Multi Plug Core Assembled (1-4)
- Brand: Mete Enerji
- SKU: 29115
- MPN: 29115
- Price: 763.80 TRY + VAT · incl. VAT 916.56 TRY
- Availability: In stock
- Connector Inserts
- Mete Enerji Connector Inserts
- Selection guide: Connector Inserts Selection Guide: Technical Criteria and Engineering Practice
Mete Enerji 29115 4/0x80A Multi-Pole Core-Mounted Plug (1-4); 80 A rated current, 4P+E contact arrangement, screw connection and 1.5 ... Features a 16 mm² conductor cross-section. It is a product of the Mete Enerji METECON multi-contact plug and socket series.
| Rated Current | 80 A |
|---|---|
| Number of Contacts | 4/0 |
| Operating Temperature | -40 ... +125 °C |
| RoHS | Compliant with exemption |
| Certifications | UL | cUL | TSE |
| Country of Origin | Turkey |
| Connection Type | Screw |
| Product Type | Fiş |
| Mating Cycles | ≥ 500 |
| Series | K Serisi |
| Conductor Cross-Section | 1.5–16 mm² |
| UL Rated Voltage | 600 V [UL] /300 [ CSA] |
| Applicable Standards | IEC 61984 / UL 1977 |
| Pollution Degree | 3 |
| Stripping Length | 14 mm |
| Insert Colour | Grey - RAL 7044 |
| Flammability Class | V-0 |
| Compatible Housing Type | 16B |
| Rated Impulse Voltage | 8 kV |
| Contact Configuration | 4P+E |
| Contact Material | Brass (Silver-plated) |
| Insert Material | PBT |
| Cable Entry | Rear |
| Contact Resistance | ≤ 1 mΩ |
| AWG | 1.5 | 2.5 | 4 | 6 | 10| 16 |
| Conductor-to-Conductor Voltage | 830 V |
| Tightening Torque | 1.2 | 2 | 3 | 3 | 3 | 3 |
