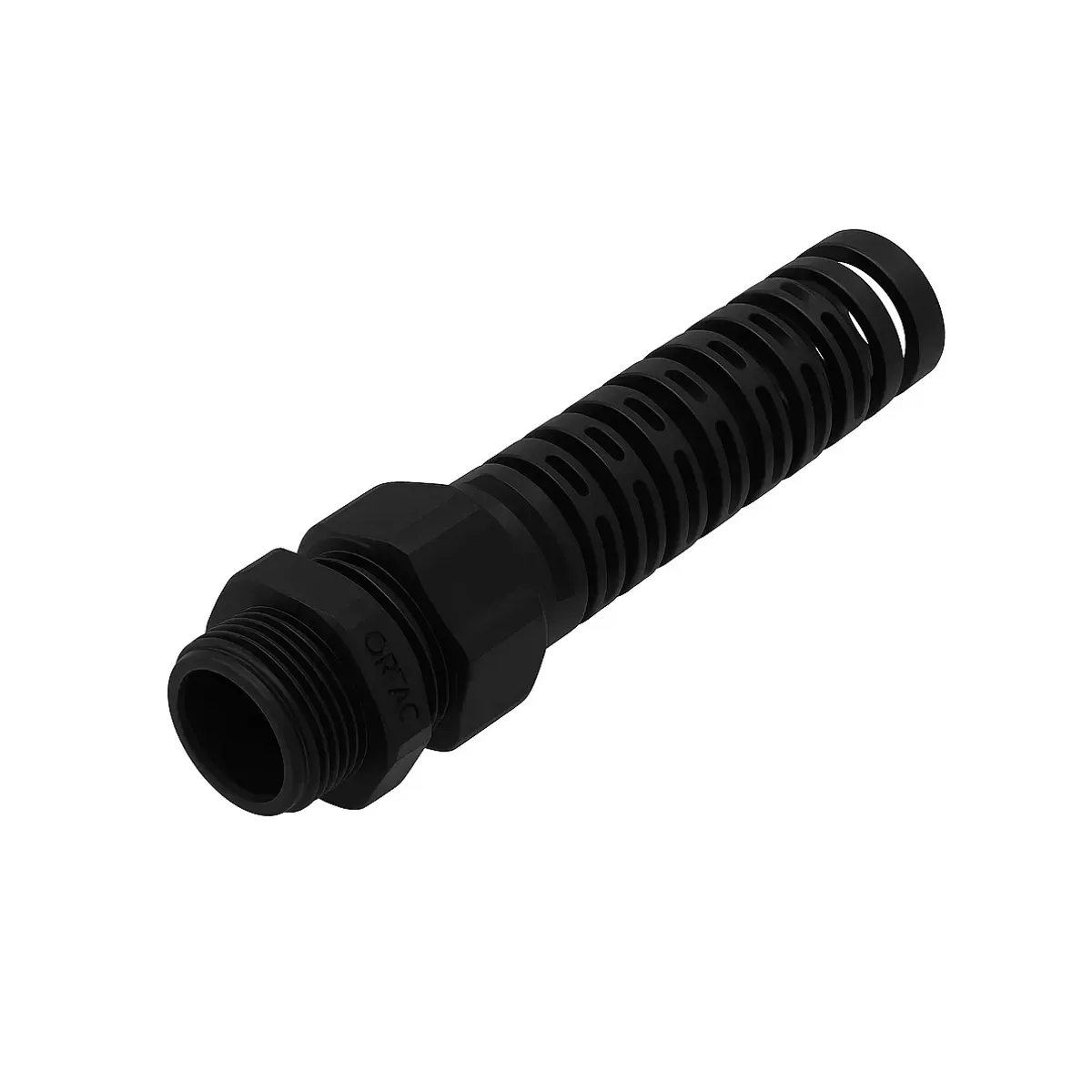

Ortaç M 16 Spiral-End Watertight Type Cable Gland - (100 pcs/box)
- Brand: Ortaç
- SKU: OMRB19
- MPN: OMRB19
- Price: 1710.10 TRY + VAT · incl. VAT 2052.12 TRY
- Availability: Made to order
- Spiral-End Sealed Type Glands
- Selection guide: Spiral-End Sealed Type Glands Selection Guide: Technical Criteria & Application Standards
Ortaç M 16 Spiral-End Watertight Type Cable Gland - (100 pcs/box). Spiral-End Watertight Type Glands are used for sealing and strain relief at panel walls, machine housings and installation routes. Technical values: Gland Size Type Metric 16. The product is sold in packs of 100. Stock code: OMRB19.
| Cable Gland Thread Type | Metrik 16 |
|---|---|
| Mounting Diameter | 16.5 mm |
| Thread Length | 10 mm |
| Clamping Diameter | 5–10 mm |
| Thread Size | M 16 x 1,5 |
| Wrench Size | 22 mm |
| RAL Number | RAL 9005 |
| Color | Black |
| Cover Material | Polyamid PA6 V2 |
| Housing Material | Polyamid PA6 V2 |
| Seal Material | Kıvrılma dayanımı için özel TPV conta |
| Connection Thread | Metrik (EN 60423) |
| IP Rating | IP68 - 5 bar (O-ring ile) |
| Halogen Free | Yes |
