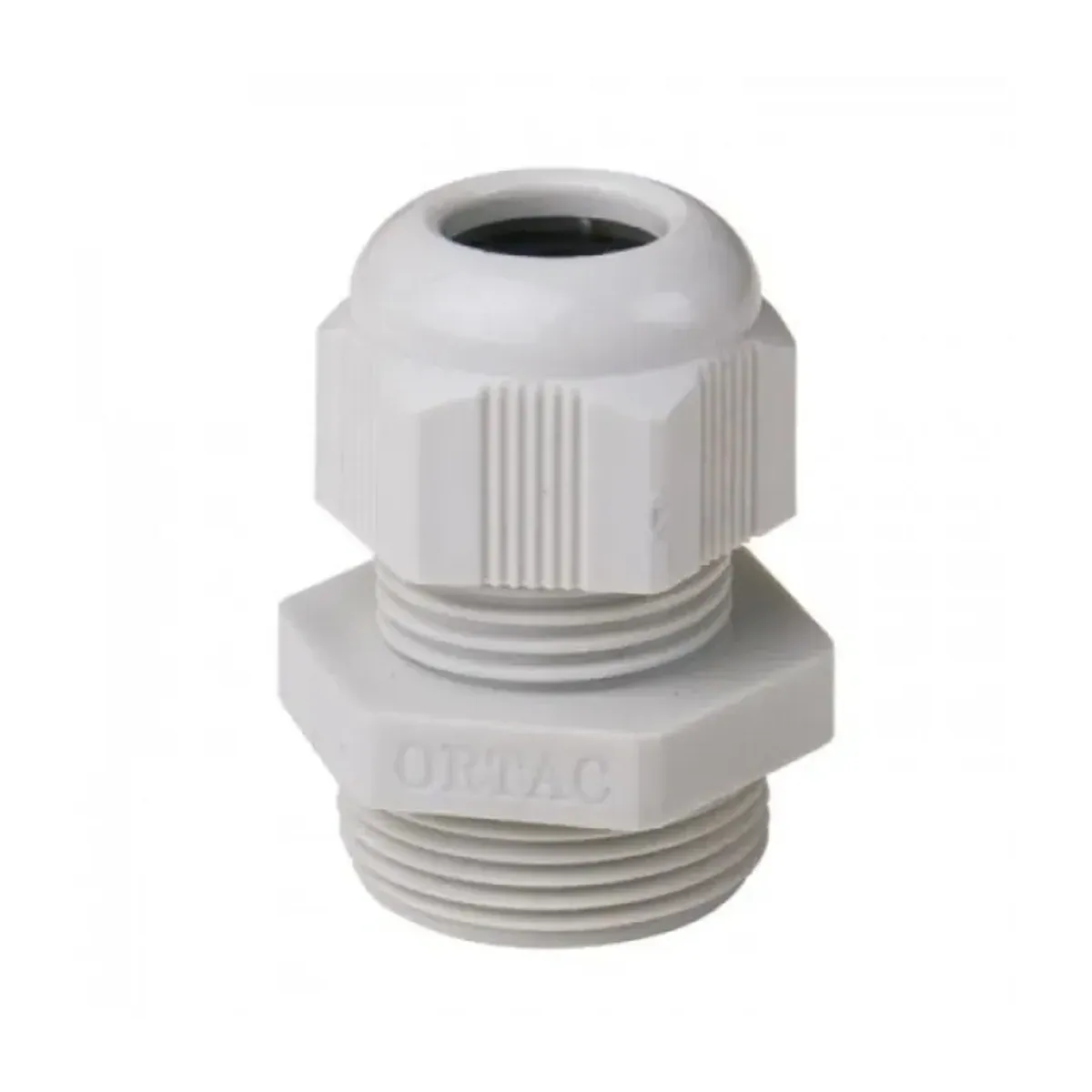

Ortaç M 40 Euro Metric Watertight Type Cable Gland - (20 pcs/box)
- Brand: Ortaç
- SKU: OMRGE8
- MPN: OMRGE8
- Price: 1371.56 TRY + VAT · incl. VAT 1645.87 TRY
- Availability: Made to order
- Euro-Metric Sealed Type Glands
- Ortaç Euro-Metric Sealed Type Glands
- Selection guide: Euro-Metric Sealed Type Glands Selection Guide: Technical Criteria and Engineering Practice
Ortaç M 40 Euro Metric Watertight Type Cable Gland - (20 pcs/box). Euro Metric Watertight Type Glands are used for sealing and strain relief on enclosure walls, machine housings and installation routes. Technical values: Gland Size Type Metric 40. The product is sold in packs of 20. Stock code: OMRGE8.
| Cable Gland Thread Type | Metrik 40 |
|---|---|
| Mounting Diameter | 40.5 mm |
| Thread Length | 10 mm |
| Clamping Diameter | 19–28 mm |
| Thread Size | M 40 x 1,5 |
| Wrench Size | 46 mm |
| RAL Number | RAL 7001 |
| Color | Grey |
| Cover Material | Polyamid PA6 V2 |
| Housing Material | Polyamid PA6 V2 |
| Seal Material | TPV (toz dayanımı için özel TPV conta) |
| Connection Thread | Metrik (EN 60423) |
| IP Rating | IP68 - 5 bar (O-ring ile) |
| Halogen Free | Yes |
