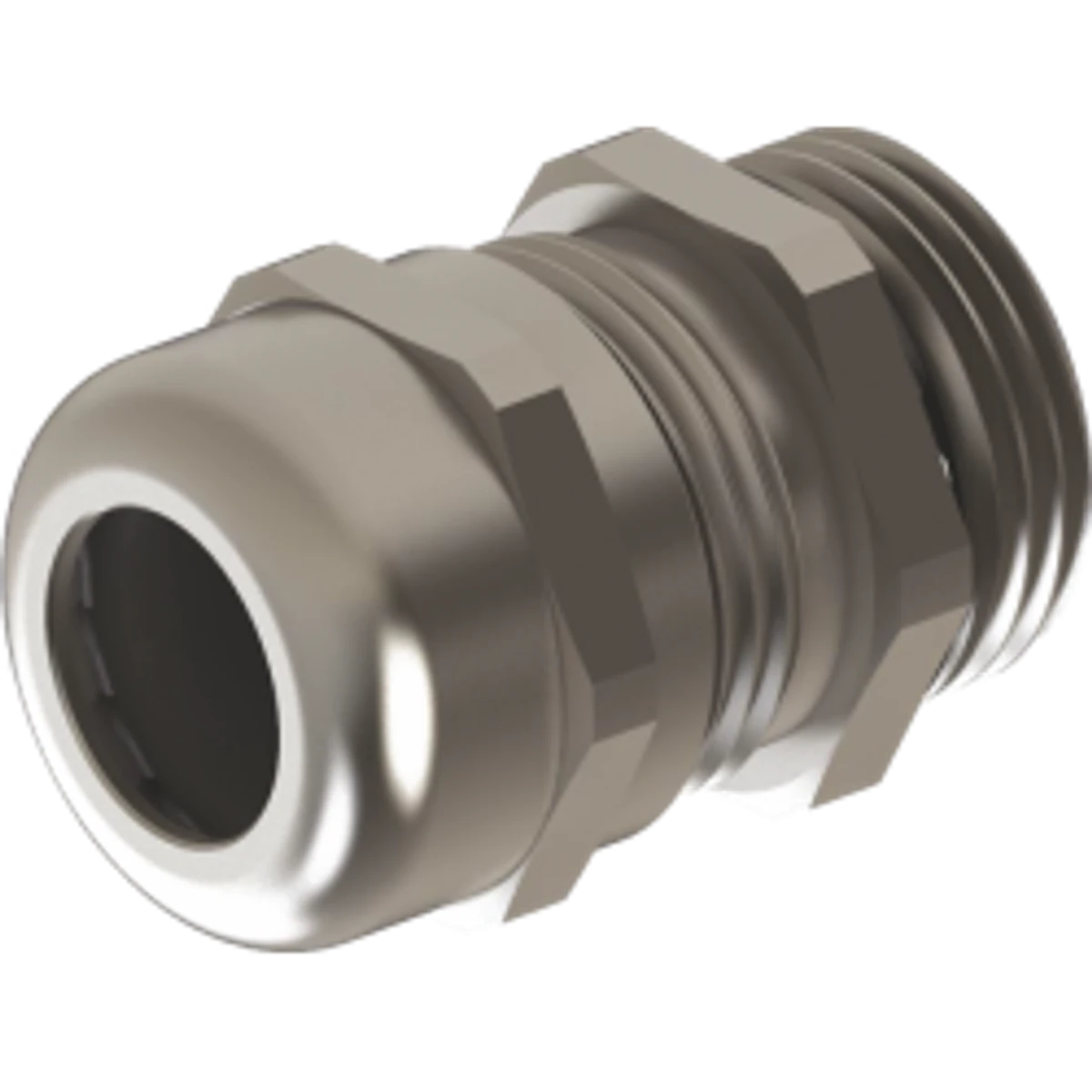

Ortaç M 63 Stainless Steel Cable Gland (5 pcs/box)
- Brand: Ortaç
- SKU: OMSG08
- MPN: OMSG08
- Price: 13438.88 TRY + VAT · incl. VAT 16126.66 TRY
- Availability: Made to order
- Stainless Steel Glands
- Selection guide: Stainless Steel Glands Selection Guide: Technical Criteria & Application Standards
Ortaç M 63 Stainless Steel Cable Gland (5 pcs/box). Stainless Steel Glands are used for sealing and strain relief at panel walls, machine housings and installation routes. The product is sold in packs of 5. Stock code: OMSG08.
| Mounting Diameter | 63.5 mm |
|---|---|
| Thread Length | 14 mm |
| Clamping Diameter | 33–44 mm |
| Thread Size | M 63 x 1,5 |
| Cover Material | Paslanmaz Çelik (1.4305/AISI303-1.4404/AISI316L) |
| Clamping Insert Material | Polyamid PA6 V2 |
| Seal Material | TPV |
| Housing Material | Paslanmaz Çelik (1.4305/AISI303-1.4404/AISI316L) |
| O-ring Material | NBR |
| Connection Thread | Metrik (EN 60423) |
| IP Rating | IP68 - 5 bar |
| Temperature Range | -20 °C +100 °C / -40 °C +150 °C |
