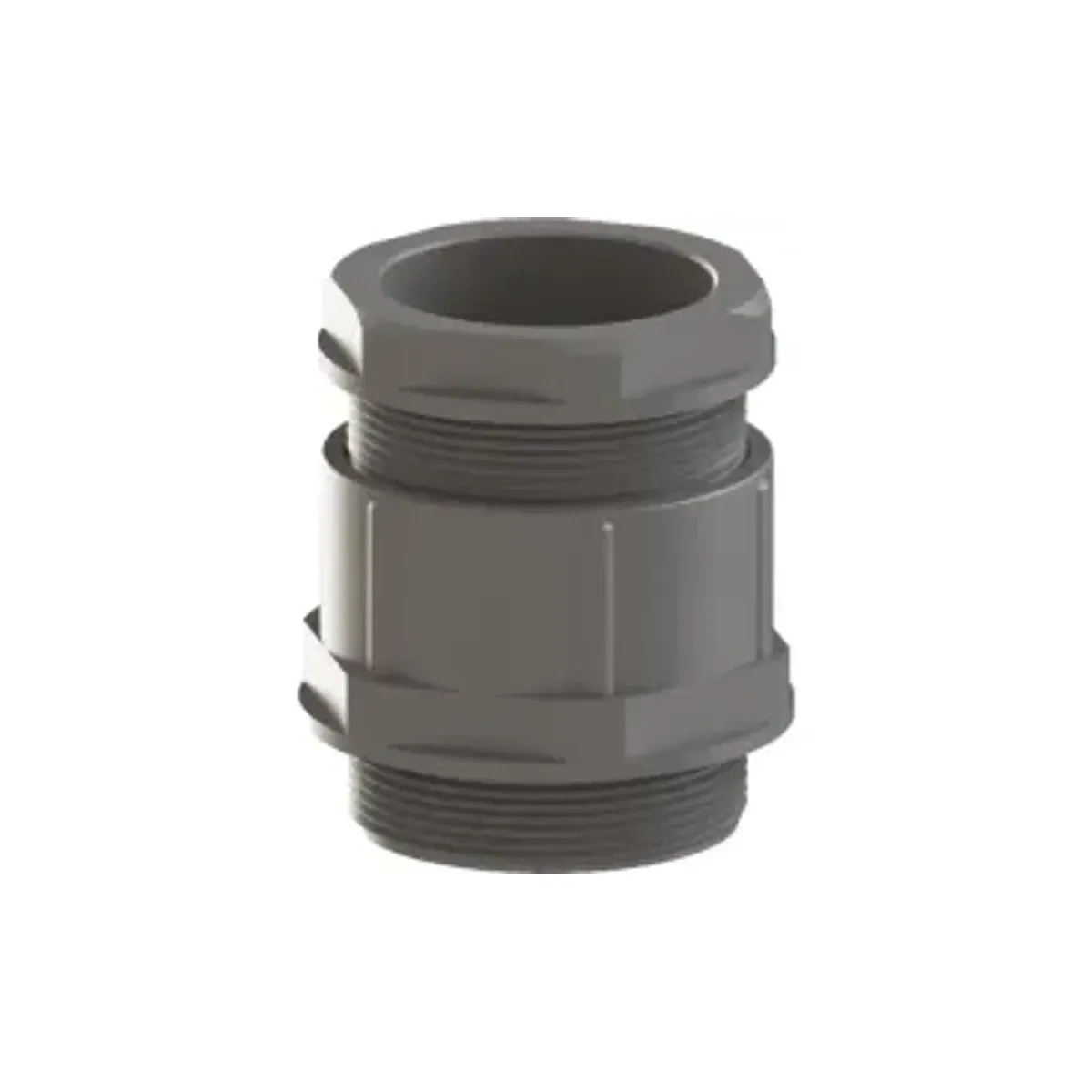

Ortaç PG 36 Straight Type Cable Gland - (20 pcs/box)
- Brand: Ortaç
- SKU: ORL18
- MPN: ORL18
- Price: 1196.92 TRY + VAT · incl. VAT 1436.30 TRY
- Availability: In stock
- Straight Type Glands
- Selection guide: Cable Gland Selection Guide
Ortaç PG 36 Straight Type Cable Gland - (20 pcs/box). Straight Type Glands are used for sealing and strain relief at panel walls, machine housings and installation routes. Technical values: Gland Size Type PG 36. The product is sold in packs of 20. Stock code: ORL18.
| Cable Gland Thread Type | PG 36 |
|---|---|
| Mounting Diameter | 47.5 mm |
| Thread Length | 13 mm |
| Clamping Diameter | 25–32 mm |
| Wrench Size | 53 mm |
| RAL Number | RAL 7035 |
| Color | Açık Grey |
| Cover Material | Polyamid PA6 V2 + 30% GF |
| Housing Material | Polyamid PA6 V2 |
| Seal Material | TPV |
| Washer Material | Polystyrene |
| Connection Thread | PG (DIN 40430) |
| IP Rating | IP54 |
| Temperature Range | -20 °C +100 °C |
| UV Resistance | Yes |
