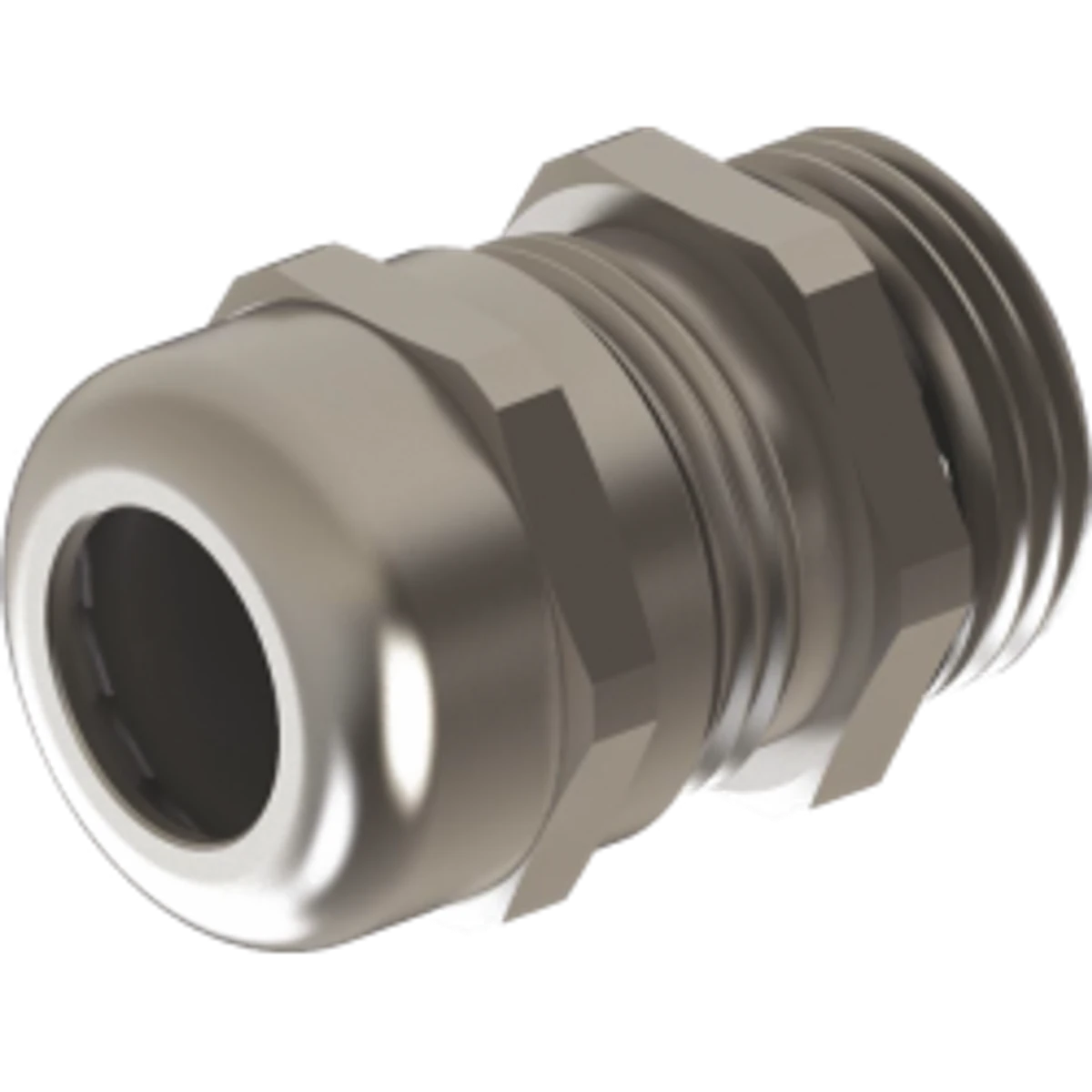

Ortaç PG 42 Stainless Steel Cable Gland (5 pcs/box)
- Brand: Ortaç
- SKU: OPSG09
- MPN: OPSG09
- Price: 12000.87 TRY + VAT · incl. VAT 14401.04 TRY
- Availability: Made to order
- Stainless Steel Glands
- Selection guide: Stainless Steel Glands Selection Guide: Technical Criteria & Application Standards
Ortaç PG 42 Stainless Steel Cable Gland (5 pcs/box). Stainless Steel Cable Glands are used for sealing and strain relief at panel walls, machine housings and installation routes. The product is sold in packs of 5. Stock code: OPSG09.
| Mounting Diameter | 54.5 mm |
|---|---|
| Thread Length | 12 mm |
| Clamping Diameter | 30–38 mm |
| Thread Size | PG 42 |
| Wrench Size | 60 mm |
| Cover Material | Paslanmaz Çelik (1.4305/AISI303-1.4404/AISI316L) |
| Clamping Insert Material | Polyamid PA6 V2 |
| Seal Material | TPV |
| Housing Material | Paslanmaz Çelik (1.4305/AISI303-1.4404/AISI316L) |
| O-ring Material | NBR |
| Connection Thread | PG (DIN 40430) |
| IP Rating | IP68 - 5 bar |
| Temperature Range | -20 °C +100 °C / -40 °C +150 °C |
