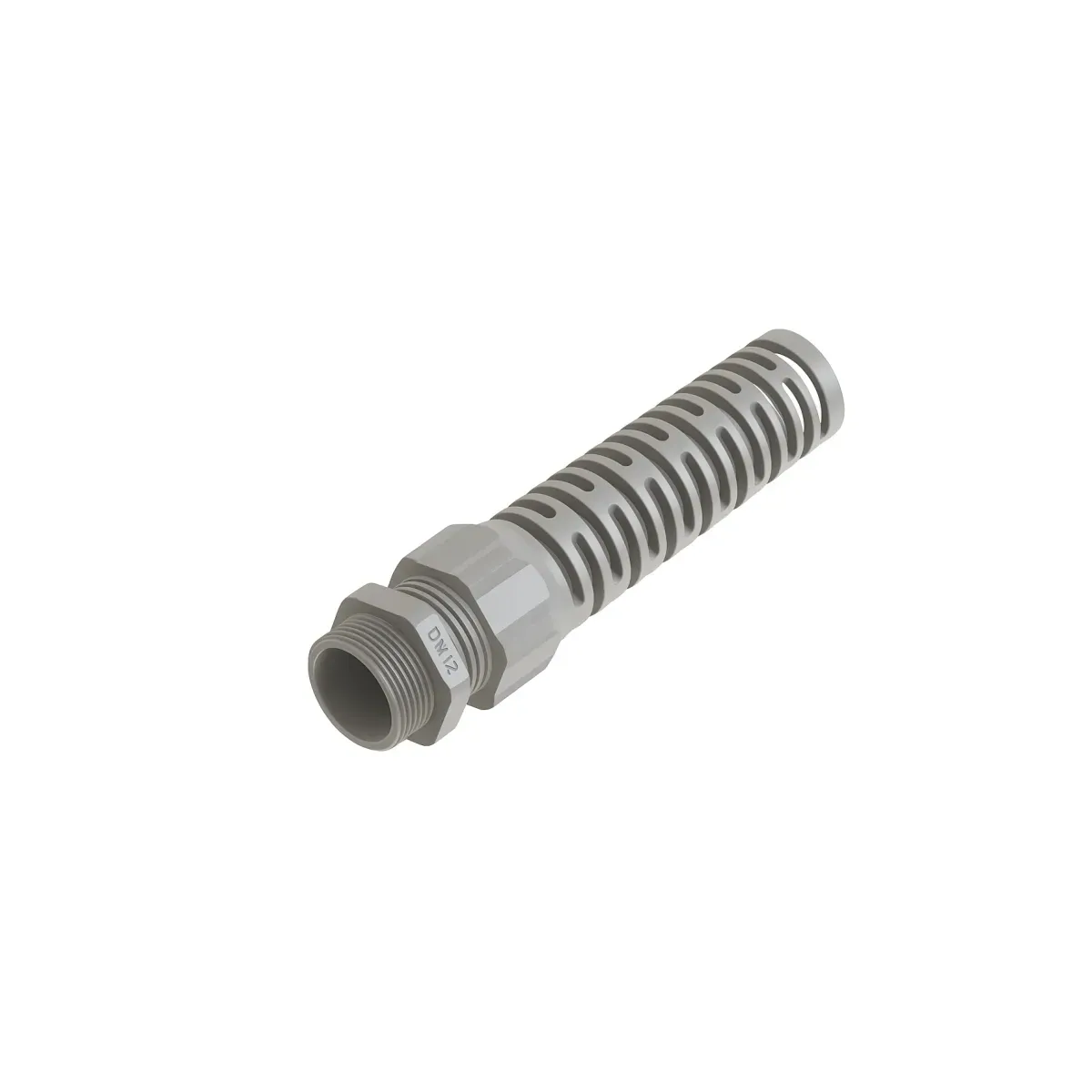

Ortaç PG 7 Spiral-End Watertight Type Cable Gland - (200 pcs/box)
- Brand: Ortaç
- SKU: ORG19
- MPN: ORG19
- Price: 2597.80 TRY + VAT · incl. VAT 3117.36 TRY
- Availability: In stock
- Spiral-End Sealed Type Glands
- Selection guide: Spiral-End Sealed Type Glands Selection Guide: Technical Criteria & Application Standards
Ortaç PG 7 Spiral-End Watertight Type Cable Gland - (200 pcs/box). Spiral-End Watertight Type Glands are used for sealing and strain relief at panel walls, machine housings and installation routes. Technical values: Gland Size Type PG 7. The product is sold in packs of 200. Stock code: ORG19.
| Cable Gland Thread Type | PG 7 |
|---|---|
| Mounting Diameter | 13 mm |
| Thread Length | 8 mm |
| Clamping Diameter | 3–6.5 mm |
| Wrench Size | 15 mm |
| RAL Number | RAL 7001 |
| Color | Grey |
| Cover Material | Polyamid PA6 V2 |
| Housing Material | Polyamid PA6 V2 |
| Seal Material | Kıvrılma dayanımı için özel TPV conta |
| Connection Thread | PG (DIN 40430) |
| IP Rating | IP68 - 5 bar (O-ring ile) |
| Temperature Range | -20 °C +100 °C / -30 °C +150 °C (kısa süreli ısıya direnci) |
| Halogen Free | Yes |
