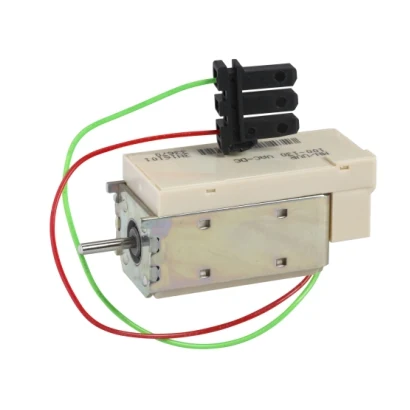

Schneider Electric 33671 MN undervoltage release coil (fixed tip,200-250VAC/DC)
- Brand: Schneider Electric
- SKU: 33671
- MPN: 33671
- Price: 8139.80 TRY + VAT · incl. VAT 9767.76 TRY
- Availability: In stock
- Shunt Trip Coils
- Schneider Electric Shunt Trip Coils
- Selection guide: Shunt Trip Coils Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric 33671 Teknik Veri Föyü (PDF)
Schneider Electric 33671 MN undervoltage release coil (fixed tip,200-250VAC/DC). Technical specifications of this model: Coil Voltage: 200-250VAC/DC
| Coil Voltage | 200-250 VAC/ DC |
|---|---|
| Series | ComPacT yeni nesil |
| Product Type | Gerilim bobini |
| Device Application | Kontrol |
| Control Type | Standard |
| Rated Control Circuit Voltage (Uc) | 200…250 V AC 50/60 Hz; 200…250 V DC |
| Mounting Type | Fixed |
| Compatible Series | Compact ComPact NS630b...1600; Compact ComPact NS1600b...3200 |
| Operating Threshold Voltage | 0,35…0,7 x Un açma; 0,85 x Un kapama |
| Response Time | 90 ms +/- 5 % için Compact NS630b...1600; 90 ms +/- 5 % için Compact NS1600b...3200; 40 ms +/- 5 % için Masterpact NT; 90 ms +/- 5 % için Masterpact NW |
| Holding Power Consumption | 4.5 VA |
