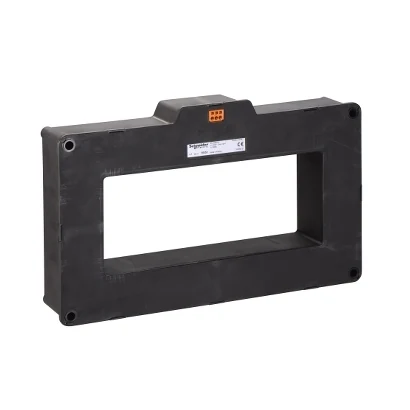

Schneider Electric 56054 rectangular toroid 470 X 160 mm
- Brand: Schneider Electric
- SKU: 56054
- MPN: 56054
- Price: 312414.71 TRY + VAT · incl. VAT 374897.65 TRY
- Availability: In stock
- Toroidal Current Transformers
- Selection guide: Toroidal Current Transformers Selection Guide: Technical Criteria & Application Standards
- Schneider Electric 56054 Teknik Veri Föyü (PDF)
Schneider Electric 56054 rectangular toroid 470 X 160 mm.
| Series | VigiPacT |
|---|---|
| Product Type | Toprak kaçağı akım sensörü |
| Device Application | Ekipman izleme ve kontrolü |
| Current Sensor Type | Dikdörtgen sensör |
| Rated Operational Current (Ie) | 3200 A |
| Mains Frequency | 50/60 Hz; 400 Hz |
| Rated Short-Circuit Withstand Current (Ik) | 100 kA için 0,5 sn |
| Residual Short-Circuit Withstand Current | 85 kA / 0,5 sn |
| Rated Insulation Voltage (Ui) | 1000 V |
| Overvoltage category | IV |
| Rated Lightning Impulse Withstand Voltage (Up) | 12 kV |
| Mounting Method | Sabit (kablolar); Sabit (busbar) |
| Connection Terminals | Vidalı bağlantı 0,5…2,5 mm² |
| Product Weight | 20 kg |
| Height | Dış: 266 mm; Iç: 160 mm |
| Width | Dış: 576 mm; Iç: 470 mm |
| Depth | 72 mm |
| IP Rating | Gövde: IP30; Konnektörler: IP20 |
| Pollution Degree | Seviye 3 (IEC 60664-1) |
| Operating Ambient Temperature | -35…80 °C |
| Storage Temperature | -55…100 °C |
| Standards | IEC60947-2 |
| Certifications | CE |
