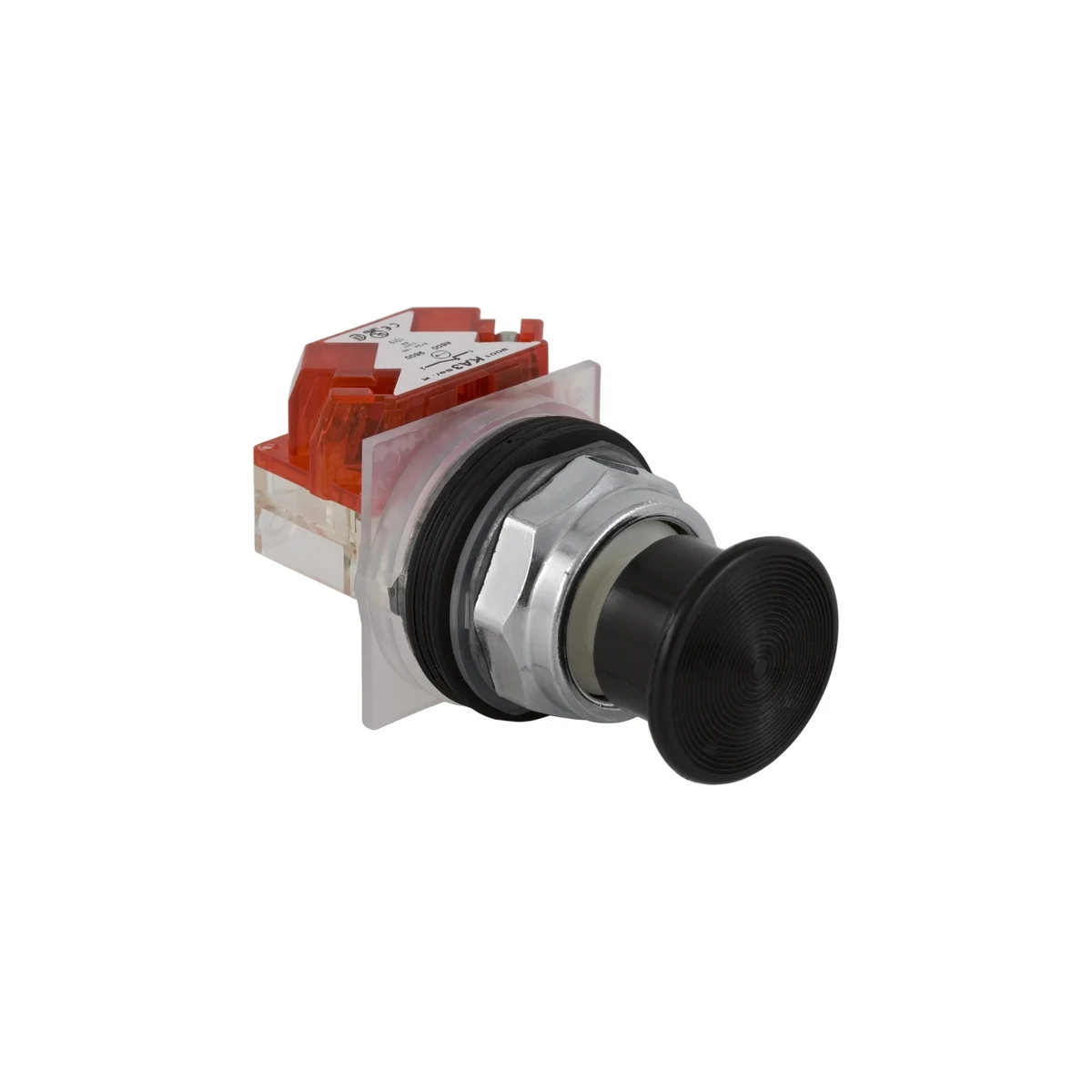

Schneider Electric 9001KR24BH13 Spring-Return Mushroom Push Button 35 Black
- Brand: Schneider Electric
- SKU: 9001KR24BH13
- MPN: 9001KR24BH13
- Price: 7672.76 TRY + VAT · incl. VAT 9207.31 TRY
- Availability: Made to order
- Mushroom Head Push Buttons
- Selection guide: Mushroom Head Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric 9001KR24BH13 Teknik Veri Föyü (PDF)
Schneider Electric 9001KR24BH13 Spring-Return Mushroom Push Button 35 Black.
| Series | Harmony 9001K |
|---|---|
| Product Type | Push-buton |
| Operating Mechanism Type | yaylı kurma |
| Operator Profile | Black mantar Ø 35 mm, işaretsiz |
| Bezel Material | Metal |
| Mounting Diameter | 30 mm |
| Terminal Designation (ISO) | (13-14-11-12)OF |
| Product Weight | 0.126 kg |
| Operating Position | Herhangi bir konum |
| Signalling Head Shape | Round |
| Operator Additional Information | Ayar vidalı vida ile vidalı plastik |
| Contact Arrangement | 1CO |
| Positive Opening | None |
| Mechanical Endurance | 5000000 cycles |
| Connection Terminals | Vida kelepçesi terminalleri, 1 x 0,22…2 x 1,5 mm² (IEC 60947-1) |
| Tightening Torque | 0,8 N.m (IEC 60947-1) |
| Screw Head Shape | Çapraz slotlu |
| Contact Material | Gümüş alaşım kontaklar |
| Short-Circuit Protection | 10 A kartuş sigortası (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A |
| Rated Insulation Voltage (Ui) | 250 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 2,5 kV (IEC 60947-1) |
| Rated Operational Current (Ie) | 3 A @ 240 V, AC-15, A600-Q600 (NEMA); 0,55 A @ 125 V, DC-13, A600-Q600 (NEMA) |
| Device Presentation | Angled |
| Head / Lens Colour | Black |
| Dimension | 30 mm |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…70 °C |
| IP Rating | IP65/IP66 |
| NEMA protection rating | NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4; NEMA 6 |
| Standards | IEC 60947-5-1; IEC 60947-1; IEC 60947-5-4; JIS C 4520; JIS C 852; UL 508; CSA C22.2 No 14 |
| Certifications | NEMA; UL 508 |
| Vibration Resistance | 7 gn (f= 2…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 50 gn (IEC 60068-2-27) |
