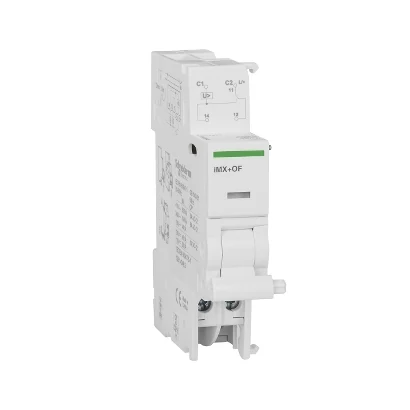

Schneider Electric A9A26946 Acti9 Accessories, iMX + OF shunt trip coil + OF auxiliary contact
- Brand: Schneider Electric
- SKU: A9A26946
- MPN: A9A26946
- Price: 1495.41 TRY + VAT · incl. VAT 1794.49 TRY
- Availability: Made to order
- Auxiliary Contacts
- Schneider Electric Auxiliary Contacts
- Selection guide: Switchgear Auxiliary and Trip Alarm Contacts Selection Guide
- Schneider Electric A9A26946 Teknik Veri Föyü (PDF)
Schneider Electric A9A26946 Acti9 Accessories, iMX + OF shunt trip coil + OF auxiliary contact. Technical specifications of this model: Series: Acti9
| Series | Acti9 |
|---|---|
| Product Type | AK kontaklı şönt açma bobini |
| Signalling Contact Arrangement | 1 K/A |
| Rated Current (In) | AC-12 3 A at 415 V, AC 50 Hz; AC-12 6 A at 100 V, AC 50 Hz; AC-12 6 A at 230 V, AC 50 Hz; DC-12 1 A at 110 V, DC; DC-12 1 A at 130 V, DC |
| Rated Control Circuit Voltage (Uc) | 110…415 V AC 50/60 Hz; 110…130 V DC |
| Number of 9 mm Pitches | 2 |
| Compatible Series | Acti9 İC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 İC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40 |
| On-device Signalling | Işlem göstergesi |
| Mounting Type | Takılabilir |
| Mounting Support | DIN rayı |
| Comb Busbar Compatibility | Üst: EVET |
| Width | 18 mm |
| Color | White |
| Tightening Torque | 1 N.m |
| Standards | EN/IEC 60947-1; EN/IEC 60947-5-1 |
| Tropical Climate Resistance | 2 (EN/IEC 60947-5-1) |
| Relative Humidity | 95 % @ 55 °C |
| Operating Ambient Temperature | -35…70 °C |
| Storage Temperature | -40…85 °C |
