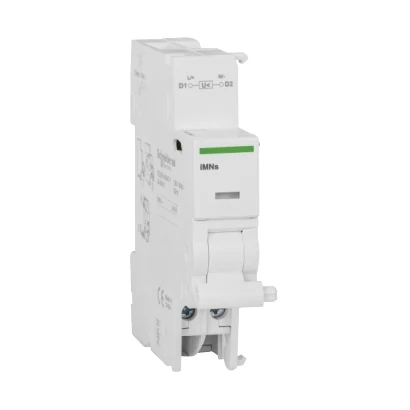

Schneider Electric A9A26963 Acti9 Accessories, iMNs time-delayed undervoltage release coil
- Brand: Schneider Electric
- SKU: A9A26963
- MPN: A9A26963
- Price: 2126.86 TRY + VAT · incl. VAT 2552.23 TRY
- Availability: Made to order
- Switch Accessories
- Schneider Electric Switch Accessories
- Selection guide: Switch and Breaker Accessories Selection Guide
- Schneider Electric A9A26963 Teknik Veri Föyü (PDF)
Schneider Electric A9A26963 Acti9 Accessories, iMNs time-delayed undervoltage release coil. Technical specifications of this model: Series: Acti9
| Series | Acti9 |
|---|---|
| Product Type | Düşük Gerilim Bobini |
| Rated Control Circuit Voltage (Uc) | 220…240 V AC 50/60 Hz |
| Control Type | Gecikmeli |
| Number of 9 mm Pitches | 2 |
| Compatible Series | Acti9 İC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 İC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40 |
| On-device Signalling | Işlem göstergesi |
| Mounting Type | Takılabilir |
| Mounting Support | DIN rayı |
| Comb Busbar Compatibility | Üst ve alt: Evet |
| Width | 18 mm |
| Color | White |
| Tightening Torque | 1 N.m |
| Standards | EN/IEC 60947-1 |
| Tropical Climate Resistance | 2 (EN/IEC 60947-5-1) |
| Relative Humidity | 95 % @ 55 °C |
| Operating Ambient Temperature | -35…70 °C |
| Storage Temperature | -40…85 °C |
