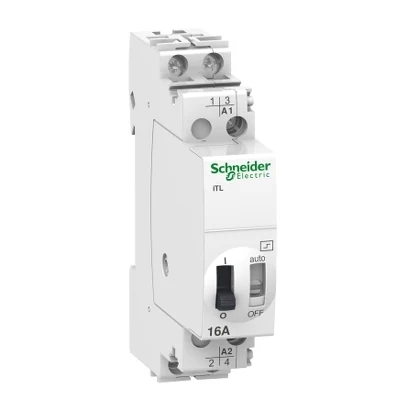

Schneider Electric A9C30112 iTL Impulse Relays, 16A 2P 24VAC/12VDC
- Brand: Schneider Electric
- SKU: A9C30112
- MPN: A9C30112
- Price: 1912.57 TRY + VAT · incl. VAT 2295.08 TRY
- Availability: Made to order
- Step and Impulse Relays
- Schneider Electric Step and Impulse Relays
- Selection guide: Step and Impulse Relays Selection Guide: Technical Criteria & Application Standards
- Schneider Electric A9C30112 Teknik Veri Föyü (PDF)
Schneider Electric A9C30112 iTL Impulse Relays, 16A 2P 24VAC/12VDC.
| Series | Acti9 |
|---|---|
| Product Type | Darbe Rölesi |
| Device Application | Standard |
| Pole Arrangement | 2P |
| Power Pole Contact Arrangement | 2 NA |
| Rated Current (In) | 16 A |
| Current Type | AC |
| Rated Control Circuit Voltage (Uc) | 24 V AC 50/60 Hz; 12 V DC |
| Mains Frequency | 50/60 Hz |
| Rated Operational Voltage (Ue) | 250 V AC 50/60 Hz |
| Control Type | Uzaktan ve manuel kontrol; Bobin bağlantısının kesilmesi |
| Control Signal Type | Darbe |
| Switching Frequency | 5 anahtarlama işlemi/dakika; 100 anahtarlama işlemi/gün |
| Impulse Duration | 50 ms...1 s |
| Remote Control Type | Işıklı basmalı düğme 3 mA |
| On-device Signalling | AÇIK/KAPALI göstergesi |
| Mounting Type | Fixed |
| Mounting Support | DIN rayı |
| Number of 9 mm Pitches | 2 |
| Height | 84 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Electrical Endurance | AC-21: 200000 cycles; AC-22: 100000 cycles |
| Cable Stripping Length | 11 mm |
| Tightening Torque | 1 N.m |
| Compatible Series | Acti9 İATEt; Acti9 iATLc; Acti9 iATLc+s; Acti9 iATLm; Acti9 iATLs; Acti9 iETL iTL 16; Acti9 iATLc+c |
| Standards | EN 669-2-2; EN 669-1 |
| Certifications | GOST |
| Quality Labels | IMQ; CEBEC; NF; KEMA; VDE |
| Noise Level | 60 dB |
| IP Rating | IP20 (IEC 60529 (on opening)); IP40 (IEC 60529 (panoda)) |
| Pollution Degree | 3 |
| Tropical Climate Resistance | 2 |
| Relative Humidity | 95 % @ 55 °C |
| Operating Ambient Temperature | -20…50 °C |
| Storage Temperature | -40…70 °C |
