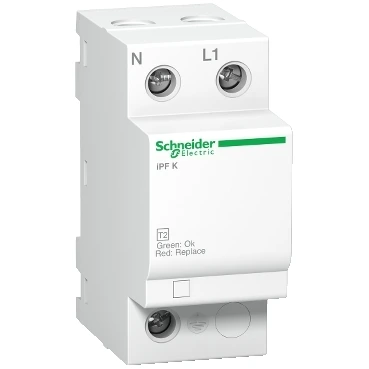

Schneider Electric A9L15687 IPF 40 40 KA 340V 1P N Surge Arrester
- Brand: Schneider Electric
- SKU: A9L15687
- MPN: A9L15687
- Price: 5637.81 TRY + VAT · incl. VAT 6765.37 TRY
- Availability: Made to order
- Low Voltage Surge Arresters
- Schneider Electric Low Voltage Surge Arresters
- Selection guide: What Is a Surge Arrester? Types and Selection Guide
- Schneider Electric A9L15687 Teknik Veri Föyü (PDF)
Schneider Electric A9L15687 IPF 40 40 KA 340V 1P N Surge Arrester.
| Series | IPF K |
|---|---|
| Product Type | Kesinti durdurucu |
| Device Application | Distribution |
| Standards | IEC 61643-11:2011 |
| Certifications | EAC; CE |
| Pole Arrangement | 1P+N |
| Remote Signaling | None |
| Surge Arrester Application | Elektrikli dağıtım ağı |
| Earthing System | TT; TN-S |
| Surge Arrester Class | Tip 2 |
| Surge Arrester Technology | MOV + GDT |
| Rated Operational Voltage (Ue) | 230 V AC (+/- 10 %) @ 50/60 Hz |
| Nominal Discharge Current (In) | Ortak mod: 15 kA (L/PE); Ortak mod: 15 kA (N/PE); Diferansiyel mod: 15 kA (L/N) |
| Maximum Discharge Current (Imax) | Ortak mod: 40 kA L/PE; Ortak mod: 40 kA N/PE; Diferansiyel mod: 40 kA L/N |
| Maximum Continuous Operating Voltage (Uc) | Ortak mod: 260 V N/PE; Diferansiyel mod: 340 V L/N |
| Temporary Overvoltage (Ut) | 337 V L/N 5 s dayanım; 442 V L/PE 5 s dayanım; 1200 V N/PE 200 ms dayanım; 1453 V L/PE 200 ms dayanım |
| Disconnecting Device Type | Ilgili devre kesici İK60N 40 A egim C - Icu 6 kA; Ilişkili sigorta GG 63 A - Icu 25 kA |
| Signalling Circuit Voltage | 0,25 A/250 V AC 50/60 Hz |
| Mounting Method | Takılabilir (DIN rayı) |
| Number of 9 mm Pitches | 4 |
| Height | 81 mm |
| Width | 36 mm |
| Depth | 69 mm |
| Product Weight | 210 g |
| Color | White (RAL 9003) |
| Earth Leakage Current (Ipe) | 0.003 mA |
| Connection Terminals | Tünel tipi terminal (üst veya alt) 25 mm² sert; Tünel tipi terminal (üst veya alt) 16 mm² esnek; Tünel tipi terminal (üst veya alt) 16 mm² halkalı ve esnek |
| Cable Stripping Length | 11 mm |
| Tightening Torque | 3,5 N.m |
| IK Impact Protection | IK03 (IEC 62262) |
| Relative Humidity | 5…95 % |
| Operating Altitude | 2000 m |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -40…85 °C |
