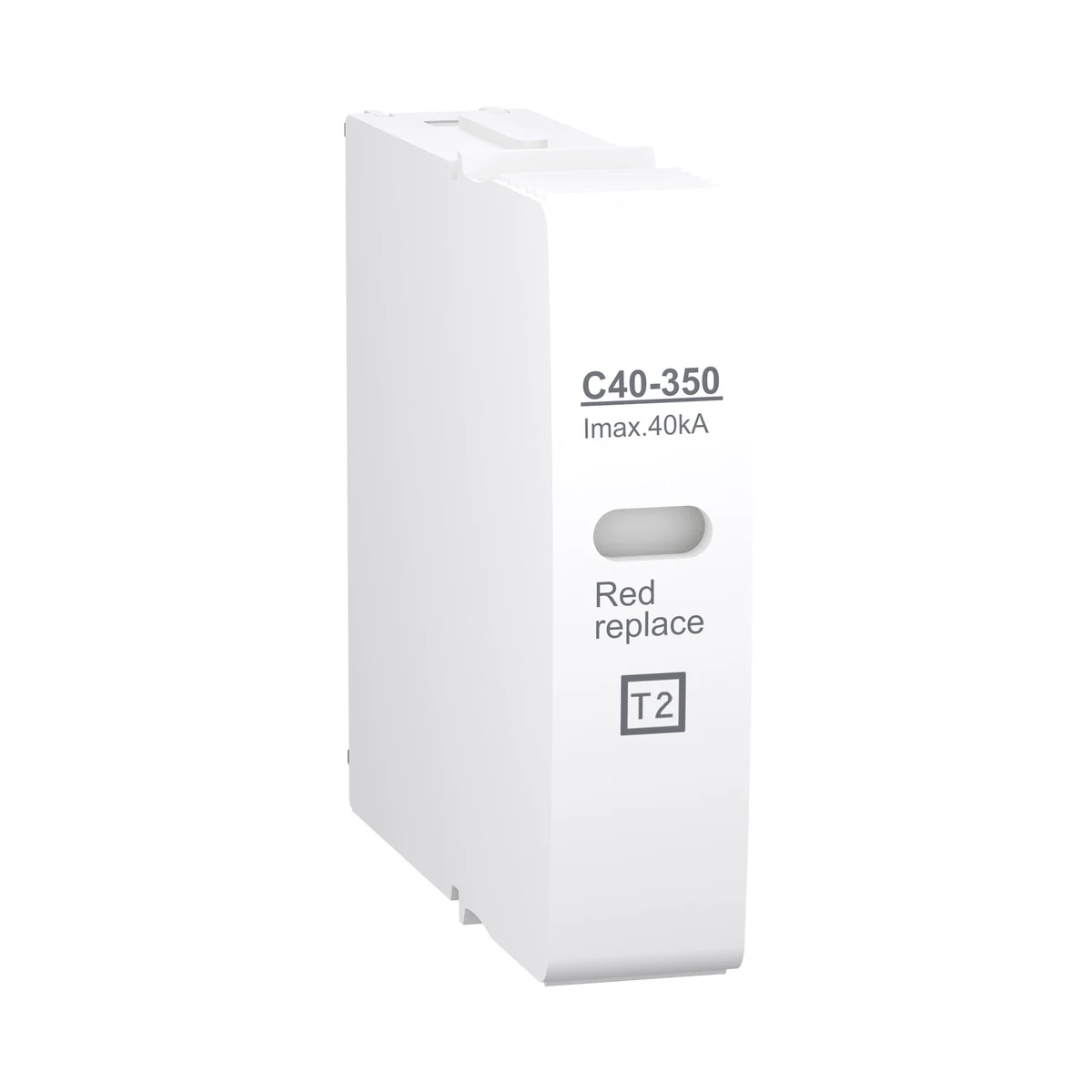

Schneider Electric A9L16310 iQuickPRD 40r cartridge
- Brand: Schneider Electric
- SKU: A9L16310
- MPN: A9L16310
- Price: 4108.82 TRY + VAT · incl. VAT 4930.58 TRY
- Availability: Made to order
- Low Voltage Surge Arresters
- Schneider Electric Low Voltage Surge Arresters
- Selection guide: What Is a Surge Arrester? Types and Selection Guide
- Schneider Electric A9L16310 Teknik Veri Föyü (PDF)
Schneider Electric A9L16310 iQuickPRD 40r cartridge.
| Series | Acti9 |
|---|---|
| Product Type | Kartuş |
| Compatible Series | Acti9 İQuick PRD40r |
| Surge Arrester Application | Elektrikli dağıtım ağı |
| Standards | IEC 61643-1; EN 61643-11 |
| Certifications | KEMA-KEUR; NF |
| Surge Arrester Class | Tip 2 |
| Surge Arrester Technology | TAŞI |
| Intended Field of Application | Surge protection device İQuick PRD40r 1P + N; Surge protection device İQuick PRD40r 3P; Surge protection device İQuick PRD40r 3P + N |
| Earthing System | TN; TT |
| Rated Operational Voltage (Ue) | 230 V AC 50 Hz |
| Nominal Discharge Current (In) | 20 kA |
| Maximum Discharge Current (Imax) | 40 kA |
| Maximum Continuous Operating Voltage (Uc) | 350 V |
| Local Signalling | Bayrak (beyaz/kırmızı) |
| Mounting Type | Takılabilir |
| Mounting Support | SPD modülü içine |
| Number of 9 mm Pitches | 1,3 |
| Height | 50 mm |
| Width | 12 mm |
| Depth | 57 mm |
| Color | White (RAL 9003) |
| Material | PBT (polibütilen tereftalat) |
| Response Time | < 25 ns |
| IP Rating | IP20 ön yüz |
| Relative Humidity | 5…95 % |
| Operating Altitude | 0–2000 m |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -40…70 °C |
