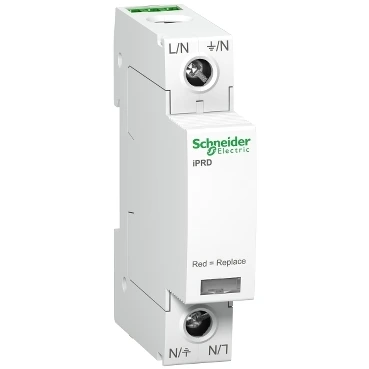

Schneider Electric A9L65101 iPRD65r 1P
- Brand: Schneider Electric
- SKU: A9L65101
- MPN: A9L65101
- Price: 4703.73 TRY + VAT · incl. VAT 5644.48 TRY
- Availability: Made to order
- Low Voltage Surge Arresters
- Schneider Electric Low Voltage Surge Arresters
- Selection guide: What Is a Surge Arrester? Types and Selection Guide
- Schneider Electric A9L65101 Teknik Veri Föyü (PDF)
Schneider Electric A9L65101 iPRD65r 1P.
| Series | İPRD |
|---|---|
| Product Type | Tak-çıkar kartuşlu kesinti durdurucu |
| Device Application | Distribution |
| Standards | EN 61643-11:2012; IEC 61643-11:2011 |
| Certifications | CE |
| Quality Labels | KEMA-KEUR; NF |
| Pole Arrangement | 1P |
| Remote Signaling | Available |
| Signalling Contact Arrangement | 1 SD (1 K/A) |
| Surge Arrester Application | Elektrikli dağıtım ağı |
| Earthing System | IT 230; TN-C |
| Surge Arrester Class | Tip 2 |
| Surge Arrester Technology | TAŞI |
| Rated Operational Voltage (Ue) | 230 V AC (+/- 10 %) @ 50/60 Hz |
| Nominal Discharge Current (In) | Ortak mod: 20 kA (L/PE); Ortak mod: 20 kA (N/PE) |
| Maximum Discharge Current (Imax) | Ortak mod: 65 kA L/PE |
| Maximum Continuous Operating Voltage (Uc) | Ortak mod: 350 V L/PE; Ortak mod: 350 V N/PE |
| Temporary Overvoltage (Ut) | 337 V L/N 5 s dayanım; 1200 V N/PE 200 ms güvenli arıza modu |
| Signalling Circuit Voltage | 0,25 A/250 V AC 50/60 Hz |
| Mounting Method | Takılabilir (DIN rayı) |
| Number of 9 mm Pitches | 2 |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 69 mm |
| Product Weight | 0.136 kg |
| Color | White (RAL 9003) |
| Earth Leakage Current (Ipe) | 0,003 mA; 0,6 mA |
| Connection Terminals | Tünel tipi terminal (aşağı doğru) 2,5…35 mm²; Tünel tipi terminal (yukarı doğru) 2,5…35 mm² |
| Tightening Torque | 2,5 N.m |
| IK Impact Protection | IK03 (IEC 62262) |
| Relative Humidity | 5…95 % |
| Operating Altitude | 2000 m |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -40…85 °C |
