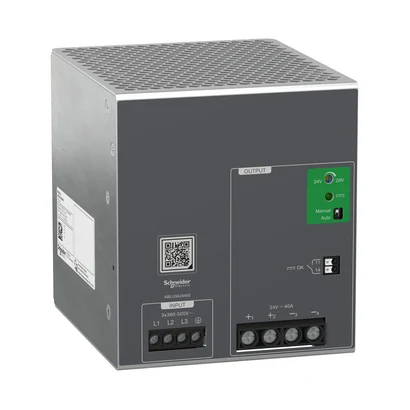

Schneider Electric ABLU3A24400 Power Supply, 380...500 V AC, 3 Phase, 24 V, 40 A
- Brand: Schneider Electric
- SKU: ABLU3A24400
- MPN: ABLU3A24400
- Price: 63939.66 TRY + VAT · incl. VAT 76727.59 TRY
- Availability: Made to order
- DIN Rail Power Supplies
- Schneider Electric DIN Rail Power Supplies
- Selection guide: DIN Rail Power Supplies Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric ABLU3A24400 Teknik Veri Föyü (PDF)
Schneider Electric ABLU3A24400 Power Supply, 380...500 V AC, 3 Phase, 24 V, 40 A.
| Series | Modicon Güç Kaynağı |
|---|---|
| Product Type | Güç besleme |
| Power Supply Type | Düzenlenmiş anahtar modu |
| Housing Material | Metal |
| Rated Input Voltage | 380…500 V AC trifaze |
| Rated Power (W) | 960 W |
| Output Voltage | 24 V DC |
| Power Supply Output Current | 40 A |
| Permissible Transient Current | 1,5 x In (5 saniye için) |
| Input Voltage Limits | 320…575 V AC 3 faz |
| Mains Frequency | 50–60 Hz |
| Earthing System | TN; TT; IT |
| Maximum Leakage Current | 2 mA 500 V AC |
| Input Protection Type | Entegre sigorta (birbiriyle değiştirilemez) 3,15 A; External protection (recommended) |
| Inrush Current | 35 A @ 380 V; 35 A @ 500 V |
| Efficiency | 95 % @ 380 V AC; 95 % @ 500 V AC |
| Output Voltage Adjustment Range | 24–28 V |
| Power Loss (W) | 49 W |
| Current Consumption | < 1.9 A 380 V AC; < 1.7 A 500 V AC |
| Turn-on Time | <2 s |
| Hold-up Time | > 20 ms 380 V AC; > 20 ms 500 V AC |
| Startup with Capacitive Loads | 200000 µF |
| Residual Ripple | < 200 mV |
| Mean Time Between Failures (MTBF) | 595400 h at 25 °C, tam load (SR 332); 308300 h at 55 °C, 80 % load (SR 332) |
| Line and Load Regulation | < 0.17 % network 100 % load in line at 25 °C; < 0.6 % +/- 0.5 % network 150 % load at 25 °C |
| Status LED | 1 LED (yeşil ve kırmızı) product status |
| Depth | 128.7 mm |
| Height | 124 mm |
| Width | 110 mm |
| Product Weight | 2.29 kg |
| Output terminal | Paralel |
| Conformity Markings | CE; UKCA |
| Mounting Support | Silindir şapka tipi TH35-15 ray (IEC 60715); Silindir şapka tipi TH35-7.5 ray (IEC 60715); Double-profile DIN ray |
| Supply | SELV (IEC 60950-1); SELV (IEC 60204-1); SELV (IEC 60364-4-41) |
| Service Life | 10 yr 40 °C 80 % load |
| Overvoltage category | III; II |
| Certifications | CE; CUL Listelenen; CUL Tanınan; RCM; CB Şeması; EAC; KC; UKCA; CURus |
| Operating Altitude | < 5000 m overvoltage category III; overvoltage category II |
| Shock Resistance | 150 m/s² için 11 ms |
| IP Rating | IP20 |
