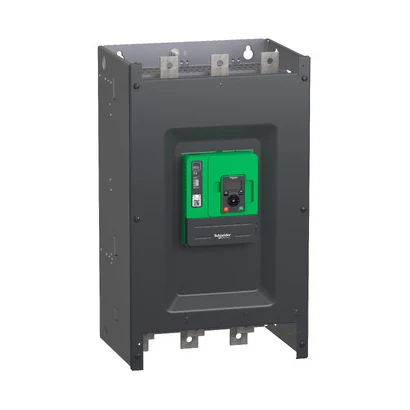

Schneider Electric ATS480C41Y ALTIVAR Soft Starter - ATS480 - 410A/208-690V
- Brand: Schneider Electric
- SKU: ATS480C41Y
- MPN: ATS480C41Y
- Price: 407101.00 TRY + VAT · incl. VAT 488521.20 TRY
- Availability: Made to order
- Soft Starters
- Selection guide: Soft Starters Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric ATS480C41Y Teknik Veri Föyü (PDF)
Schneider Electric ATS480C41Y ALTIVAR Soft Starter - ATS480 - 410A/208-690V. Technical specifications of this model: Specified Operating Voltage: 208-690V Series: ALTIVAR
| Specified Operating Voltage | 208–690 V |
|---|---|
| Series | Altivar |
| Product Type | Yumuşak Yol Verici |
| Intended Field of Application | Asenkron motorlar |
| Application | Proses ve altyapı |
| Number of Phases | 3-Phase |
| Utilization Category | AC-3A; AC-53A |
| IP Rating | IP00 |
| Device Connection | Motor besleme hattında; Motor delta terminallerine |
| Apparent Power | 0.106 kVA |
| Integrated Motor Overload Protection | Yes |
| Rated Current for Power Loss (In) | 410 A |
| Power Loss (Static) | 25 W |
| Power Loss (Current Dependent) | 1319 W |
| Standards | IEC 60947-4-2; UL 60947-4-2; IEC 60664-1 |
| Certifications | CE; cULus; CCC; UKCA; RCM; EAC; DNV; ABS; BV; CCS |
| Conformity Markings | CE; CCC; UKCA; EAC; RCM; CULus |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Number of Digital Inputs | 4 |
| Digital Input Type | (STOP) lojik girişler, 3500 Ohm; (RUN) lojik girişler, 3500 Ohm; (DI3) programmable as logic input, 3500 Ohm; (DI4) programmable as logic input, 3500 Ohm |
| Digital Input Logic | Programmable digital input 0 Durumunda: < 5 V |
| Number of Relay Outputs | 3 |
| Relay Output Type | Röle çıkışları R1A 1 NA; Röle çıkışları R1B 1 NA; Röle çıkışları RIC NO/NC programlanabilir |
| Minimum Switching Current | 100 mA @ 12 V DC için röle çıkışları |
| Maximum Switching Current | Röle çıkışları 2 A @ 250 V AC; Röle çıkışları 2 A @ 30 V DC; Röle çıkışları |
| Number of Digital Outputs | 2 |
| Digital Output Type | (DQ1) programmable digital output <= 30 V; (DQ2) programmable digital output <= 30 V |
| Output Connector Type | Open collector seviye 1 PLC (IEC 65A-68) |
| Number of Analog Inputs | 1 |
| Analog Input Type | AI1/PTC PTC/Pt 100 sıcaklık probu; PTC2 PTC/Pt 100 sıcaklık probu; PTC3 PTC/Pt 100 sıcaklık probu |
| Number of Analog Outputs | 1 |
| Analog Output Type | Akım çıkışı AQ1: 0…20 mA or 0…10 V, empedans <500 Ohm |
| Communication Protocol | Modbus seri |
| Connector Type | 1 RJ45 |
| Communication Data Link | seri |
| Physical Interface | 2 telli RS 485 |
| Transmission Speed | 1200...256000 bit/sn |
| Transmission Frame | RTU |
| Data Format | 8 bit, yapılandırılabilir tek, çift veya paritesiz |
| Polarization Type | Empedans yok için Modbus seri |
