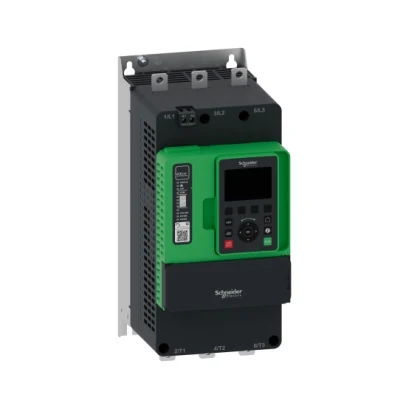

Schneider Electric ATS490C17Y ALTIVAR Soft Starter - ATS490 - 170A/208-690V
- Brand: Schneider Electric
- SKU: ATS490C17Y
- MPN: ATS490C17Y
- Price: 228903.97 TRY + VAT · incl. VAT 274684.76 TRY
- Availability: Made to order
- Soft Starters
- Selection guide: Soft Starters Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric ATS490C17Y Teknik Veri Föyü (PDF)
Schneider Electric ATS490C17Y ALTIVAR Soft Starter - ATS490 - 170A/208-690V. Technical specifications of this model: Specified Operating Voltage: 208-690V Series: ALTIVAR
| Specified Operating Voltage | 208–690 V |
|---|---|
| Series | Altivar |
| Product Type | Yumuşak Yol Verici |
| Intended Field of Application | Asenkron motorlar |
| Application | Proses ve altyapı |
| Number of Phases | 3-Phase |
| Utilization Category | AC-3A; AC-53A |
| Supply Voltage | 208…690 V AC (% - 15…10) |
| Mains Frequency | 50…60 Hz - 20…20 % |
| Service Factor | 100 |
| Rated Current in Heavy Duty | 140 A at 40 °C için heavy duty |
| IP Rating | IP00 |
| Safe Torque Off (STO) | STO (güvenli tork kapatma): SIL 1 (IEC 61508); STO (güvenli tork kapatma): PL c/category 2 (ISO 13849) |
| Cybersecurity Functions | Yes |
| Cybersecurity Level and Standard | Security level (SL) 1 (IEC 62443-4-2) |
| Communication Protocol | Modbus seri; Modbus TCP/EtherNet/IP |
| Device Connection | Motor besleme hattında; Inside delta |
| Overload Current Profile | 13 s için 400 % Ie |
| Load Factor | 50 % |
| Maximum Operating Rate (cycles/h) | 10 cyc/h |
| Rated Control Supply Voltage (Us) | 110…230 V AC 50…60 Hz % - 15…10 |
| Apparent Power | 80 VA |
| Integrated Motor Overload Protection | Yes |
| Motor Thermal Protection Class | Sınıf 10E |
| Current Limiting (%In) | 150…700 % |
| Rated Current for Power Loss (In) | 170 A |
| Power Loss (Static) | 19 W |
| Power Loss (Current Dependent) | 38 W |
| Power Loss During Starting | 2101 W during starting at 40 °C at 400% Ie |
| Standards | EN/IEC 60947-4-2; UL 60947-4-2; IEC 60664-1 |
| Certifications | CE; cULus; UKCA; RCM; CCC; DNV; ATEX; EAC; KC |
| Conformity Markings | CE; CULus; UKCA; RCM; CCC; ATEX; EAC; KC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Number of Digital Inputs | 5 |
| Digital Input Type | (DI1) digital input, 4.4 kOhm; (DI2) digital input, 4.4 kOhm; (DI3) digital input, 4.4 kOhm; (DI4) digital input, 4.4 kOhm; (STO) digital input, > 1 kOhm |
| Number of Relay Outputs | 3 |
| Relay Output Type | Röle çıkışları R1A, R1C NA; Röle çıkışları R2A, R2C NA; Röle çıkışları R3A, R3C NA |
| Minimum Switching Current | 100 mA @ 12 V DC için röle çıkışları |
| Maximum Switching Current | Röle çıkışları 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1; Röle çıkışları 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1 |
| Number of Digital Outputs | 2 |
