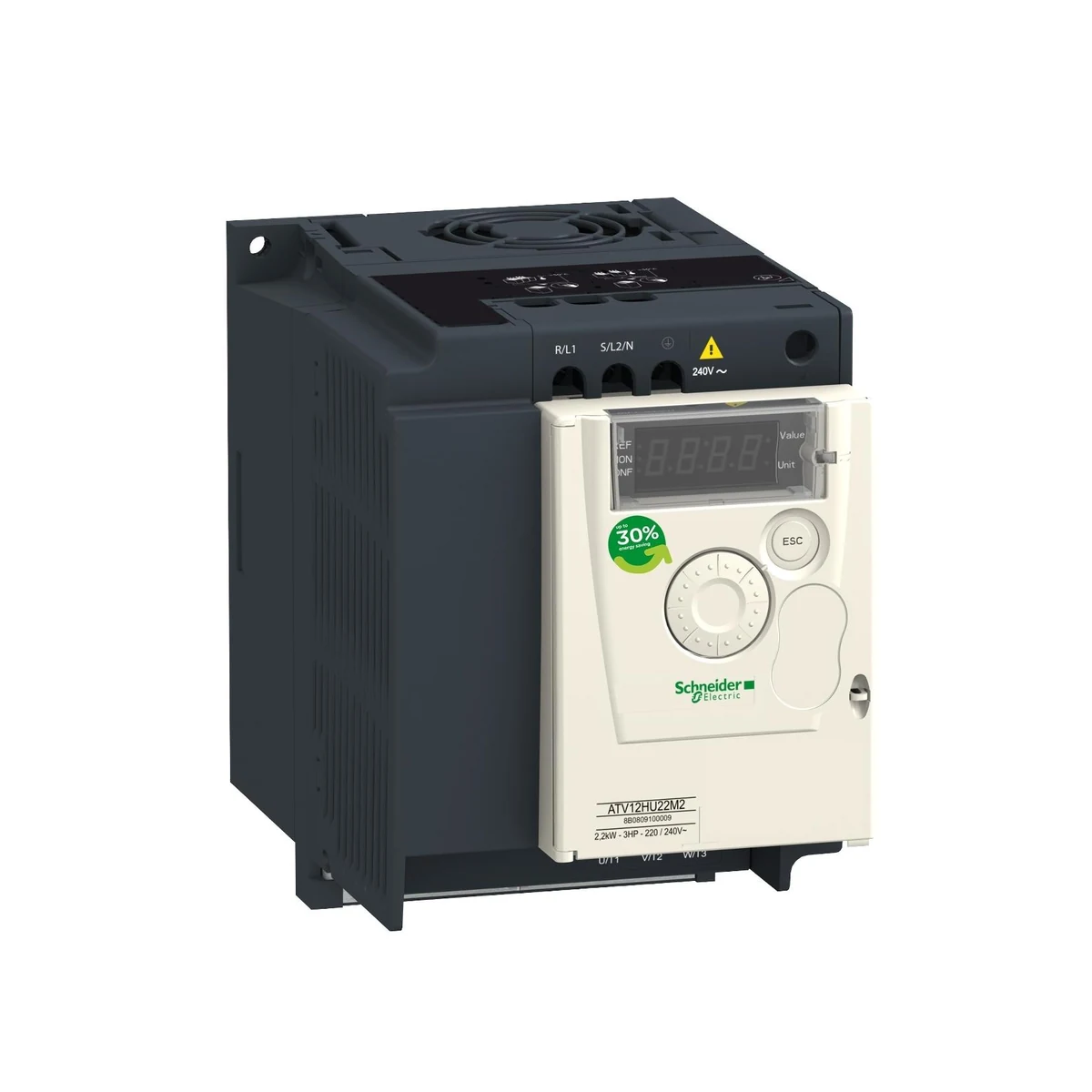

Schneider Electric ATV12HU15M2 ATV12 1.5kW 230V 1PH
- Brand: Schneider Electric
- SKU: ATV12HU15M2
- MPN: ATV12HU15M2
- Price: 26687.86 TRY + VAT · incl. VAT 32025.43 TRY
- Availability: In stock
- Variable Frequency Drives (Frequency Inverters)
- Schneider Electric Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
- Schneider Electric ATV12HU15M2 Teknik Veri Föyü (PDF)
Schneider Electric ATV12HU15M2 ATV12 1.5kW 230V 1PH. Technical specifications of this model: Motor Power: 1.5kW Specified Operating Voltage: 230V Number of Phases: 1 Series: ALTIVAR 12 Product Type: Frequency Converter Communication Port Protocol: MODBUS Supply Frequency: 50/60 Hz +/- 5 % Rated Supply Voltage: 200...240 V - 15...10 % EMC filter: Built-in IP Rating: IP20 Number of Digital Inputs: 4 Number of Digital Outputs: 2 Number of Analog Inputs: 1 Number of Analog Outputs: 1 Number of Relay Outputs: 1 Rated Switching Frequency: 4 kHz Mains Frequency: 50...60 Hz Tightening Torque: 1.2 N.M Width: 105 mm Height: 142 mm Depth: 156.2 mm Product Weight: 1.4 kg Noise Level: 45 dB Storage Temperature: -25…70 °C
| Motor Power | 1.5 kW |
|---|---|
| Specified Operating Voltage | 230 V |
| Number of Phases | 1-Phase |
| Series | ALTIVAR 12 |
| Product Type | Frekans Konvertörü |
| Communication Port Protocol | MODBUS |
| Supply Frequency | 50/60 Hz +/- 5 % |
| Rated Supply Voltage | 200...240 V - 15...10 % |
| EMC Filter | Dahili |
| IP Rating | IP20 |
| Number of Digital Inputs | 4 |
| Number of Digital Outputs | 2 |
| Number of Analog Inputs | 1 |
| Number of Analog Outputs | 1 |
| Number of Relay Outputs | 1 |
| Rated Switching Frequency | 4 kHz |
| Mains Frequency | 50–60 Hz |
| Tightening Torque | 1,2 N.m |
| Width | 105 mm |
| Height | 142 mm |
| Depth | 156.2 mm |
| Product Weight | 1.4 kg |
| Noise Level | 45 dB |
| Storage Temperature | -25…70 °C |
