Schneider Electric ATV630D75N4 ATVProcess :VARIABLE SPEED DRIVE IP21 75kW 400V/480V
- Brand: Schneider Electric
- SKU: ATV630D75N4
- MPN: ATV630D75N4
- Price: 486163.78 TRY + VAT · incl. VAT 583396.54 TRY
- Availability: Made to order
- Variable Frequency Drives (Frequency Inverters)
- Schneider Electric Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
- Schneider Electric ATV630D75N4 Teknik Veri Föyü (PDF)

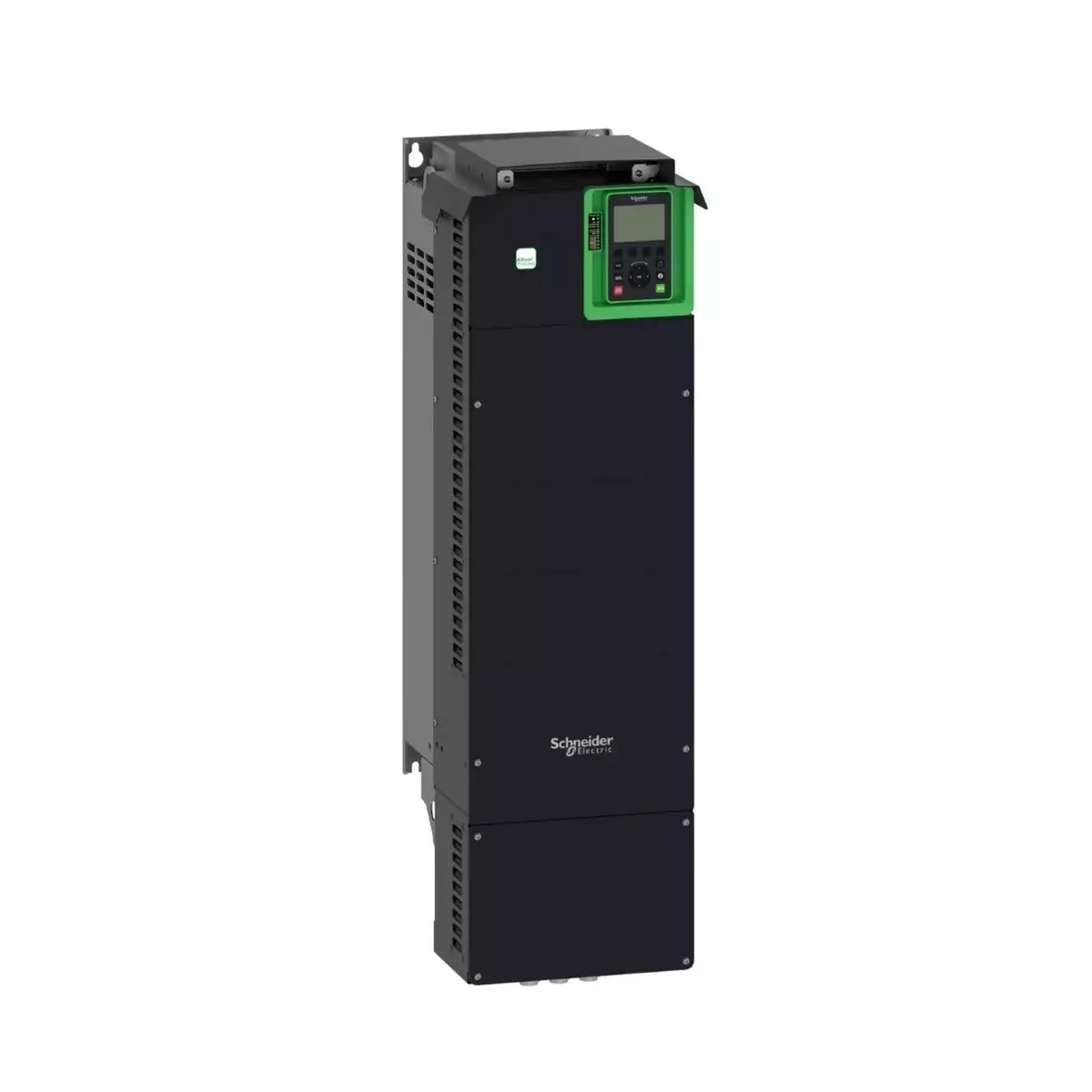

Schneider Electric ATV630D75N4 ATVProcess :VARIABLE SPEED DRIVE IP21 75kW 400V/480V. Technical specifications of this model: IP Rating: IP21 Motor Power: 75kW
| IP Rating | IP21 |
|---|---|
| Motor Power | 75 kW |
| Series | ALTIVAR PROCESS ATV600 |
| Application | Proses ve altyapı |
| Product Type | Değişken hızlı sürücü |
| Model Type | Standart tip |
| Mounting Type | Duvara monte |
| Communication Protocol | Ethernet; Modbus seri; Modbus TCP |
| Rated Control Supply Voltage (Us) | 380…480 V % - 15…10 |
| Network Voltage Tolerance | 10 % |
| Network Frequency Tolerance | 5% |
| Rated Output Current | 145 A |
| Intended Field of Application | Asenkron motorlar; Senkron motorlar |
| EMC Filter | Entegreile 150 m motor kablosu maks (IEC 61800-3 kategori C3) |
| NEMA protection rating | UL tip 1 (UL 508C) |
| Cooling Type | Zorlamalı konveksiyon |
| Mains Frequency | 50…60 Hz - 5…5 % |
| Motor Power (kW) | 75 kW (normal şart); 55 kW (Ağır şart) |
| Motor Power (HP) | 100 hp normal şart; 75 hp Ağır şart |
| Line Current | 131,3 A @ 380 V (normal şart); 112,7 A @ 480 V (normal şart); 98,9 A @ 380 V (Ağır şart); 86,9 A @ 480 V (Ağır şart) |
| Continuous Output Current | 145 A @ 2,5 kHz için normal şart; 106 A @ 2,5 kHz için Ağır şart |
| Output Frequency Range | 0.1–500 Hz |
| Safety Function | STO (güvenli tork kapatma) SIL 3 |
| Number of Digital Inputs | 8 |
| Digital Input Type | DI7, DI8 darbe girişi olarak programlanabilir: 0…30 kHz, 24 V DC (<= 30 V) |
| Digital Input Logic | 16 önceden ayarlı hız |
| Number of Digital Outputs | 0 |
| Number of Analog Inputs | 3 |
| Number of Analog Outputs | 2 |
| Number of Relay Outputs | 3 |
| Minimum Switching Current | Röle çıkışı R1, R2, R3: 5 mA @ 24 V DC |
| Number of Phases | 3-Phase |
| Physical Interface | Ethernet; 2 telli RS 485 |
| Access Method | Slave Modbus TCP |
| Transmission Speed | 10, 100 Mbit; 4800 bps, 9600 bps, 19200 bps, 38,4 Kbps |
| Transmission Frame | RTU |
| Output Voltage | <= güç besleme gerilimi |
| Permissible Transient Current | 1,1 x In süresince 60 s (normal şart); 1,5 x In süresince 60 s (Ağır şart) |
| Data Format | 8 bit, yapılandırılabilir tek, çift veya paritesiz |
| Polarization Type | Empedans yok |
