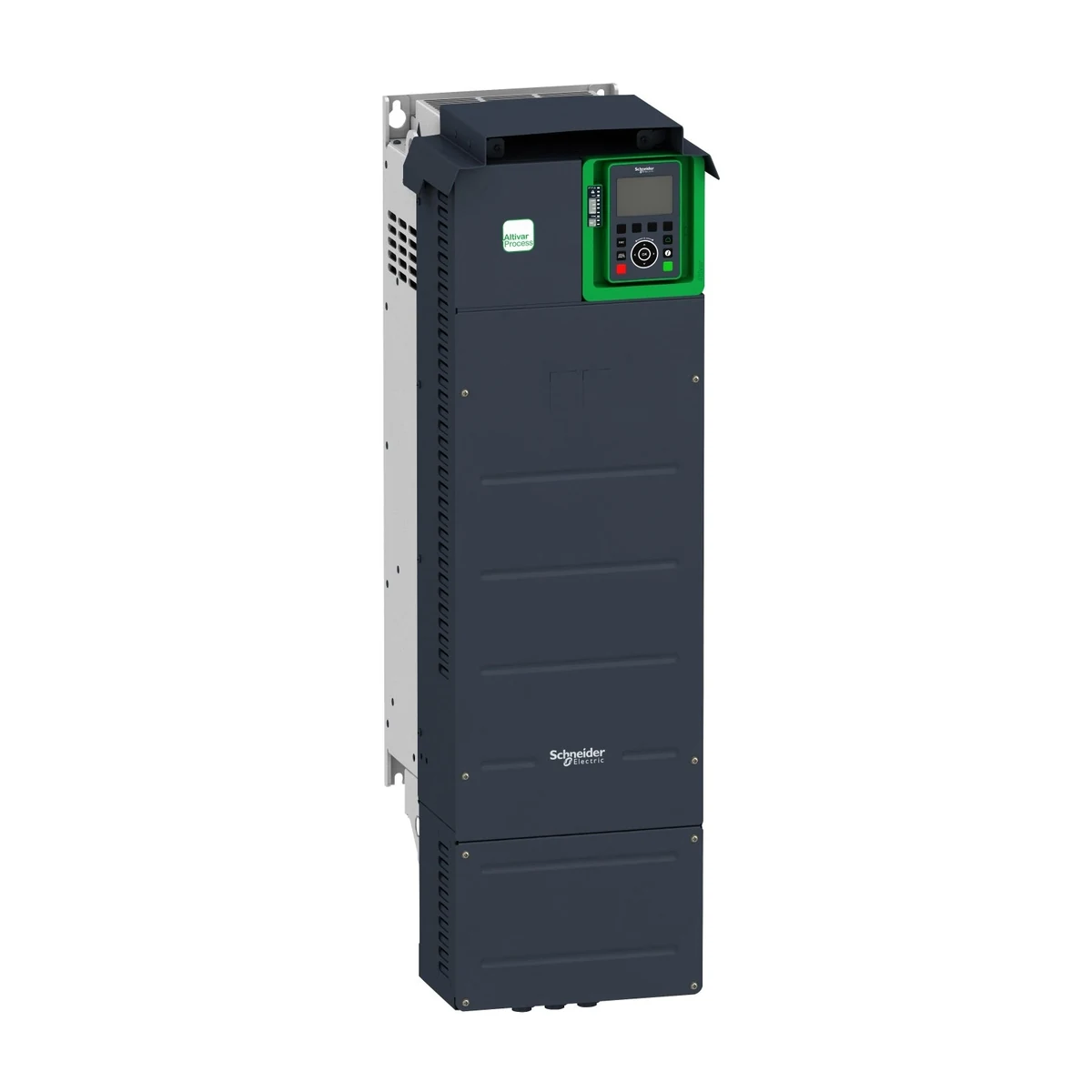

Schneider Electric ATV930D55N4 ATVProcess :VARIABLE SPEED DRIVE IP21 55kW 400V/480V

• Brand: Schneider Electric
• SKU: ATV930D55N4
• MPN: ATV930D55N4
• Price: 482994.59 TRY + VAT · incl. VAT 579593.51 TRY
• Availability: Made to order
• Variable Frequency Drives (Frequency Inverters)
• Schneider Electric Variable Frequency Drives (Frequency Inverters)
• Selection guide: What Is a Frequency Inverter? Drive Selection Guide

Schneider Electric ATV930D55N4 ATVProcess :VARIABLE SPEED DRIVE IP21 55kW 400V/480V. Technical specifications of this model: Maximum transient current: 127.2 A DURING 60 S (NORMAL DUTY); 132 A DURING 60 S (HEAVY DUTY) Sampling Time: 2 MS +/- 0.5 MS (DI1...DI8) - DISCRETE INPUT5 MS +/- 1 MS (DI7, DI8) - PULSE INPUT1 MS +/- 1 MS (AI1, AI2, AI3) - ANALOG INPUT5 MS +/- 1 MS (AQ1, AQ2) - ANALOG OUTPUT Shock Resistance: 15 GN for 11 ms per IEC 60068-2-27 Mounting Style: Wall mounting Insulation: Between power and control terminals Safety Function STO: Yes EMC filter: INTEGRATEDWITH EMC PLATE OPTION Digital Input Logic Type: POSITIVE LOGIC (SOURCE) (DI1...DI8), < 5 V (STATE 0), > 11 V (STATE 1)NEGATIVE LOGIC (SINK) (DI1...DI8), > 16 V (STATE 0), < 10 V (STATE 1)POSITIVE LOGIC (SOURCE) (DI7, DI8), < 0.6 V (STATE 0), > 2.5 V (STATE 1)POSITIVE LOGIC (SOURCE) (STOA, STOB), < 5 V (STATE 0), > 11 V (STATE 1) Mains Frequency: 50...60 Hz Number of Digital Inputs: 10 Data Exchange Format: HALF DUPLEX, FULL DUPLEX, AUTONEGOTIATION ETHERNET IP/MODBUS TCP Prospective Line Short-Circuit Current (Isc): 50 KA Safety Function SLP: No Depth: 325.5 mm Switching Frequency: 1...8 kHz adjustable; with 2.5...8 kHz derating factor Motor Power: 45.0 kW for heavy duty - 55.0 kW for normal duty Linearity Error: AI1, AI2, AI3: +/- 0.15 % of the maximum value, for analog input; AQ1, AQ2: +/- 0.2 %, for analog output Vibration resistance: 1.5 mm PEAK TO PEAK (F= 2…13 Hz) CONFORMING TO IEC 60068-2-61 GN (F= 13…200 Hz) CONFORMING TO IEC 60068-2-6 Maximum Acceleration Under Shock During Operation: 150 M/S² AT 11 MS Electrical Connection: Control: screw terminal 0.5...1.5 mm²/20 AWG...16 AWG; Line side: screw terminal 70...120 mm²/1/0 AWG...250 kcmil; Motor: screw terminal 70...120 mm²/1/0 AWG...250 kcmil; DC bus: screw terminal 70...120 mm²/1/0 AWG...250 kcmil Permissible Operating Relative Humidity: CLASS 3K5 ACCORDING TO EN 60721-3 Regulation Loop: ADJUSTABLE PID REGULATOR Degree of protection: UL TYPE 1 Manufacturer Standard Declaration: UL 508CIEC 61800-3IEC 61800-5-1IEC 61000-3-12IEC 60721-3IEC 61508IEC 13849-1 Protection type: Thermal protection: motor; Safe torque off: motor; Motor phase loss: motor; Thermal protection: drive; Safe torque off: drive; Overheating: drive; Overcurrent between output phases and ground: drive; Overload on output voltage: drive; Short-circuit protection: drive; Motor phase loss: drive; Overvoltage on the DC bus: drive; Mains supply overvoltage: drive; Mains supply undervoltage: drive; Mains supply phase loss: drive; Overspeed: drive; Control circuit break: drive Transmission Frame: RTU Transmission Speed: 10/100 Mbit/s for Ethernet IP/Modbus TCP; 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial Noise Level: 68.3 dB CONFORMING TO 86/188/EEC Safety Function SS2: No Communication Port Protocol: ETHERNET/IPMODBUS TCPMODBUS SERIAL Motor Slip Compensation: Automatic regardless of load; Not available in permanent magnet motor law; Can be disabled; Adjustable Rated Output Current: 106.0 A Safety Function SSM: No Input Compatibility: DI1...DI8: DISCRETE INPUT LEVEL 1 PLC CONFORMING TO IEC 61131-2DI7, DI8: PULSE INPUT LEVEL 1 PLC CONFORMING TO IEC 65A-68STOA, STOB: DISCRETE INPUT LEVEL 1 PLC CONFORMING TO IEC 61131-2 Product-Specific Application: process for industrial Maximum Output Frequency: 599 Hz Four-Quadrant Operation: Yes Symmetrical Mains Voltage Tolerance: 10 % Connector Type: 2 RJ451 RJ45 Synchronous Motor Control Profile: PERMANENT MAGNET MOTORSYNCHRONOUS RELUCTANCE MOTOR Mounting Structure: ENCLOSED Option Module: Slot A: communication module for PROFIBUS DP V1; Slot A: communication module for PROFINET; Slot A: communication module for DeviceNet; Slot A: communication module for EtherCAT; Slot A: communication module for CANopen daisy chain RJ45; Slot A: communication module for CANopen SUB-D 9; Slot A: communication module for CANopen screw terminals; Slot A/Slot B/Slot C: digital and analog I/O expansion module; Slot A/Slot B/Slot C: relay output expansion module; Slot B: 5/12 V digital encoder interface module; Slot B: analog encoder interface module; Slot B: resolver encoder interface module; Communication module for Ethernet POWERLINK Maximum Deflection Under Vibration During Operation: 1.5 mm AT 2...13 Hz Operating Ambient Temperature: -15…50 °C (without derating); 50…60 °C (with derating factor) Number of Addresses: 1…247 for Modbus serial Data format: 8 bits, configurable as odd, even or no parity for MODBUS serial Pollution Degree: 2 Line Current: 97.2 A AT 380 V (NORMAL DUTY); 81.4 A AT 380 V (HEAVY DUTY); 84.2 A AT 480 V (NORMAL DUTY); 71.8 A AT 480 V (HEAVY DUTY) Safety Function SS1: Yes Series: ALTIVAR PROCESS ATV900 Asynchronous Motor Control Profile: CONSTANT TORQUE STANDARDOPTIMIZED TORQUE MODEVARIABLE TORQUE STANDARD Marking: CE Relay Output Type: Configurable relay logic R1: fault relay NO/NC electrical endurance 100000 cycles; Configurable relay logic R2: sequencing relay NO electrical endurance 1000000 cycles; Configurable relay logic R3: sequencing relay NO electrical endurance 1000000 cycles Safety Function SBC/SBT: Yes Safety Function SLS: Yes Local Indicator: Local diagnostics: 3 LED (single/dual-color); Internal communication status: 5 LED (dual-color); Communication module status: 2 LED (dual-color); Voltage presence: 1 LED (red) Power Loss: NATURAL CONVECTION: 131 W AT 380 V, SWITCHING FREQUENCY 2.5 KHZFORCED CONVECTION: 917 W AT 380 V, SWITCHING FREQUENCY 2.5 kHz Number of Digital Outputs: 2 Electromagnetic Compatibility: ELECTROSTATIC DISCHARGE IMMUNITY TEST LEVEL 3 CONFORMING TO IEC 61000-4-2RADIATED RADIO-FREQUENCY ELECTROMAGNETIC FIELD IMMUNITY TEST LEVEL 3 CONFORMING TO IEC 61000-4-3ELECTRICAL FAST TRANSIENT/BURST IMMUNITY TEST LEVEL 4 CONFORMING TO IEC 61000-4-41.2/50 µS - 8/20 µS SURGE IMMUNITY TEST LEVEL 3 CONFORMING TO IEC 61000-4-5CONDUCTED RADIO-FREQUENCY IMMUNITY TEST LEVEL 3 CONFORMING TO IEC 61000-4-6 Maximum Switching Current: Relay output R1 at resistive load, cos phi = 1: 3 A at 250 V AC; Relay output R1 at resistive load, cos phi = 1: 3 A at 30 V DC; Relay output R1 at inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC; Relay output R1 at inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC; Relay output R2, R3 at resistive load, cos phi = 1: 5 A at 250 V AC; Relay output R2, R3 at resistive load, cos phi = 1: 5 A at 30 V DC; Relay output R2, R3 at inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC; Relay output R2, R3 at inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Polarization Type: no impedance for Modbus serial Supply: External supply for digital inputs: 24 V DC (19…30 V) Safety Function Safe Programmable Logic: No Variant: With braking chopper; Standard version Number of Analog Inputs: 3 Number of Mains Phases: 3 PHASES Safety Function SOS: No Safety Function SDI: No Height: 922 mm Refresh Time: RELAY OUTPUT (R1, R2, R3): 5 MS (+/- 0.5 MS) Product Weight: 57.5 kg Cooling Air Volume: 295 M3/H Continuous Output Current: 106 A at 2.5 kHz (normal duty); 88 A at 2.5 kHz (heavy duty) Relative Humidity: 5…95 % non-condensing, compliant with IEC 60068-2-3 Symmetrical Mains Frequency Tolerance: 5 % Physical interface: ETHERNET2-WIRE RS 485 Rated Supply Voltage: 380...480 V - 15...10 % Braking to Standstill: BY DC INJECTION Base Load Current at Low Overload: 106.0 A Accuracy: +/- 0.6 % AI1, AI2, AI3, for 60 °C temperature change, analog input; +/- 1 % AQ1, AQ2, for 60 °C temperature change, analog output Rated Switching Frequency: 2.5 kHz Maximum Output Voltage: 480.0 V Product Family: Altivar Process ATV900 Product Place of Use: ASYNCHRONOUS MOTORSSYNCHRONOUS MOTORS Acceleration and Deceleration Ramps: LINEAR ADJUSTABLE SEPARATELY FROM 0.01...9999 S Digital Output Type: LOGIC OUTPUT DQ+ 0…1 kHz Operating Position: VERTICAL +/- 10 DEGREE Safety Function SP: No Product Type: variable speed drive Maximum Input Current: 97.2 A Manufacturer Certificate Declaration: CSAULTÜV Maximum Acceleration Under Vibration During Operation: 10 M/S² AT 13...200 Hz IP Rating: IP21 Number of Relay Outputs: 3 Storage Temperature: -40…70 °C Apparent Power: 70 kVA AT 480 V (NORMAL DUTY); 59.7 kVA AT 480 V (HEAVY DUTY) Access Method: SLAVE MODBUS TCP Base Load Current at High Overload: 88.0 A Transport Ambient Temperature: -40…70 °C Number of Analog Outputs: 2 Width: 290 mm Built-in Braking Chopper: Yes Device Application: INDUSTRIAL APPLICATION
