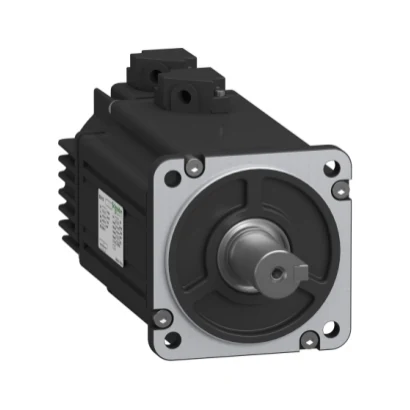

Schneider Electric BCH16LF10330A5C2 BCH16Motor 1.0kW L80-19 3000 220V
- Brand: Schneider Electric
- SKU: BCH16LF10330A5C2
- MPN: BCH16LF10330A5C2
- Price: 44368.56 TRY + VAT · incl. VAT 53242.27 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH16LF10330A5C2 Teknik Veri Föyü (PDF)
Schneider Electric BCH16LF10330A5C2 BCH16Motor 1.0kW L80-19 3000 220V. Technical specifications of this model: Specified Operating Voltage: 220V Motor Power: 1.0kW
| Specified Operating Voltage | 220 V |
|---|---|
| Motor Power | 1 kW |
| Series | Lexium 16D |
| Compatible Series | Lexium 16D |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 5000 rpm |
| Rated Control Supply Voltage (Us) | 220 V |
| Number of Phases | 3-Phase |
| Continuous Stall Current | 6.8 A |
| Continuous Stall Torque | 3,18 N.m için LXM16D @ 10,13 A, 220 V, monofaze |
| Continuous Power | 1000 W |
| Peak Stall Torque | 9,55 N.m için LXM16D @ 10,13 A, 220 V, monofaze |
| Rated Output Power | 1000 W için LXM16D @ 10,13 A, 220 V, monofaze |
| Rated Torque | 3,18 N.m için LXM16D @ 10,13 A, 220 V, monofaze |
| Rated Speed | 3000 rpm için LXM16D @ 10,13 A, 220 V, monofaze |
| Maximum Continuous Current | 21.8 A |
| Compatible Products | LXM16D hareket servo motorları motor @ 1 kW, 220 V, monofaze |
| Shaft End | Paralel anahtar |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 19 mm |
| Shaft Length | 22 mm |
| Key Width | 6 mm |
| Feedback Type | 2500 artımlı kodlayıcı |
| Brake | None |
| Holding Torque | 6,5 N.m |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 80 mm |
| Electrical Connection | Free lead |
| Torque Constant | 0,51 N.m/A @ 20 °C |
| Back EMF Constant | 31,1 V/krpm @ 20 °C |
| Rotor Inertia | 1,24 kg.cm² |
| Stator Resistance | 0,75 Ohm @ 20 °C |
| Stator Inductance | 4,2 mH @ 20 °C |
| Stator Electrical Time Constant | 5,6 ms @ 20 °C |
| Maximum Radial Force (Fr) | 343.98 N @ 3000 rpm |
| Maximum Axial Force (Fa) | 122,3 N |
| Cooling Type | Doğal konveksiyon |
| Length | 139 mm |
| Mean Ring Diameter | 95 mm |
| Mean Ring Depth | 3 mm |
