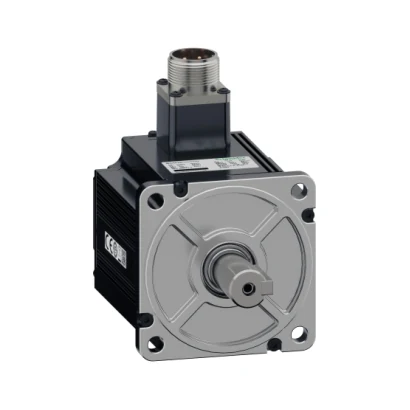

Schneider Electric BCH18LH15332A6C 1500W, 22mm, Low Inertia, 3000rpm, 23bit Encoder
- Brand: Schneider Electric
- SKU: BCH18LH15332A6C
- MPN: BCH18LH15332A6C
- Price: 58880.08 TRY + VAT · incl. VAT 70656.10 TRY
- Availability: In stock
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH18LH15332A6C Teknik Veri Föyü (PDF)
Schneider Electric BCH18LH15332A6C 1500W, 22mm, Low Inertia, 3000rpm, 23bit Encoder. Technical specifications of this model: Resolution: 23bit Rated Speed: 3000rpm
| Rated Speed | 3000rpm |
|---|---|
| Resolution | 23bit |
| Series | Lexium 18 |
| Compatible Series | Lexium 18 |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 6000,0 rpm |
| Rated Control Supply Voltage (Us) | 200–240 V |
| Continuous Stall Current | 9.2 A |
| Continuous Stall Torque | 4,77 N.m, 220 V |
| Continuous Power | 1500 W |
| Peak Stall Torque | 14,3 N.m, 220 V |
| Rated Output Power | 1500 W, 220 V |
| Rated Torque | 4,77 N.m, 220 V |
| Maximum Continuous Current | 28.8 A |
| Shaft End | Paralel anahtar |
| Shaft Diameter | 22 mm |
| Shaft Length | 45 mm |
| Key Width | 8 mm |
| Feedback Type | 23 bits optic incremental encoder |
| Brake | None |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 100 mm |
| Electrical Connection | 2 konnektör Erkek/dişi |
| Torque Constant | 0,52 N.m/A @ 40 °C |
| Back EMF Constant | 34,2 V/krpm @ 40 °C |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 2,09 kg.cm² |
| Stator Resistance | 0,4 Ohm |
| Stator Inductance | 3,0 mH |
| Maximum Radial Force (Fr) | 686 N |
| Maximum Axial Force (Fa) | 196 N |
| Length | 159 mm |
| Number of Mounting Holes | 4,0 |
| Mounting Hole Circle Diameter | 9 mm |
| Width | 159 mm |
| Height | 100 mm |
| Depth | 152.2 mm |
| Product Weight | 4.5 kg |
| Encoder Type | Optic encoder |
| Inertia | 0,0 kg.cm² of brake; 2,09 kg.cm² of motor |
