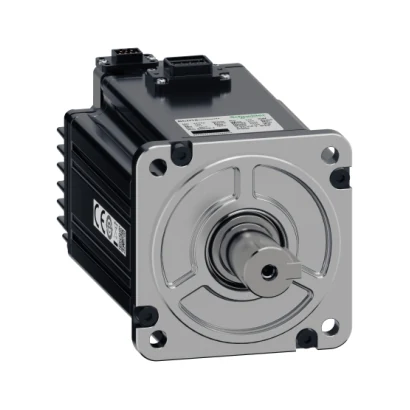

Schneider Electric BCH18MF07332F5C 750W with brake, 19mm, medium inertia, 3000rpm, 23bit Encoder
- Brand: Schneider Electric
- SKU: BCH18MF07332F5C
- MPN: BCH18MF07332F5C
- Price: 56711.69 TRY + VAT · incl. VAT 68054.03 TRY
- Availability: In stock
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH18MF07332F5C Teknik Veri Föyü (PDF)
Schneider Electric BCH18MF07332F5C 750W with brake, 19mm, medium inertia, 3000rpm, 23bit Encoder. Technical specifications of this model: Resolution: 23bit Rated Speed: 3000rpm
| Rated Speed | 3000rpm |
|---|---|
| Resolution | 23bit |
| Series | Lexium 18 |
| Compatible Series | Lexium 18 |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 6000,0 rpm |
| Rated Control Supply Voltage (Us) | 200–240 V |
| Continuous Stall Current | 4.9 A |
| Continuous Stall Torque | 2,39 N.m, 220 V |
| Continuous Power | 750 W |
| Peak Stall Torque | 8,37 N.m, 220 V |
| Rated Output Power | 750 W, 220 V |
| Rated Torque | 2,39 N.m, 220 V |
| Maximum Continuous Current | 17.3 A |
| Shaft End | Paralel anahtar |
| Shaft Diameter | 19 mm |
| Shaft Length | 35 mm |
| Key Width | 6 mm |
| Feedback Type | 23 bits optic incremental encoder |
| Brake | Available |
| Holding Torque | 3,0 N.m |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 80 mm |
| Electrical Connection | 2 konnektör Erkek/dişi |
| Torque Constant | 0,49 N.m/A @ 40 °C |
| Back EMF Constant | 31,0 V/krpm @ 40 °C |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 1,9 kg.cm² |
| Stator Resistance | 1,5 Ohm |
| Stator Inductance | 5,0 mH |
| Maximum Radial Force (Fr) | 392 N |
| Maximum Axial Force (Fa) | 147 N |
| Length | 152.5 mm |
| Number of Mounting Holes | 4,0 |
| Mounting Hole Circle Diameter | 6.5 mm |
| Width | 152.5 mm |
| Height | 80 mm |
| Depth | 88.6 mm |
| Product Weight | 3.25 kg |
| Encoder Type | Optic encoder |
