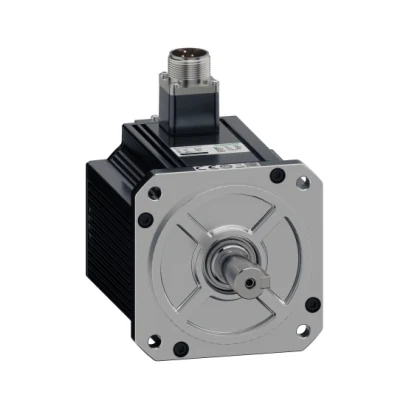

Schneider Electric BCH18MM08132F6C 850W with brake, 28mm, medium inertia, 1000rpm, 23bit Encoder
- Brand: Schneider Electric
- SKU: BCH18MM08132F6C
- MPN: BCH18MM08132F6C
- Price: 74114.40 TRY + VAT · incl. VAT 88937.28 TRY
- Availability: In stock
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH18MM08132F6C Teknik Veri Föyü (PDF)
Schneider Electric BCH18MM08132F6C 850W with brake, 28mm, medium inertia, 1000rpm, 23bit Encoder. Technical specifications of this model: Resolution: 23bit Rated Speed: 1000rpm
| Rated Speed | 1000rpm |
|---|---|
| Resolution | 23bit |
| Series | Lexium 18 |
| Compatible Series | Lexium 18 |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 3000,0 rpm |
| Rated Control Supply Voltage (Us) | 200–240 V |
| Continuous Stall Current | 7.3 A |
| Continuous Stall Torque | 5,39 N.m, 220 V |
| Continuous Power | 850 W |
| Peak Stall Torque | 16,17 N.m, 220 V |
| Rated Output Power | 850 W, 220 V |
| Rated Torque | 5,39 N.m, 220 V |
| Maximum Continuous Current | 22 A |
| Shaft End | Paralel anahtar |
| Shaft Diameter | 22 mm |
| Shaft Length | 55 mm |
| Key Width | 8 mm |
| Feedback Type | 23 bits optic incremental encoder |
| Brake | Available |
| Holding Torque | 20,0 N.m |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 130 mm |
| Electrical Connection | 2 konnektör Erkek/dişi |
| Torque Constant | 0,74 N.m/A @ 40 °C |
| Back EMF Constant | 53,7 V/krpm @ 40 °C |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 14,7 kg.cm² |
| Stator Resistance | 0,64 Ohm |
| Stator Inductance | 5,7 mH |
| Maximum Radial Force (Fr) | 686 N |
| Maximum Axial Force (Fa) | 343 N |
| Length | 188.5 mm |
| Number of Mounting Holes | 4,0 |
| Mounting Hole Circle Diameter | 9 mm |
| Width | 188.5 mm |
| Height | 130 mm |
| Depth | 182 mm |
| Product Weight | 8.35 kg |
| Encoder Type | Optic encoder |
