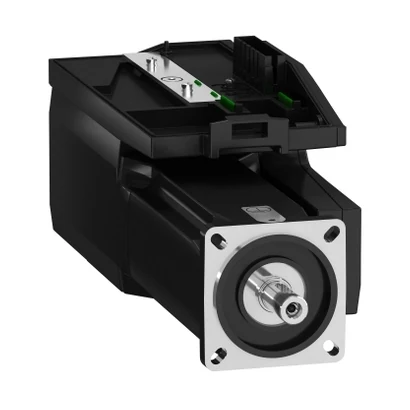

Schneider Electric BMI0702P16A BMI Servo Motor
- Brand: Schneider Electric
- SKU: BMI0702P16A
- MPN: BMI0702P16A
- Price: 179587.03 TRY + VAT · incl. VAT 215504.44 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BMI0702P16A Teknik Veri Föyü (PDF)
Schneider Electric BMI0702P16A BMI Servo Motor.
| Compatible Series | Lexium 32i |
|---|---|
| Product Type | Güç kademeli servo motor |
| Maximum Mechanical Speed | 8000 rpm |
| Rated Control Supply Voltage (Us) | 208…480 V % - 15…10 |
| Supply Voltage Limits | 208–480 V |
| Number of Phases | 3-Phase |
| Mains Frequency | 50/60 Hz - 5…5 % |
| EMC Filter | Entegre |
| Continuous Output Current | 2 A @ 8 kHz |
| Peak Output Current (3 s) | 6 A @ 400 V için 3 s |
| Continuous Stall Current | 2 A |
| Continuous Stall Torque | 2,48 N.m @ 208…480 V trifaze |
| Peak Stall Torque | 6,8 N.m @ 208 V trifaze; 6,8 N.m @ 400 V trifaze; 6,8 N.m @ 480 V trifaze |
| Rated Output Power | 400 W @ 208 V trifaze; 800 W @ 400 V trifaze; 900 W @ 480 V trifaze |
| Rated Torque | 2,4 N.m @ 208 V trifaze; 2,2 N.m @ 400 V trifaze; 2 N.m @ 480 V trifaze |
| Rated Speed | 1800 rpm @ 208 V trifaze; 3600 rpm @ 400 V trifaze; 4400 rpm @ 480 V trifaze |
| Maximum Current (Irms) | 9,6 A @ 208 V, trifaze; 9,6 A @ 400 V, trifaze; 9,6 A @ 480 V, trifaze |
| Compatible Products | Hız kontrol cihazı ünitesi LXM32i CANopen; Hız kontrol cihazı ünitesi LXM32i EtherCAT |
| Shaft End | Kilitli |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 11 mm |
| Shaft Length | 23 mm |
| Key Width | 4 mm |
| Feedback Type | Mutlak tek dönüşlü SinCos Hiperface |
| Speed Feedback Resolution | 32768 nokta/dönüş |
| Brake | None |
| Mounting Support | Uluslararası standart flanş |
| Motor Flange Size | 70 mm |
| Electrical Connection | Baskılı devre kartı konnektörü |
| Torque Constant | 1,15 N.m/A @ 20 °C |
| Back EMF Constant | 77,18 V/krpm @ 20 °C |
| Number of Motor Poles | 10 |
| Rotor Inertia | 1,13 kg.cm² |
| Stator Resistance | 8,89 Ohm @ 20 °C |
| Stator Inductance | 25,75 mH @ 20 °C |
| Stator Electrical Time Constant | 2,9 ms @ 20 °C |
| Maximum Radial Force (Fr) | 710 N @ 1000 rpm; 560 N @ 2000 rpm; 490 N @ 3000 rpm; 450 N @ 4000 rpm; 410 N @ 5000 rpm; 390 N @ 6000 rpm |
| Maximum Axial Force (Fa) | 0,2 x Fr |
| Cooling Type | Doğal konveksiyon |
| Length | 268 mm |
