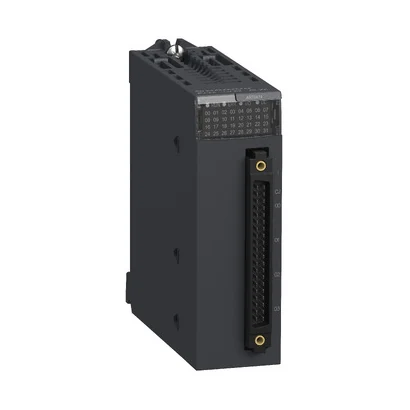

Schneider Electric BMXART0414 4 Isolated input 16 bit RTD
- Brand: Schneider Electric
- SKU: BMXART0414
- MPN: BMXART0414
- Price: 52208.12 TRY + VAT · incl. VAT 62649.74 TRY
- Availability: Made to order
- Temperature Modules
- Selection guide: Temperature Modules Selection Guide: Technical Criteria & Application Standards
- Schneider Electric BMXART0414 Teknik Veri Föyü (PDF)
Schneider Electric BMXART0414 4 Isolated input 16 bit RTD. Technical specifications of this model: Resolution: 16 bit
| Resolution | 16 bit |
|---|---|
| Series | Modicon X80 |
| Product Type | Analog Giriş Modülü |
| Electrical Connection | 40 yol 1 konnektör |
| Number of Analog Inputs | 4 |
| Mean Time Between Failures (MTBF) | 1400000 H |
| Operating Altitude | 0…2000 m; 2000…5000 m değer kaybı faktörü ile |
| Status LED | 1 LED (yeşil) RUN; Kanal başına 1 LED (yeşil) kanal tanısı; 1 LED (kırmızı) ERR; 1 LED (kırmızı) G/Ç |
| Product Weight | 0.135 kg |
| Current Consumption | 150 mA @ 3,3 V DC; 40 mA @ 24 V DC |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Storage Temperature | -40…85 °C |
| Operating Ambient Temperature | 0…60 °C |
| Relative Humidity | 5…95 % @ 55 °C yoğuşmasız |
| IP Rating | IP20 |
| Certifications | EAC; RCM; UL; Deniz Ticareti; CSA; CE |
| Standards | IEC 61131-2; IEC 61000-6-4; IEC 61000-6-2; EN 61010-2-201 |
