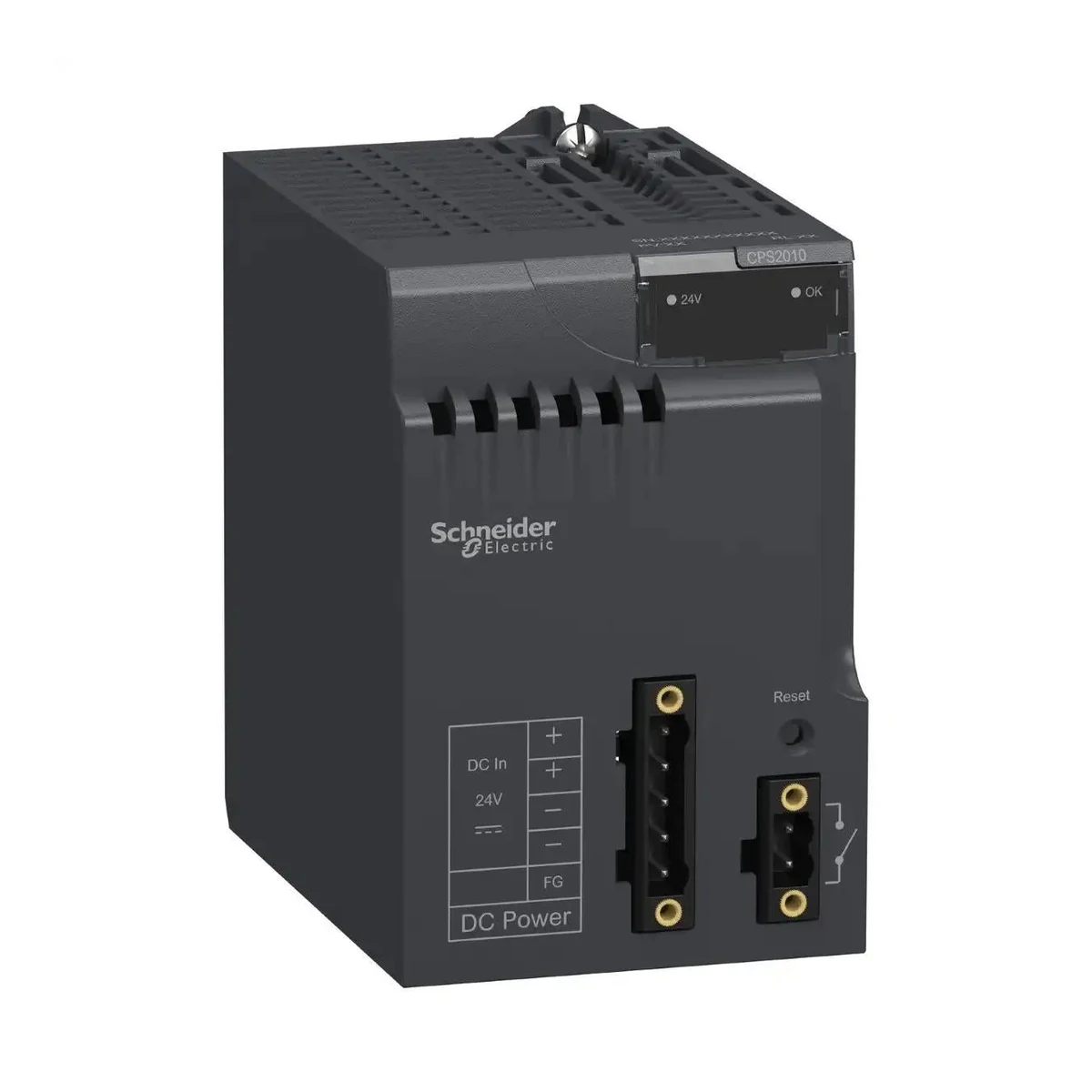

Schneider Electric BMXCPS2010 24 VDC Isolated PS
- Brand: Schneider Electric
- SKU: BMXCPS2010
- MPN: BMXCPS2010
- Price: 23240.68 TRY + VAT · incl. VAT 27888.82 TRY
- Availability: Made to order
- Power Modules
- Selection guide: PLC Input and Output Modules Selection Guide
- Schneider Electric BMXCPS2010 Teknik Veri Föyü (PDF)
Schneider Electric BMXCPS2010 24 VDC Isolated PS.
| Series | Modicon X80 |
|---|---|
| Product Type | Güç besleme modülü |
| Input current | 1 A 24 V |
| Inrush Current | 30 A 24 V |
| Mean Time Between Failures (MTBF) | 4886000 H |
| Maximum Power Loss (W) | 8.5 W |
| Status LED | 1 LED (yeşil) raf gerilimi OK |
| Control Type | SIFIRLAMA basmalı düğmesi soğuk yeniden başlatması |
| Electrical Connection | 1 konnektör 2 pim(ler)alarm rölesi; 1 konnektör 5 pim(ler)hat besleme, koruyucu toprak, 24 V DC giriş sensörü |
| Maximum Cable Distance Between Devices | 20 m güç besleme kablosu bakır 1,5 mm²; 30 m güç besleme kablosu bakır 2,5 mm² |
| Insulation Resistance | >= 10 MOhm birincil/topraklama; >= 10 MOhm birincil/ikincil |
| Product Weight | 0.29 kg |
| Micro-Interruption Immunity | 1 ms |
| Dielectric Strength | 1500 V birincil/topraklama; 1500 V birincil/ikincil |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| IP Rating | IP20 |
| Storage Temperature | -40…85 °C |
| Operating Ambient Temperature | 0…60 °C |
| Relative Humidity | 5…95 % @ 55 °C yoğuşmasız |
| Operating Altitude | 0…2000 m; 2000…5000 m değer kaybı faktörü ile |
