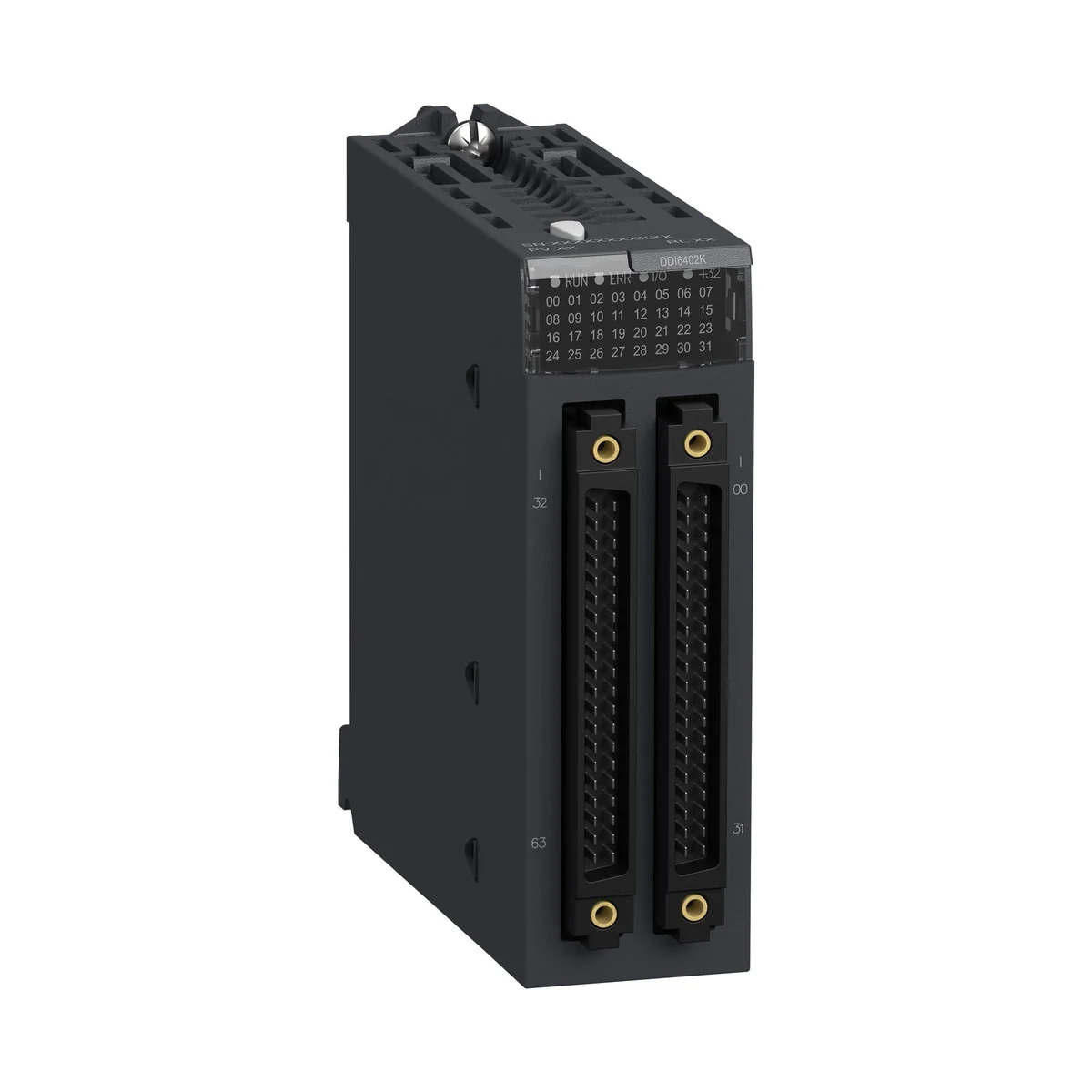

Schneider Electric BMXDDI6402K 64 Sink Input 24VDC
- Brand: Schneider Electric
- SKU: BMXDDI6402K
- MPN: BMXDDI6402K
- Price: 51985.72 TRY + VAT · incl. VAT 62382.86 TRY
- Availability: Made to order
- Digital Input Modules
- Schneider Electric Digital Input Modules
- Selection guide: Digital Input Modules Selection Guide: Technical Criteria & Application Standards
- Schneider Electric BMXDDI6402K Teknik Veri Föyü (PDF)
Schneider Electric BMXDDI6402K 64 Sink Input 24VDC.
| Series | Modicon X80 |
|---|---|
| Product Type | Dijital giriş modülü |
| Number of Digital Inputs | 64 |
| Digital Input Voltage | 24 V DC için yalıtımlı |
| Digital Input Logic | Pozitif lojik (blok) |
| Insulation Resistance | > 10 MOhm 500 V DC |
| Typical Current Consumption | 160 mA DC |
| Power Loss (W) | 4.3 W |
| Mean Time Between Failures (MTBF) | 510000 H |
| Height | 134.6 mm |
| Width | 32 mm |
| Depth | 86 mm |
| Product Weight | 0.145 kg |
| IP Rating | IP20 |
| Conformity Markings | CE; UKCA; CULus; RCM; EAC |
| Dielectric Strength | 1500 V AC @ 50/60 Hz 1 dakika, birincil/ikincil; 500 V DC 1 dakika, kanal grubunun arasında |
| Operating Ambient Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 5…95 % @ 55 °C yoğuşmasız |
| Operating Altitude | 0…2000 m; 2000…5000 m değer kaybı ile |
| Pollution Degree | 2 |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
