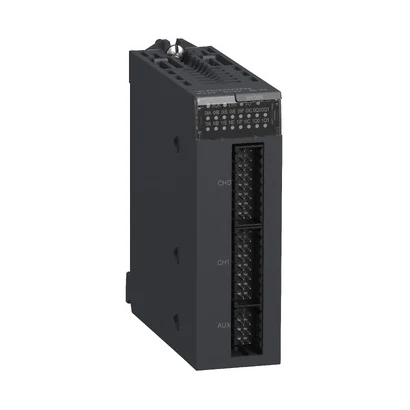

Schneider Electric BMXEHC0200 2 channel high-speed counter 32bit 6 Inputs / 2 Outputs per channel
- Brand: Schneider Electric
- SKU: BMXEHC0200
- MPN: BMXEHC0200
- Price: 43868.16 TRY + VAT · incl. VAT 52641.79 TRY
- Availability: Made to order
- High-Speed I/O Modules
- Selection guide: PLC Input and Output Modules Selection Guide
- Schneider Electric BMXEHC0200 Teknik Veri Föyü (PDF)
Schneider Electric BMXEHC0200 2 channel high-speed counter 32bit 6 Inputs / 2 Outputs per channel. Technical specifications of this model: Resolution: 32bit
| Resolution | 32bit |
|---|---|
| Series | Modicon M340 otomasyon platformu |
| Product Type | Sayaç modülü |
| Channel Count | 2 |
| Number of Inputs | 6 |
| Input Compatibility | 19,2…30 V 2 telli/3 telli yakınlık sensörü; itme-çekme çıkışlarla artımlı enkoder, 10…30 V totem pole |
| Output Voltage | 24 V DC |
| Input Voltage Limits | 24 V DC |
| Input current | 2 mA 11 V'ta |
| Maximum Leakage Current | 0,1 mA 0 durumunda |
| Current Consumption | 200 mA @ 3,3 V DC @ veriyolu; 40 mA @ 24 V DC @ raf; 80 mA @ 24 V DC @ sensör |
| Product Weight | 0.112 kg |
| Operating Ambient Temperature | 0…60 °C |
| Relative Humidity | 10…95 % yoğuşmasız |
| IP Rating | IP20 |
