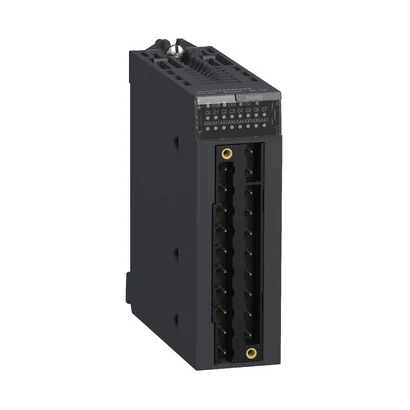

Schneider Electric BMXEHC0800 8 channel high-speed counter 16bit 2 inputs per channel
- Brand: Schneider Electric
- SKU: BMXEHC0800
- MPN: BMXEHC0800
- Price: 64328.85 TRY + VAT · incl. VAT 77194.62 TRY
- Availability: Made to order
- High-Speed I/O Modules
- Selection guide: PLC Input and Output Modules Selection Guide
- Schneider Electric BMXEHC0800 Teknik Veri Föyü (PDF)
Schneider Electric BMXEHC0800 8 channel high-speed counter 16bit 2 inputs per channel. Technical specifications of this model: Resolution: 16bit
| Resolution | 16 bit |
|---|---|
| Series | Modicon M340 otomasyon platformu |
| Product Type | Sayaç modülü |
| Channel Count | 8 |
| Number of Inputs | 2 (tek mod); 3 (özel çift faz modu) |
| Input Compatibility | 19,2…30 V 2 telli/3 telli yakınlık sensörü; itme-çekme çıkışlarla artımlı enkoder, 10…30 V totem pole |
| Input Voltage Limits | 24 V DC |
| Input current | 4.5 mA |
| Electrical Connection | 1 konnektörile 20 pim |
| Current Consumption | 200 mA @ 3,3 V DC @ veriyolu; 80 mA @ 24 V DC @ sensör |
| Product Weight | 0.113 kg |
| Operating Ambient Temperature | 0…60 °C |
| Relative Humidity | 10…95 % yoğuşmasız |
| IP Rating | IP20 |
