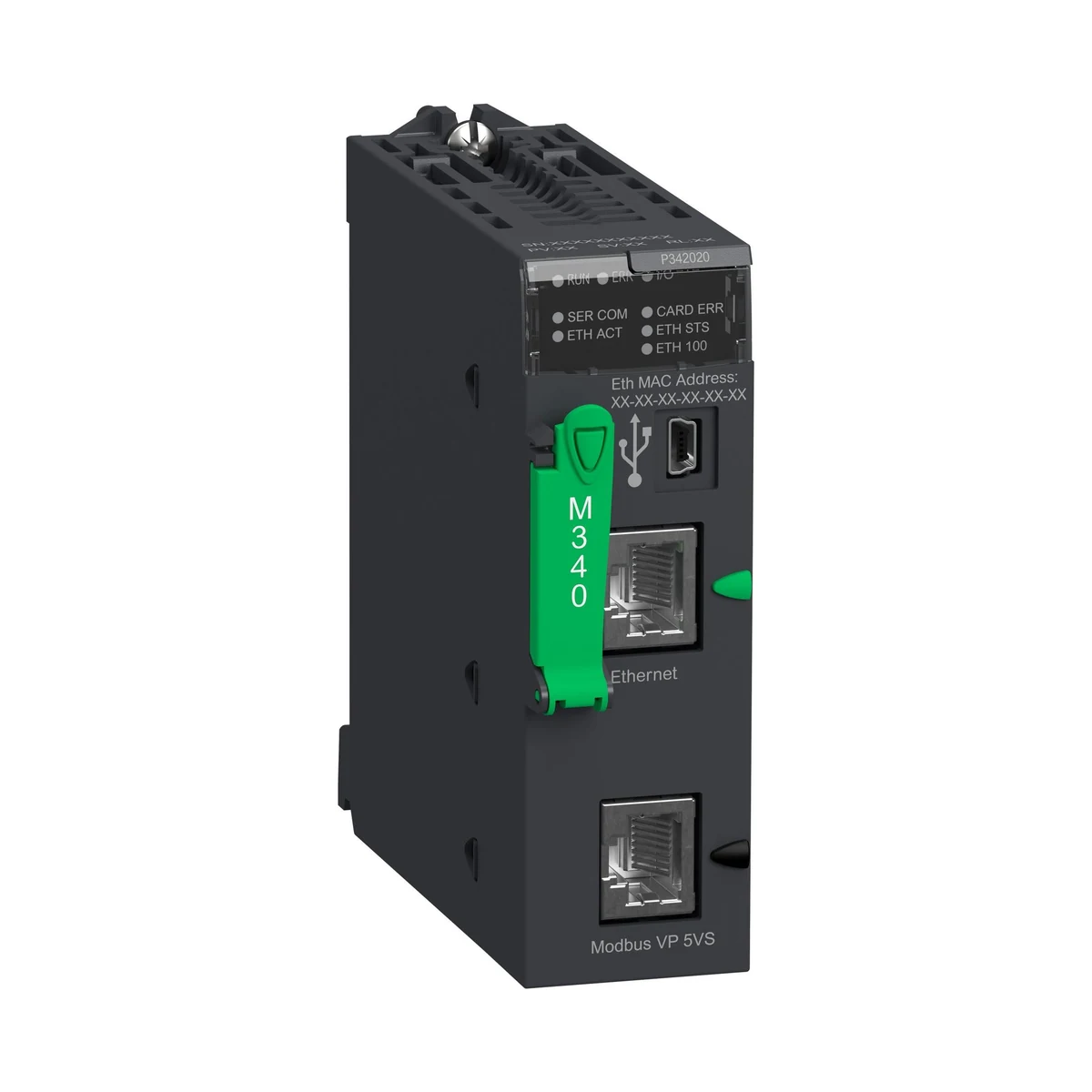

Schneider Electric BMXP342020 CPU340-20 Modbus Ethernet CPU
- Brand: Schneider Electric
- SKU: BMXP342020
- MPN: BMXP342020
- Price: 97855.47 TRY + VAT · incl. VAT 117426.56 TRY
- Availability: Made to order
- PLC CPUs
- Schneider Electric PLC CPUs
- Selection guide: PLC CPUs Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric BMXP342020 Teknik Veri Föyü (PDF)
Schneider Electric BMXP342020 CPU340-20 Modbus Ethernet CPU. Technical specifications of this model: Communication Protocol: Modbus
| Communication Protocol | Modbus |
|---|---|
| Series | Modicon M340 otomasyon platformu |
| Product Type | Işlemci modülü |
| Ethernet Port | 10BASE-T/100BASE-TX |
| Number of Addresses | 0…248 için karakter modu; 0…248 için Modbus |
| Current Consumption | 95 mA @ 24 V DC |
| Supply | Raf üzerinden dahili güç besleme |
| Conformity Markings | CE; UL; CSA; RCM; EAC; UKCA; China RoHS; WEEE; IEC |
| Product Weight | 0.205 kg |
| Operating Ambient Temperature | 0…60 °C |
| Relative Humidity | 5…95 % yoğuşmasız |
| IP Rating | IP20 |
| Standards | IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, arayüz tip 1 ve tip 2; EN/IEC 61850-3, konum G |
