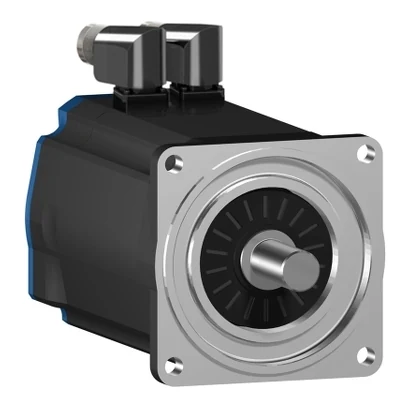

Schneider Electric BSH1002P11A2A BSH Servo Motor
- Brand: Schneider Electric
- SKU: BSH1002P11A2A
- MPN: BSH1002P11A2A
- Price: 109865.01 TRY + VAT · incl. VAT 131838.01 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BSH1002P11A2A Teknik Veri Föyü (PDF)
Schneider Electric BSH1002P11A2A BSH Servo Motor.
| Product Type | Servo motor |
|---|---|
| Maximum Mechanical Speed | 6000 rpm |
| Shaft End | Kilitli |
| IP Rating | IP50 standart |
| Speed Feedback Resolution | 131072 nokta/dönüş |
| Brake | None |
| Mounting Support | Uluslararası standart flanş |
| Electrical Connection | Döndürülebilir sağa açılı konnektörler |
| Compatible Series | Lexium 15; Lexium 32; Lexium 05 |
| Number of Phases | 3-Phase |
| Continuous Stall Current | 4.8 A |
| Maximum Continuous Current | 17.1 A |
| Switching Frequency | 8 kHz |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 19 mm |
| Shaft Length | 40 mm |
| Key Width | 30 mm |
| Feedback Type | Tek dönüşlü SinCos Hiperface |
| Motor Flange Size | 100 mm |
| Number of Motor Stacks | 2 |
| Torque Constant | 1,21 N.m/A @ 120 °C |
| Back EMF Constant | 77 V/krpm @ 120 °C |
| Number of Motor Poles | 4,0 |
| Rotor Inertia | 2,31 kg.cm² |
| Stator Resistance | 2,4 Ohm @ 20 °C |
| Stator Inductance | 6,75 mH @ 20 °C |
| Stator Electrical Time Constant | 5,29 ms @ 20 °C |
| Maximum Radial Force (Fr) | 620 N @ 4000 rpm; 690 N @ 3000 rpm; 790 N @ 2000 rpm; 990 N @ 1000 rpm |
| Maximum Axial Force (Fa) | 0,2 x Fr |
| Cooling Type | Doğal konveksiyon |
| Length | 204.5 mm |
| Mean Ring Diameter | 95 mm |
| Mean Ring Depth | 3.5 mm |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter | 9 mm |
| Mounting Hole Circle Diameter | 115 mm |
| Product Weight | 5.9 kg |
| Angular Accuracy Error | 1,4 ° |
| Hot Copper Temperature | 120 °C |
| Hot Magnet Temperature | 100 °C |
