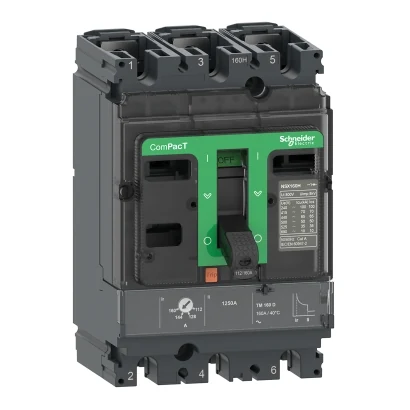

Schneider Electric C10V3TM100 NSX100 HB1 TM 100D 75kA 690V 3P
- Brand: Schneider Electric
- SKU: C10V3TM100
- MPN: C10V3TM100
- Price: 52374.92 TRY + VAT · incl. VAT 62849.90 TRY
- Availability: Made to order
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric C10V3TM100 Teknik Veri Föyü (PDF)
Schneider Electric C10V3TM100 NSX100 HB1 TM 100D 75kA 690V 3P. Technical specifications of this model: Short-Circuit Breaking Capacity: 75kA Pole arrangement: 3P
| Short-Circuit Breaking Capacity | 75 kA |
|---|---|
| Pole Arrangement | 3P |
| Series | ComPacT yeni nesil |
| Product Type | Circuit Breaker |
| Device Application | Distribution |
| Protected Pole Configuration | 3d |
| Rated Current (In) | 100 A @ 40 °C |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Suitable for Isolation | Yes (EN/IEC 60947-2) |
| Utilization Category | Category A |
| Release Type | TM-D |
| Trip Unit Technology | Termik Manyetik |
| Protection Functions | LI |
| Control Type | Feed-through |
| Mounting Type | Fixed |
| Rated Insulation Voltage (Ui) | 800 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 85 kA @ 500 V AC 50/60 Hz (IEC 60947-2); 80 kA @ 525 V AC 50/60 Hz (IEC 60947-2); 75 kA @ 660/690 V AC 50/60 Hz (IEC 60947-2) |
| Mechanical Endurance | 20000 cycles |
| Electrical Endurance | 20000 cycles @ 440 V In/2; 10000 cycles @ 440 V In; 10000 cycles @ 690 V In/2; 5000 cycles @ 690 V In |
| Power Loss per Pole | 8.8 W |
| Mounting Support | Backplate |
| Mounting Position | Yatay ve dikey; Sırtında düz |
| Top Connection | Front |
| Bottom Connection | Front |
| Connection Range | 35 mm |
| Trip Unit Rating | 100 A @ 40 °C |
| Long-Time Pick-up Adjustment Range (Ir) | 0,7…1 x In |
| Long-Time Delay Adjustment Type (tr) | Fixed |
| Instantaneous Pick-up Adjustment Type (Ii) | Fixed |
| Instantaneous Pick-up Adjustment Range (Ii) | 800 A |
| Earth Leakage Protection | None |
| Width | 105 mm |
| Height | 161 mm |
| Depth | 86 mm |
| Product Weight | 2.05 kg |
| Standards | EN/IEC 60947-2 |
| Overvoltage category | III |
